A piece of copper wire is formed into a single circular loop of radius 11 cm....

A piece of copper wire is formed into a single circular loop of radius 11 cm. A magnetic field is oriented parallel to the normal to the loop, and it increases from 0 to 0.65 T in a time of 0.36 s. The wire has a resistance per unit length of 3.1 x 10-2 /m. What is the average electrical energy dissipated in the resistance of the wire?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

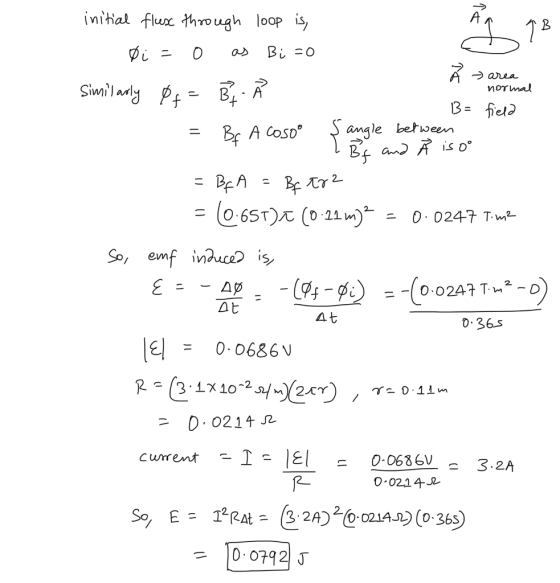

Find the initial and final flux and use Faraday’s law of electromagnetic induction to find the EMF. Find the resistance of the wire and use Ohm’s law to find the current and hence find the electrical energy as shown below

0 0
