A perfectly insulated cubical tank 0.8 m on each side contains liquid water at 18 C. ...

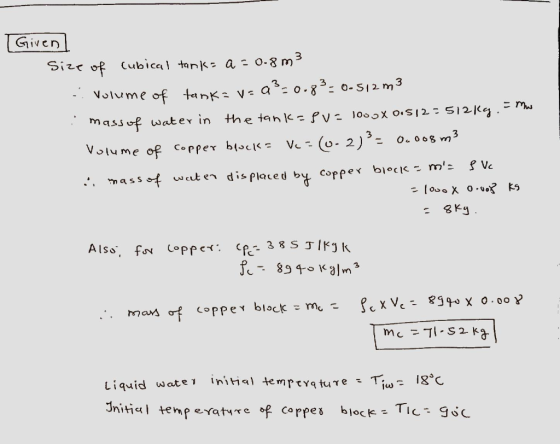

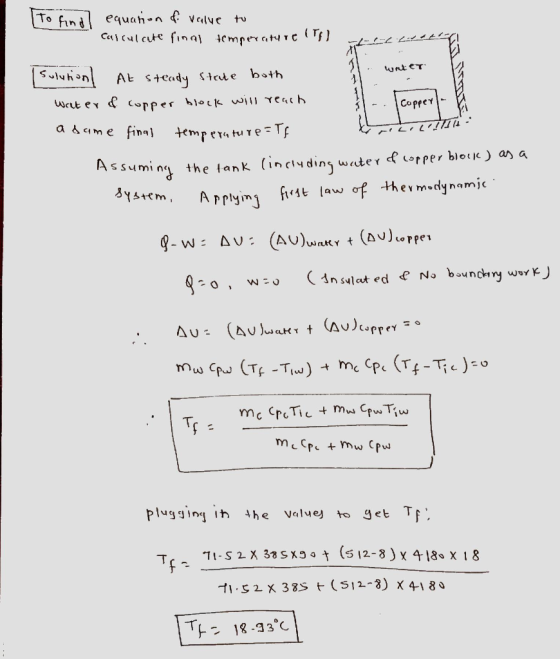

A perfectly insulated cubical tank 0.8 m on each side contains liquid water at 18 C. A cube of copper 0.2 m on each side with a temperature of 90 C is quickly plunged into the water displacing an amount of water equal to the volume of the copper block. A perfectly insulated lid is quickly placed on the top of the tank. Starting with basic equations, derive an equation which gives the final equilibrium temperature of the system, then plug in the relevant numbers to determine that temperature.
Homework Answers
Add Answer to:
A perfectly insulated cubical tank 0.8 m on each side
contains liquid water at 18 C. ...
A perfectly insulated cubical tank 0.8 m on each side contains liquid water at 18 C....
A perfectly insulated cubical tank 0.8 m on each side contains liquid water at 18 C. A cube of copper 0.2 m on each side with a temperature of 90 C is quickly plunged into the water displacing an amount of water equal to the volume of the copper block. A perfectly insulated lid is quickly placed on the top of the tank. Determine the final temperature of the block and the water after a long period of time.
A closed, insulated tank contains .15 kg of liquid water and has a .25 kg copper...
A closed, insulated tank contains .15 kg of liquid water and has a .25 kg copper base. The thin walls of the container have negligible mass. Initially, the tank and its contents are all at 30 degrees Celsius. A heating element embedded in the copper base is energized with an electrical current of 10 amps at 12 volts for 100 seconds. Determine the final temperature.
(1 point) A rigid, insulated 0.43 m tank initially contains saturated water liquid at 362 kPa....
(1 point) A rigid, insulated 0.43 m tank initially contains saturated water liquid at 362 kPa. The tank is connected to a steam pipe line carrying steam at 1.53 MPa and 305 °C through a valve. When the valve is opened, steam enters the tank from the pipe. When the valve is closed, the tank is filled with a saturated vapor with a pressure of 0.8 MPa. How much mass was added to the tank during this process?
Two large parallel plates with surface conditions approximating those of a blackbody are maintained at 800°C...
Two large parallel plates with surface conditions approximating those of a blackbody are maintained at 800°C and 100°C, respectively. Determine the rate of heal transfer by radiation between the plates in Wim and the radiative heat transfer coefficient in W/m K ) 12 Write down the one-dimensional sent heal conduction equation for a plane wall with constant thermal conductivity and heat generation in its simplest form, and indicate what each variable represents 13 Write down the one-dimensional transient heat conduction...
(1 point) A rigid, insulated 0.43 m tank initially contains saturated water liquid at 362 kPa. The tank is connected to a steam pipe line carrying steam at 1.53 MPa and 305 °C through a valve. When the valve is opened, steam enters the tank from the pipe. When the valve is closed, the tank is filled with a saturated vapor with a pressure of 0.8 MPa. How much mass was added to the tank during this process?
Two large parallel plates with surface conditions approximating those of a blackbody are maintained at 800°C and 100°C, respectively. Determine the rate of heal transfer by radiation between the plates in Wim and the radiative heat transfer coefficient in W/m K ) 12 Write down the one-dimensional sent heal conduction equation for a plane wall with constant thermal conductivity and heat generation in its simplest form, and indicate what each variable represents 13 Write down the one-dimensional transient heat conduction...
