I was having trouble figuring out this problem. I used the loop method, but I got...
I was having trouble figuring out this problem. I used the loop method, but I got 5.67 A instead of -57.0 A for Current #1, which is the correct answer.
-

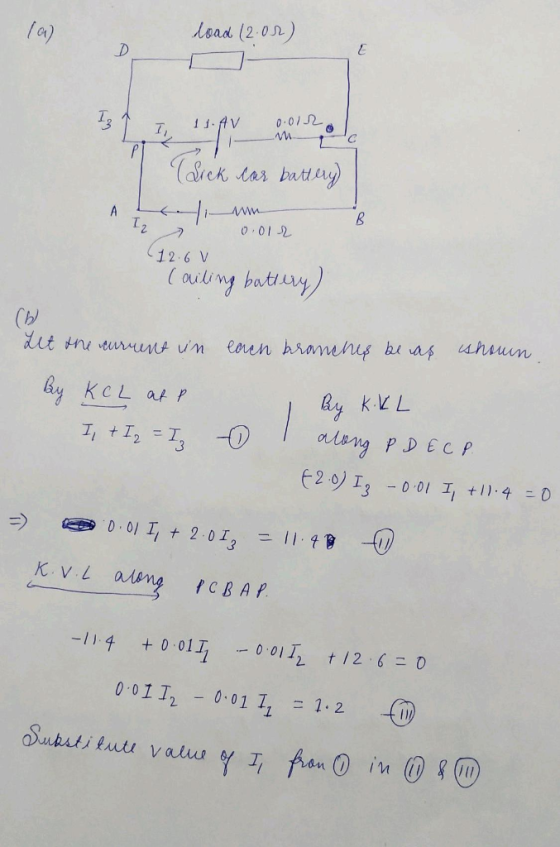

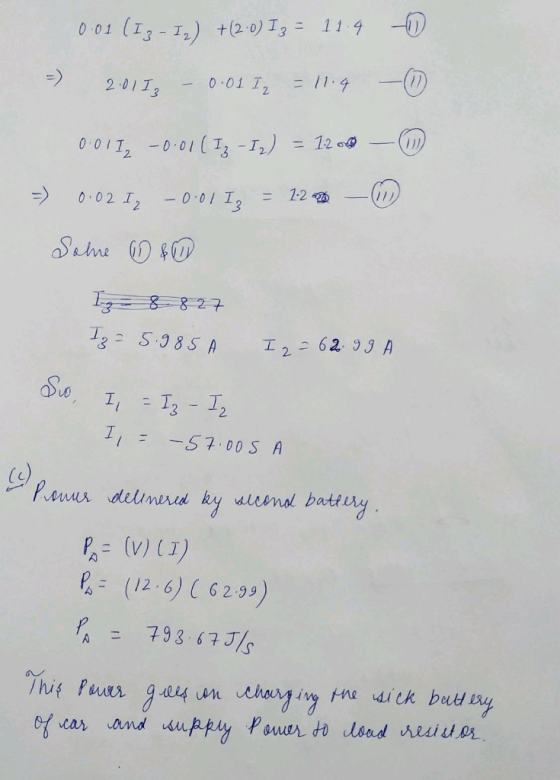

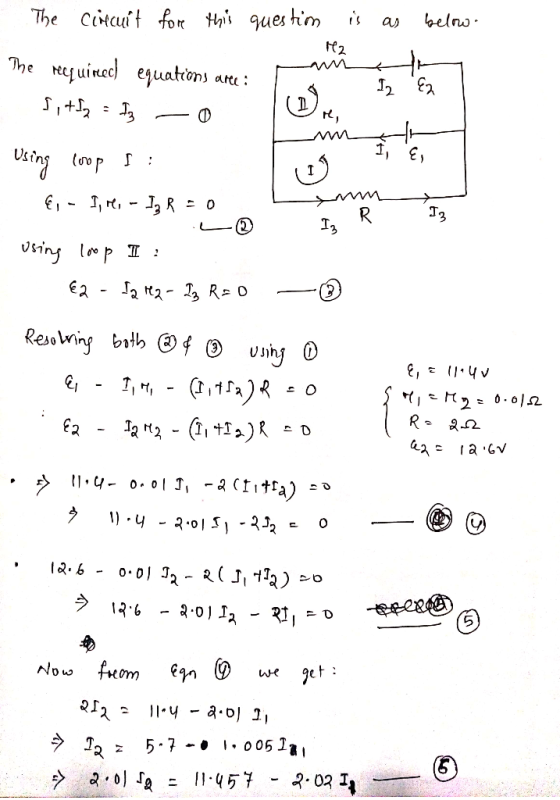

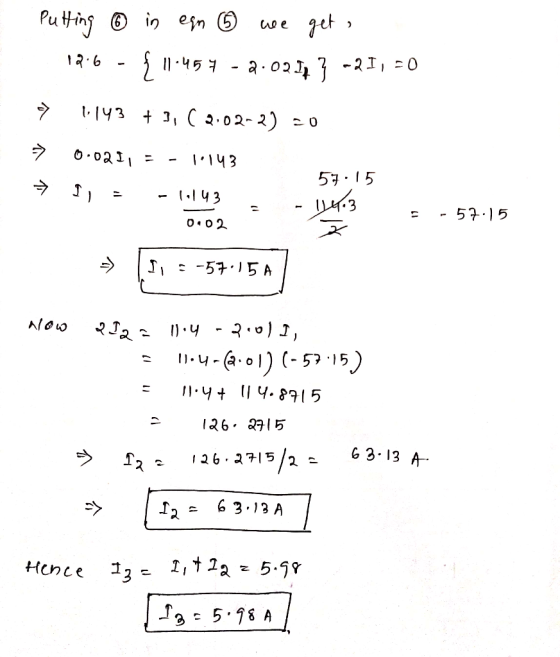

A sick car battery with an emf of 11.4 V and an internal resistance of 0.01 Ω is connected to a load of 2.0 Ω. To help the ailing battery, a second battery with an emf of 12.6 V and an internal resistance of 0.01 Ω is connected by jumper cables to the terminals of the first battery. (a) Draw a diagram of this circuit. (b) Find the current in each part of the circuit. (c) Find the power delivered by the second battery and discuss where this power goes, assuming that the emfs and internal resistances of both batteries remain constant.
Homework Answers
Add Answer to:
I was having trouble figuring out this problem. I used the loop
method, but I got...
An old car battery that has an emf of elementof_1 = 11.6 V and an internal...
An old car battery that has an emf of elementof_1 = 11.6 V and an internal resistance of 40.0 mohm is connected to an R = 2.00 ohm resistor. In an attempt to recharge the battery, you connect a second battery that has an emf of elementof_2 = 12.6 V and an internal resistance of 10.0 mohm in parallel with the first battery and the resistor with a pair of jumper cables. Draw a diagram of the circuit. Choose File...
1)A battery having an e.m.f. of 105 V and an internal resistance of 1 Ω is...
1)A battery having an e.m.f. of 105 V and an internal resistance of 1 Ω is connected in parallel with a d.c. generator of e.m.f. 110 V and internal resistance of 0.5 Ω to supply a load having a resistance of 8 Ω. Calculate: (a) the currents in the battery, the generator and the load; (b) the potential difference across the load. 1)b.Two batteries are connected in parallel. The e.m.f. and internal resistance of one battery are 120 V and...
