In the three-way handshake that initiates a TCP connection, the SYN request has sequence number 1453405...

In the three-way handshake that initiates a TCP connection, the SYN request has sequence number 1453405 and the SYN-ACK reply has sequence number 2173207. [a] What is the acknowledge number for the SYN-ACK packet from the Server? [b] What is the acknowledge number for the ACK packet from the Client?

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

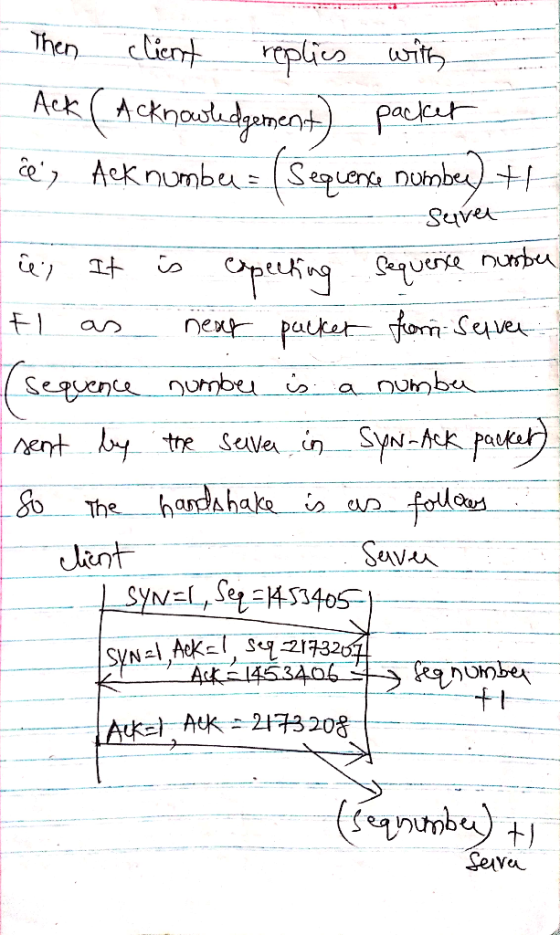

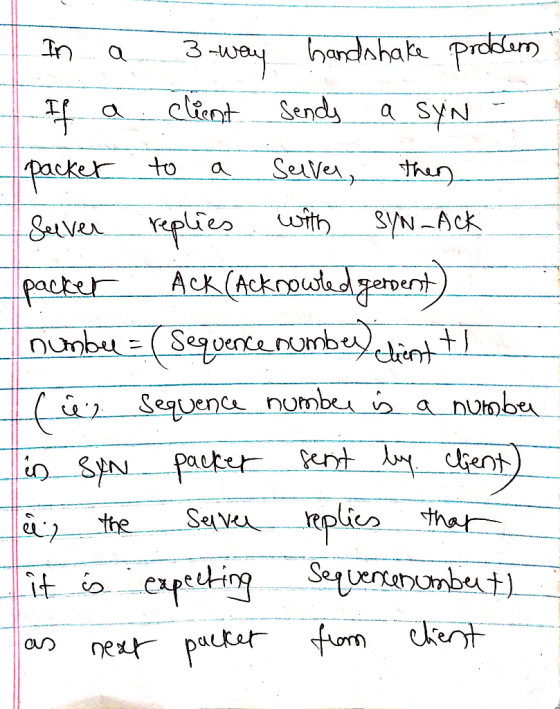

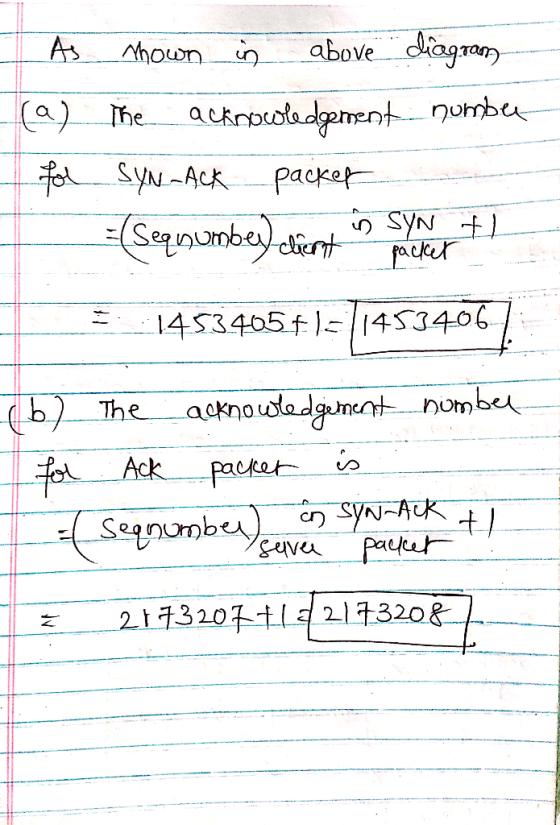

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
In the three-way handshake that initiates a TCP connection, the SYN request has sequence number 1453405...
