What is the pressure change in water going from a 3.2- cm-diameter pipe to a 1.5- cm-diameter pipe if the velocity in the smaller pipe is 7.5 m/s?

science physics

Answer 1

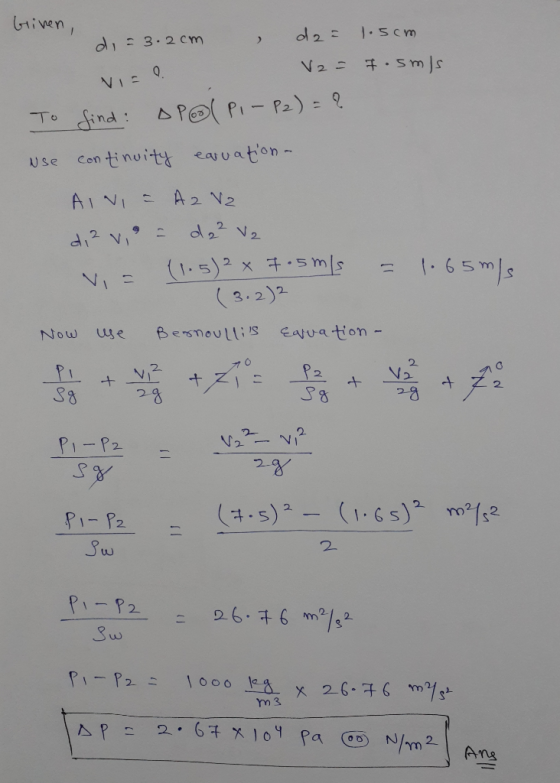

Answer #1

Answer 2
