Question

This lab will exercise your understanding of some of the concepts covered in Chapter 10:
classes, default constructors, overloaded constructors, arrays of classes

A Roman numeral represents an integer using letters. Examples are XVII to represent 17,
MCMLIII for 1953, and MMMCCCIII for 3303. By contrast, ordinary numbers such as 17 or 1953
are called Arabic numerals. The following table shows the Arabic equivalent of all
the single-letter Roman numerals:

M 1000 X 10
D 500 V 5
C 100 I 1
L 50

When letters are strung together, the values of the letters are just added,
with the following exception. When a letter of smaller value is followed by
a letter of larger value, the smaller value is subtracted from the larger value.
For example, IV represents 5 - 1, or 4.

MCMXCV is interpreted as M + CM + XC + V, or 1000 + (1000 - 100) + (100 - 10) + 5,
which is 1995. In standard Roman numerals, no more than thee consecutive copies of
the same letter are used. Following these rules, every number between 1 and 3999
can be represented as a Roman numeral made up of the following one- and two-letter combinations:

M 1000 X 10
CM 900 IX 9
D 500 V 5
CD 400 IV 4
C 100 I 1
XC 90
L 50
XL 40

1. Write a class to represent Roman numerals.

a. The class should have two constructors.:

(1) A default constructor

(2) A constructor that takes a string as a paramter (i.e., string representing a roman numeral)

b. This class should have the following member functions, in addition to the above constructors:

(1) set - sets the member variable to the values in the function parameter

(2) print - print the converted integer value

(3) convert the roman number string to a positive integer

(4) print the roman number string

c. This class should have two PRIVATE member variables:

(1) string to hold the roman numeral string

(2) integer to hold the converted value

3. Create:

a. a class definition file (*.h)

b. a class implementation file (*.cpp)

c. a client program to test your class (*.cpp)

d. a project for these code files


4. The client program should:

a. create a roman numeral object using the default constructor

b. convert the roman number to the integer equivalent

c. output (cout) the roman number entered and the equivalent integer value

d. create a roman numeral object using the overloaded constructor

e. convert the roman number to the integer equivalent

f. output (cout) the roman number entered and the equivalent integer value

g. create an array of the roman class of size 3

h. read, from the console, three roman numerals into the array, in a loop

i. convert each array component into the equivalent integer value, in a separate loop

j. output (cout) the roman number entered and the equivalent integer value for each component of the array.
May be in the conversion loop.

For this program, enter only valid roman numerals that convert to integers less than or equal to 3999

Test with the values MCXIV, CCCLIX, MDCLXVI


Answer 1

Program Files:

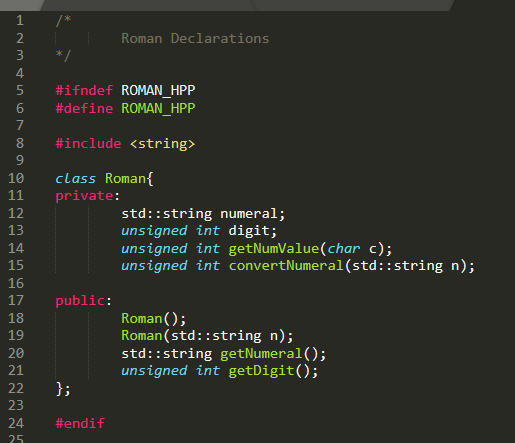

roman.hpp

/*

Roman Declarations

*/

#ifndef ROMAN_HPP

#define ROMAN_HPP

#include <string>

class Roman{

private:

std::string numeral;

unsigned int digit;

unsigned int getNumValue(char c);

unsigned int convertNumeral(std::string n);

public:

Roman();

Roman(std::string n);

std::string getNumeral();

unsigned int getDigit();

};

#endif

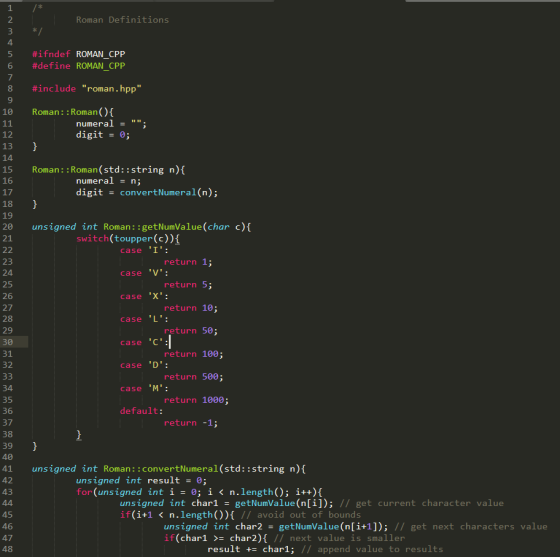

roman.cpp

/*
Roman Definitions
*/

#ifndef ROMAN_CPP
#define ROMAN_CPP

#include "roman.hpp"

Roman::Roman(){
numeral = "";
digit = 0;
}

Roman::Roman(std::string n){
numeral = n;
digit = convertNumeral(n);
}

unsigned int Roman::getNumValue(char c){
switch(toupper(c)){
case 'I':
return 1;
case 'V':
return 5;
case 'X':
return 10;
case 'L':
return 50;
case 'C':
return 100;
case 'D':
return 500;
case 'M':
return 1000;
default:
return -1;
}
}

unsigned int Roman::convertNumeral(std::string n){
unsigned int result = 0;
for(unsigned int i = 0; i < n.length(); i++){
unsigned int char1 = getNumValue(n[i]); // get current character value
if(i+1 < n.length()){ // avoid out of bounds
unsigned int char2 = getNumValue(n[i+1]); // get next characters value
if(char1 >= char2){ // next value is smaller
result += char1; // append value to results
} else { // next value smaller
result += (char2-char1); // subtract first value from second
i++; // skip next char. case: IV == 4
}
} else { // last character reached
result += char1;
i++;
}
}
return result;
}

std::string Roman::getNumeral(){
return numeral;
}

unsigned int Roman::getDigit(){
return digit;
}

#endif

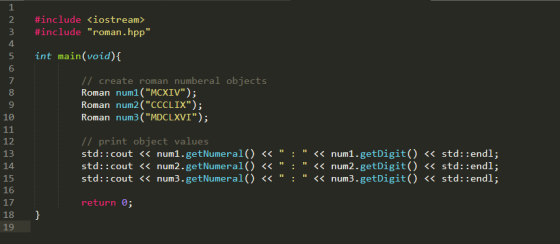

main.cpp

#include <iostream>
#include "roman.hpp"

int main(void){

// create roman numberal objects
Roman num1("MCXIV");
Roman num2("CCCLIX");
Roman num3("MDCLXVI");

// print object values
std::cout << num1.getNumeral() << " : " << num1.getDigit() << std::endl;
std::cout << num2.getNumeral() << " : " << num2.getDigit() << std::endl;
std::cout << num3.getNumeral() << " : " << num3.getDigit() << std::endl;

return 0;
}

output:

MCXIV : 1114
CCCLIX : 359
MDCLXVI : 1666

Hope this helps!

Please let me know if any changes needed
