Compute the diffusion coefficient of Mg in Al at 773K. Refer to Table 5.2 for values...

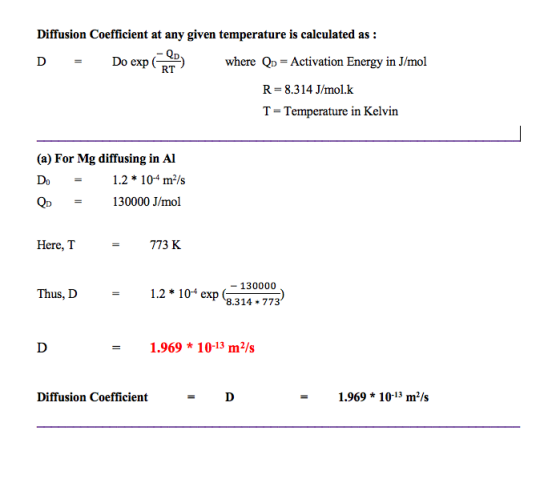

Compute the diffusion coefficient of Mg in Al at 773K. Refer to Table 5.2 for values of Do (pre-exponential factor) and Qd (activation energy).
Homework Answers
Add Answer to:
Compute the diffusion coefficient of Mg in Al at 773K. Refer to
Table 5.2 for values...
Below is shown a of the diffusion coefficient of gold in silver vs. reciprocal temperature. (Note...
Below is shown a of the diffusion coefficient of gold in silver vs. reciprocal temperature. (Note that the ordinate is a logarithmic scale.). Determine the values for the pre-exponential and for the activation energy for the gold in silver system.
Help Hayden Lee (080481087) Clcse Remaining Time: 13.31:35 The diffusion coefficient of hydrogen in a particular al...
Help Hayden Lee (080481087) Clcse Remaining Time: 13.31:35 The diffusion coefficient of hydrogen in a particular alloy at 1,800°C is 6.025x1016m2is. The activation energy for diffusion of hydrogen in the alloy is 220 klmol. Find the temperature-independent pre-exponential D, for hydrogen in the alloy. Remember the gas constant is 831motK O 6.8E-10 m is O 2.1E-10 m2/s O 9.7E-10 mis O 3.8E-10 m2Is
The graph below shows the diffusion coefficient as a function of reciprocal temperature for several metals...
The graph below shows the diffusion coefficient as a function of reciprocal temperature for several metals in silicon. Calculate the activation energy for each metal in Silicon Temperature (C) Cu in' Si Au in Si Ag in Si 1200 1000 900 800 700 600 500 400 10-12 4 x 10-13 2.5 x 10-15 4.2 x 10-17 10-14 10-16 Al in Si a» 10-18 E 10-20 12.5-10-21 10-22 0.6 0.8 1.0 1.2 1.4 Reciprocal temperature (1000/K) Logarithm of D-versus-1/T (K) curves...
5. It is believed that interstitial diffusion is faster than vacancy diffusion. Can you show this...
5. It is believed that interstitial diffusion is faster than vacancy diffusion. Can you show this by comparing the values of diffusion coefficients of a pair of cases (one values for each type of diffusion) from Table 5.2.. -(5 points) Diffusing Species Q. (J/mol) с 87,400 148,000 77,000 168,000 Nº N° Feº Fe Cud Alº Mg Znº Mod Host Metal D, (m/s) Interstitial Diffusion Fe (1 or BCC) 1.1 x 10-6 Fe (I or FCC) 2.3 * 105 Fe (...
Variation of the rate constant with temperature for the first-order reaction 2N2(g) + O(g) → 2N2O4(g)...
Variation of the rate constant with temperature for the first-order reaction 2N2(g) + O(g) → 2N2O4(g) is given in the following table. Determine the activation energy and pre-exponential factor for the reaction. What would be the rate constant at 350 K? Temperature / K Rate Constant / s-1 273 7.87 x 103 298 3.46 x 105 318 4.98 x 106 338 4.87 x 107 What is the activation energy in kJ/mol? Do not enter the units with your answer. What...
The rate of a certain reaction was studied at various temperatures. The table shows temperature (T)...
The rate of a certain reaction was studied at various
temperatures. The table shows temperature (T) and rate constant (k)
data collected during the experiments. Plot the data, and then
answer the following questions.
What is value of the activation energy, Ea, for this
reaction?
What is the value of the pre-exponential factor (sometimes
called the frequency factor), A, for this reaction?
The diffusion coefficient for Ca2+ 1n CaO is 10-20 m2/s at 850°C and 10-13 m2/s at...
The diffusion coefficient for Ca2+ 1n CaO is 10-20 m2/s at 850°C and 10-13 m2/s at 2090°C. The gas constant is R-8314 J/(mol-K) 1. Calculate the activation energy (Express your answer to three significant figures.) Q = ( ) kJ/mol 2. Calculate the constant Do. (Express your answer to three significant figures.) m2/s
UTVER VIS Concentration of Nitrogen (wt%): = 0.21 Position in mm= 7.2 Diffusion Coefficient for Nitrogen...
UTVER VIS Concentration of Nitrogen (wt%): = 0.21 Position in mm= 7.2 Diffusion Coefficient for Nitrogen in Iron at 700°C -8.90E-10 Nitrogen in Iron Heat Treatment Time (hours): = 8 Carburizing Time (hrs): = 7 Steel Alloy Case Depth (mm): 4.8 Steel Alloy New Case Depth (mm) - 9.9 Activation Energy kJ/mol: = 103 Temperature for Problem 3 (Celsius) -809 . Data for Problem 4 Temperature in C: -595 Diffusivity (m2/s) = 5.62E-14 Temperature in C: -702 Diffusivity (m /s)...
Refer to the Ksp values in Table 17.2 to calculate the molar solubility of each compound...
Refer to the Ksp values in Table 17.2 to calculate the molar solubility of each compound in pure water. AgBr Mg(OH)2Mg(OH)2 CaF2
The rate of a certain reaction was studied at various temperatures. The table shows temperature (?)...
The rate of a certain reaction was studied at various temperatures. The table shows temperature (?) and rate constant (?) data collected during the experiments. Plot the data to answer the questions. What is the value of the activation energy, ?a , for this reaction? ? (?) ? (?−1) (400, 0.0000173) (420, 0.000127) (440, 0.000773) (460, 0.00403) (480, 0.0183) (500, 0.0738) (520, 0.267) (540, 0.879) (560, 2.66) (580, 7.43) ?a= ______ . kJ⋅mol−1 What is the value of the pre‑exponential...
Below is shown a of the diffusion coefficient of gold in silver vs. reciprocal temperature. (Note that the ordinate is a logarithmic scale.). Determine the values for the pre-exponential and for the activation energy for the gold in silver system.
Help Hayden Lee (080481087) Clcse Remaining Time: 13.31:35 The diffusion coefficient of hydrogen in a particular alloy at 1,800°C is 6.025x1016m2is. The activation energy for diffusion of hydrogen in the alloy is 220 klmol. Find the temperature-independent pre-exponential D, for hydrogen in the alloy. Remember the gas constant is 831motK O 6.8E-10 m is O 2.1E-10 m2/s O 9.7E-10 mis O 3.8E-10 m2Is
The graph below shows the diffusion coefficient as a function of reciprocal temperature for several metals in silicon. Calculate the activation energy for each metal in Silicon Temperature (C) Cu in' Si Au in Si Ag in Si 1200 1000 900 800 700 600 500 400 10-12 4 x 10-13 2.5 x 10-15 4.2 x 10-17 10-14 10-16 Al in Si a» 10-18 E 10-20 12.5-10-21 10-22 0.6 0.8 1.0 1.2 1.4 Reciprocal temperature (1000/K) Logarithm of D-versus-1/T (K) curves...
5. It is believed that interstitial diffusion is faster than vacancy diffusion. Can you show this by comparing the values of diffusion coefficients of a pair of cases (one values for each type of diffusion) from Table 5.2.. -(5 points) Diffusing Species Q. (J/mol) с 87,400 148,000 77,000 168,000 Nº N° Feº Fe Cud Alº Mg Znº Mod Host Metal D, (m/s) Interstitial Diffusion Fe (1 or BCC) 1.1 x 10-6 Fe (I or FCC) 2.3 * 105 Fe (...
The rate of a certain reaction was studied at various
temperatures. The table shows temperature (T) and rate constant (k)
data collected during the experiments. Plot the data, and then
answer the following questions.
What is value of the activation energy, Ea, for this
reaction?
What is the value of the pre-exponential factor (sometimes
called the frequency factor), A, for this reaction?
The diffusion coefficient for Ca2+ 1n CaO is 10-20 m2/s at 850°C and 10-13 m2/s at 2090°C. The gas constant is R-8314 J/(mol-K) 1. Calculate the activation energy (Express your answer to three significant figures.) Q = ( ) kJ/mol 2. Calculate the constant Do. (Express your answer to three significant figures.) m2/s
UTVER VIS Concentration of Nitrogen (wt%): = 0.21 Position in mm= 7.2 Diffusion Coefficient for Nitrogen in Iron at 700°C -8.90E-10 Nitrogen in Iron Heat Treatment Time (hours): = 8 Carburizing Time (hrs): = 7 Steel Alloy Case Depth (mm): 4.8 Steel Alloy New Case Depth (mm) - 9.9 Activation Energy kJ/mol: = 103 Temperature for Problem 3 (Celsius) -809 . Data for Problem 4 Temperature in C: -595 Diffusivity (m2/s) = 5.62E-14 Temperature in C: -702 Diffusivity (m /s)...
