A 27.6 cm -diameter coil consists of 28 turns of circular copper wire 2.8 mm in...
A 27.6 cm -diameter coil consists of 28 turns of circular copper wire 2.8 mm in diameter. A uniform magnetic field, perpendicular to the plane of the coil, changes at a rate of 7.10×10−3 T/s .
A) Determine the current in the loop.
B) Determine the rate at which thermal energy is produced.

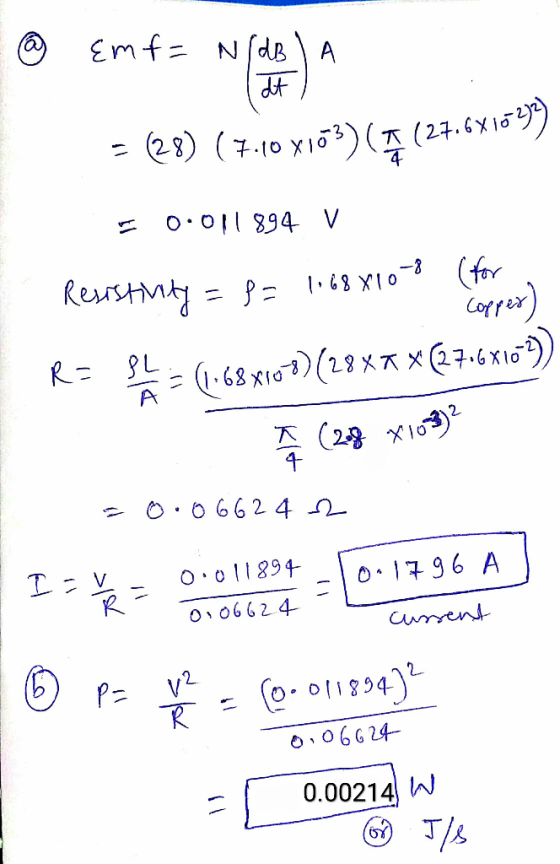

Homework Answers
Dear student. feel Free to ask doubts in comment(give me a try before downvoting). Trust me ! I'll surely respond quickly and clear your doubt.
Hope you give thumbs up.
Thanks!
