Chapter 26, Problem 021 A common flashlight bulb is rated at 0.23 A and 4.0 V...

Chapter 26, Problem 021

A common flashlight bulb is rated at 0.23 A and 4.0 V (the values of the current and voltage under operating conditions). If the resistance of the bulb filament at room temperature (20°C) is 0.98 Ω, what is the temperature of the filament when the bulb is on? The temperature coefficient of resistivity is 4.4 × 10-3 K-1 for the filament material.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

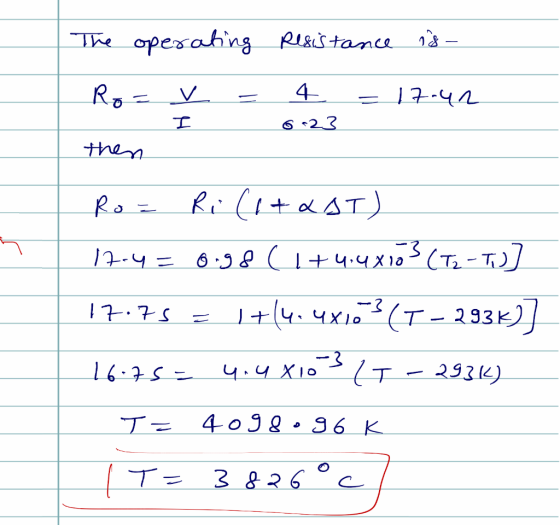

The temperature of flash light

0 0
Add a comment
