A tensile test uses a test specimen that has a gage length of 50 mm and...

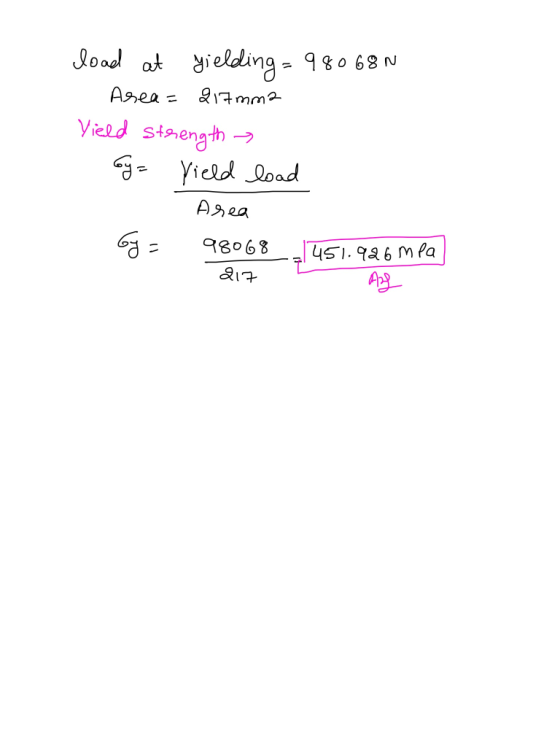

A tensile test uses a test specimen that has a gage length of 50 mm and an area = 217 mm2. During the test, the specimen yields under a load of 98,068 N. The corresponding gage length = 50.32 mm - this is at the 0.2 percent yield point. The maximum load of 165,736 N is reached at a gage length = 63 mm. If fracture occurs at a gage length of 67 mm, determine the yield strength in MPa.
Homework Answers
