An airplane propeller is 1.3 m in length (from tip to tip) and has a mass...

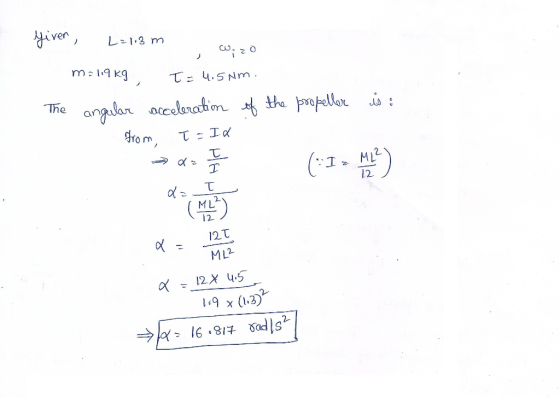

An airplane propeller is 1.3 m in length (from tip to tip) and has a mass of 1.9 kg . When the airplane's engine is first started, it applies a constant torque of 4.5 N⋅m to the propeller, which starts from rest. What is the angular acceleration of the propeller? Treat the propeller as a slender rod. The unit of the angular acceleration is rad/s2
Homework Answers
Add Answer to:
An airplane propeller is 1.3 m in length (from tip to tip) and
has a mass...
