Given that the following hexadecimal values stored in the registers: $s1 = 44444444 $s2 = 22222222...

Given that the following hexadecimal values stored in the registers:

$s1 = 44444444

$s2 = 22222222

$s3 = 55555555

what will the contents of register $t0 be after this instructions are executed?

add $t1, $s1, $s2

slt $t0, $t1, $s3

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

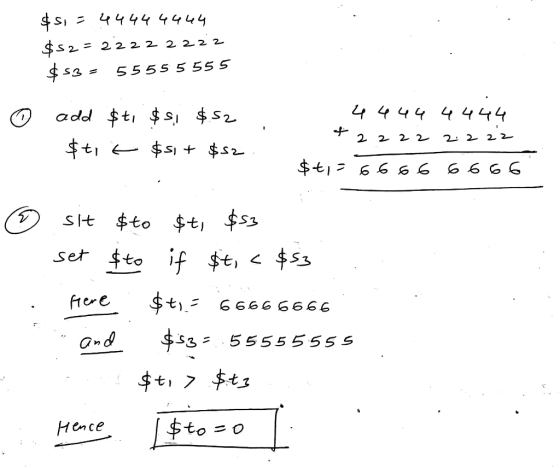

Answer #1

0 0
Add a comment
