The coil of the electric motor shown in (Figure 1) has 100 turns and an area...
The coil of the electric motor shown in (Figure 1) has 100 turns and an area of 0.015 m2. Its rotation axis is attached to a pulley with a radius of 3.5 cm. At the moment shown, the plane of the coil is parallel to the 0.39 T magnetic field.

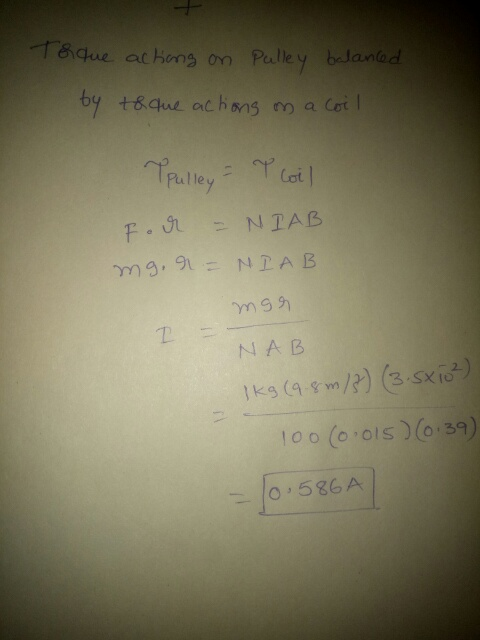

A)What current in the coil will hold the 1.0 kg weight in equilibrium?
Homework Answers
Add Answer to:
The coil of the electric motor shown in (Figure 1) has 100 turns
and an area...
A square coil of 500 turns and an area of 400 cm^2 is mounted on a...
A square coil of 500 turns and an area of 400 cm^2 is mounted on a rotating frame, which turns at a rate of 30 rad/s in the presence of a 2T uniform magnetic field that is perpendicular to the axis of rotation. What is the instantaneous emf in the coil at the moment that the normal to its plane is perpendicular to the field?
The rotor in a certain electric motor is a flat, rectangular coil with 89 turns of...
The rotor in a certain electric motor is a flat, rectangular coil with 89 turns of wire and dimensions 2.41 cm by 4.04 cm. The rotor rotates in a uniform magnetic field of 0.800 T. When the plane of the rotor is perpendicular to the direction of the magnetic field, the rotor carries a current of 10.9 mA. In this orientation, the magnetic moment of the rotor is directed opposite the magnetic field. The rotor then turns through one-half revolution....
A flat coil enclosing an area of 0.29 m2 is rotating at 56 rev/s, with its...
A flat coil enclosing an area of 0.29 m2 is rotating at 56 rev/s, with its axis of rotation perpendicular to a 0.23 T magnetic field. (a) If there are 1030 turns on the coil, what is the maximum voltage induced in the coil? V (b) When the maximum induced voltage occurs, what is the orientation of the coil with respect to the magnetic field? The plane of the coil is at a 56° angle to the magnetic field.The plane...
A flat coil enclosing an area of 0.18 m2 is rotating at 65 rev/s, with its...
A flat coil enclosing an area of 0.18 m2 is rotating at 65 rev/s, with its axis of rotation perpendicular to a 0.22 T magnetic field. 1. If there are 1075 turns on the coil, what is the maximum voltage induced in the coil? 2. When the maximum induced voltage occurs, what is the orientation of the coil with respect to the magnetic field? a. The plane of the coil is perpendicular to the magnetic field. b. The plane of...
answer both for good rating A square coil of wire of side 2.50 cm is placed...
answer both for good rating
A square coil of wire of side 2.50 cm is placed in a uniform magnetic field of magnitude 1.50 T directed into the page as in the figure shown below. The coil has 35.0 turns and a resistance of 0.780 2. If the coil is rotated through an angle of 90.0° about the horizontal axis shown in 0.335 s, find the following. Rotation axis X X X X X X X X (a) the magnitude...
An eight-turn coil encloses an elliptical area having a major axis of 40.0 cm and a...
An eight-turn coil encloses an elliptical area having a major axis of 40.0 cm and a minor axis of 30.0 cm (see figure). The coll lies in the plane of the page and has a 5.77-A current flowing clockwise around it. If the coil is in a uniform magnetic field of 1.91 x 10" T directed toward the left of the page, what is the magnitude of the torque on the coil? Hint: The area of an ellipse is A...
4. A 500-turn circular coil with an area of 0.050 0 m2 is mounted on a...
4. A 500-turn circular coil with an area of 0.050 0 m2 is mounted on a rotating frame, which turns at a rate of 20.0 rad/s in the presence of a 0.050-T uniform magnetic field that is perpendicular to the axis of rotation. What is the instantaneous emf in the coil at the moment that the normal to its plane is at a 90.0 angle to the field? a. zero b. 12.5 V c. 21.6 V d. 25.0 V
DQuestion 21 1 pts 53.13 2 Figure F3 Current-carrying square coil in magnetic field A square...
DQuestion 21 1 pts 53.13 2 Figure F3 Current-carrying square coil in magnetic field A square coil has N-40 turns of copper wire, each of side a-5.0 cm. The current in the coil is 1-4.0 A. The coil is placed in a uniform magnetic field B-16 T as shown in Figure F3. The plane of the coil makes an angle of 53.13 with the magnetic field. The coil is free to rotate about the y axis. Calculate the area of...
Aflat coil having 100 turns, each with an area of 0.20 m2, is placed with the...
Aflat coil having 100 turns, each with an area of 0.20 m2, is placed with the plane of its area perpendicular to a magnetic field. The magnetic field changes uniformly from 0.50 Tin the ty direction to 0.50 T in the -y direction in 2.0 s. If the resistance of the coil is 4,022, at what rate is power generated in the coil during this change? 25 W 20W 15 W 10 W
A coil has N turns enclosing an area of A. In a physics laboratory experiment, the...
A coil has N turns enclosing an area of A. In a physics laboratory experiment, the coil is rotated during the time interval Δt from a position in which the plane of each turn is perpendicular to Earth's magnetic field to one in which the plane of each turn is parallel to the field. The magnitude of Earth's magnetic field at the lab location is B. What is the magnitude of the average emf induced in the entire coil?
The rotor in a certain electric motor is a flat, rectangular coil with 89 turns of wire and dimensions 2.41 cm by 4.04 cm. The rotor rotates in a uniform magnetic field of 0.800 T. When the plane of the rotor is perpendicular to the direction of the magnetic field, the rotor carries a current of 10.9 mA. In this orientation, the magnetic moment of the rotor is directed opposite the magnetic field. The rotor then turns through one-half revolution....
answer both for good rating
A square coil of wire of side 2.50 cm is placed in a uniform magnetic field of magnitude 1.50 T directed into the page as in the figure shown below. The coil has 35.0 turns and a resistance of 0.780 2. If the coil is rotated through an angle of 90.0° about the horizontal axis shown in 0.335 s, find the following. Rotation axis X X X X X X X X (a) the magnitude...
An eight-turn coil encloses an elliptical area having a major axis of 40.0 cm and a minor axis of 30.0 cm (see figure). The coll lies in the plane of the page and has a 5.77-A current flowing clockwise around it. If the coil is in a uniform magnetic field of 1.91 x 10" T directed toward the left of the page, what is the magnitude of the torque on the coil? Hint: The area of an ellipse is A...
4. A 500-turn circular coil with an area of 0.050 0 m2 is mounted on a rotating frame, which turns at a rate of 20.0 rad/s in the presence of a 0.050-T uniform magnetic field that is perpendicular to the axis of rotation. What is the instantaneous emf in the coil at the moment that the normal to its plane is at a 90.0 angle to the field? a. zero b. 12.5 V c. 21.6 V d. 25.0 V
DQuestion 21 1 pts 53.13 2 Figure F3 Current-carrying square coil in magnetic field A square coil has N-40 turns of copper wire, each of side a-5.0 cm. The current in the coil is 1-4.0 A. The coil is placed in a uniform magnetic field B-16 T as shown in Figure F3. The plane of the coil makes an angle of 53.13 with the magnetic field. The coil is free to rotate about the y axis. Calculate the area of...
Aflat coil having 100 turns, each with an area of 0.20 m2, is placed with the plane of its area perpendicular to a magnetic field. The magnetic field changes uniformly from 0.50 Tin the ty direction to 0.50 T in the -y direction in 2.0 s. If the resistance of the coil is 4,022, at what rate is power generated in the coil during this change? 25 W 20W 15 W 10 W
