The ECCS pump in a reactor draws water from the suppression pool, at atmospheric pressure and...
The ECCS pump in a reactor draws water from the suppression pool, at atmospheric pressure and pumps water through the low-pressure injection system into the reactor pressure vessel 15 m above the suppression pool at a pressure of 4 MPa. The pipe is 8 inches in diameter. The entrance can be considered reentrant. The total length of stainless steel pipe is 45 m, and there are 6 elbows with r/D of 4. A check valve with a loss coefficient K = 32 prevents backflow.
(a) Find the pump head (in meters) required to overcome head losses if the desired flow rate is 2400 L/min.
(b) Find the hydraulic power supplied by the pump to the fluid.
(c) If the pump efficiency is 85%, find the input power necessary for the pump.

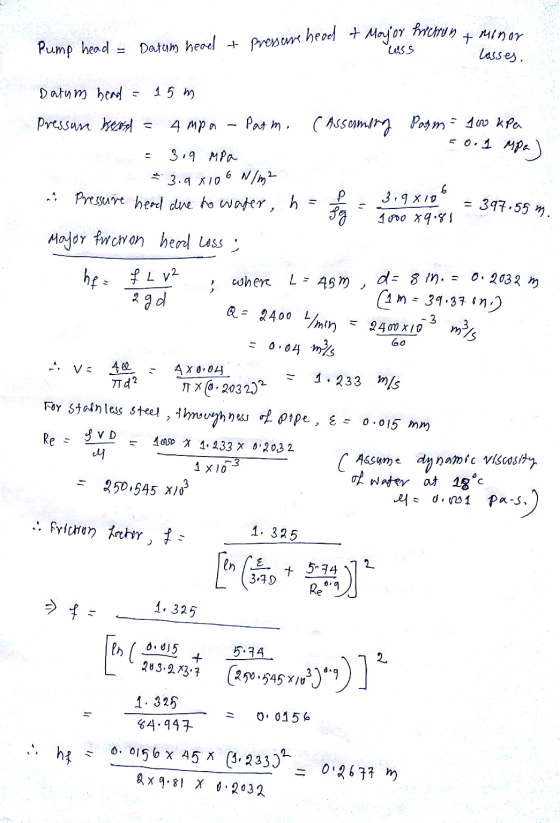

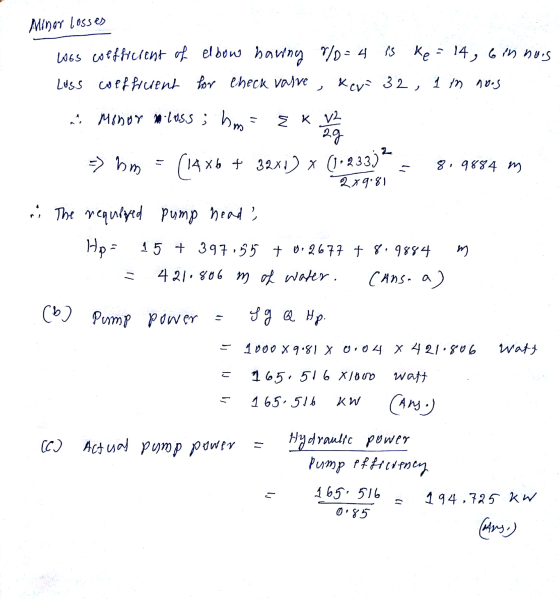

can someone show me a clear step by step process to solve this problem.
Homework Answers
Add Answer to:
The ECCS pump in a reactor draws water from the
suppression pool, at atmospheric pressure and...
what is the velocity head at the inlet pump? Find the value of head loss (consider...
what is the velocity head at the inlet pump?
Find the value of head loss (consider entrance, friction,
elbow and valve losses). Also, find pressure at the inlet
pump
water is at 80 degrees C
Water is being pumped from the tank at a rate of 475 L/min
-115 m E Pump Globe valve fully open DN 65 Schedule 40 steel pipe 1.40 m 0.75 m Standard elbows (2)
The pump-turbine system in Figure 4 draws the water from the upper reservoir in the daytime to pr...
The pump-turbine system in Figure 4 draws the water from the
upper reservoir in the daytime to produce power for a city. At
night, it pumps water from lower to upper reservoir to restore the
situation. For the design flow rate of 0.157m3/s, the
friction head loss,
hL=4vA2/(2g).
Determine the jet velocity at A.
Find the friction head loss in the system.
Estimate the energy head in meters delivered by the pump at
night.
Estimate the power in kW delivered...
02. centrifugal pump draws benzene at 25°C (sp. weight of benzene 8.59 kN/m) om a tank whose level is 2.6 m below the pump inlet. The atmospheric pressure (abs). The head loss in the suction pipi...
02. centrifugal pump draws benzene at 25°C (sp. weight of benzene 8.59 kN/m) om a tank whose level is 2.6 m below the pump inlet. The atmospheric pressure (abs). The head loss in the suction piping due to friction and minor osses is 0.8 N.m /N. The vapor pressure of benzene is 13.3 kPa (abs). Determine he available net positive suction head (NPSH) and tell f it is acceptable or not. (10 points) Discharge ine Flew 2.6 m What is...
Fluid Mechanics QUESTION 4 (a) What are the Energy Grade Line (EGL) and Hydraulic Grade Line (HGL) in a pipe system...
Fluid Mechanics
QUESTION 4 (a) What are the Energy Grade Line (EGL) and Hydraulic Grade Line (HGL) in a pipe system? (1 mark) A factory draws its water supply from a mountain lake located 75 m above the factory (a) without pump. The factory is at present been supplied via 300 m of 20 cm diameter cast iron pipe. For control purposes, there are five gate valves and one globe valve in the line, as well as three standard 90...
14-34 A water pump is used to pump water from one large reservoir to another large...
14-34 A water pump is used to pump water from one large reservoir to another large reservoir that is at a higher elevation. The free surfaces of both reservoirs are exposed to atmo- spheric pressure, as sketched in Fig. P14-34. The dimen sions and minor loss coefficients are provided in the figure. The pump's performance is approximated by the expres- sion Havailable H av?, where the shutoff head H 40 m of water column, coefficient a = 0.053 m/Lpm?, available...
Fluid Mechanics & Fluid Power Determine the NPSH available. The pressure in the tank is - 20 kPa at 70 °C (atmospheric pressure is 100.5 kPa). The water level in the tank is 2.5 above the pump in...
Fluid Mechanics & Fluid Power
Determine the NPSH available. The pressure in the tank is - 20 kPa at 70 °C (atmospheric pressure is 100.5 kPa). The water level in the tank is 2.5 above the pump inlet. The pipe is 1%", schedule 40 with a total length of 12 m. The elbow is standard, and the globe valve is fully open. The flow rate is 95 L/min. FIGURE 13.27 llustration of pump performance for different impeller diameters with net...
3. A pump draws water at 15°C from a well through 10 m of 3 inch...
3. A pump draws water at 15°C from a well through 10 m of 3 inch sch 40 steel pipe. The pump is 7 m above the water level in the well. The pump discharges the water -horizontally through 30 m of 3 inch sch 40 steel pipe to a sprinkler. There is one check valve (ball type), and three 90° standard elbow installed at various places in the system. The pressure into the sprinkler should be 500 kPa and...
You need to pump water at 20 C from an open reservoir at flow rate of...
You need to pump water at 20 C from an open reservoir at flow rate of 1.4 x 10^-3 m3/s through a pipe with an inside diameter of 0.03m, using a centrifugal pump having an (NPSH)aq =2.5 m and the equivalent length on the suction side is 3m. There are several minor losses: four standar 90 flanged elbows, and fully open flanged globe valve, fully open flanged gate valve, and the Entrance. What is the the maximum distance above the...
2. (20 points) The pump shown in the figure pumps 1.5ft/s of water from the reservoir...
2. (20 points) The pump shown in the figure pumps 1.5ft/s of water from the reservoir with H-50ft. The head loss associated with this flow is 10ft. Specific weight of water y equals 62.41b/ft';g 32.2ft/s2. The pipe diameter is constant and equals D' C2 iches) . Compute the power in horsepower necessary to run the pump. . Sketch the energy and the hydraulic grade line. free jet
1 A pump delivers water from the lower reservoir to the upper reservoir at a rate of 60 L/s. Both...
1 A pump delivers water from the lower reservoir to the upper reservoir at a rate of 60 L/s. Both the suction and discharge pipes are DN 150 schedule 40steel pipe. The length of the suction pipe leading to the pump is 3.5 m, and 7 m of discharge pipe extend from the pump outlet to the upper tank. There are three standard 900 elbows and a fully open gate valve. The depth of the fluid level inside the lower...
what is the velocity head at the inlet pump?
Find the value of head loss (consider entrance, friction,
elbow and valve losses). Also, find pressure at the inlet
pump
water is at 80 degrees C
Water is being pumped from the tank at a rate of 475 L/min
-115 m E Pump Globe valve fully open DN 65 Schedule 40 steel pipe 1.40 m 0.75 m Standard elbows (2)
The pump-turbine system in Figure 4 draws the water from the
upper reservoir in the daytime to produce power for a city. At
night, it pumps water from lower to upper reservoir to restore the
situation. For the design flow rate of 0.157m3/s, the
friction head loss,
hL=4vA2/(2g).
Determine the jet velocity at A.
Find the friction head loss in the system.
Estimate the energy head in meters delivered by the pump at
night.
Estimate the power in kW delivered...
02. centrifugal pump draws benzene at 25°C (sp. weight of benzene 8.59 kN/m) om a tank whose level is 2.6 m below the pump inlet. The atmospheric pressure (abs). The head loss in the suction piping due to friction and minor osses is 0.8 N.m /N. The vapor pressure of benzene is 13.3 kPa (abs). Determine he available net positive suction head (NPSH) and tell f it is acceptable or not. (10 points) Discharge ine Flew 2.6 m What is...
Fluid Mechanics
QUESTION 4 (a) What are the Energy Grade Line (EGL) and Hydraulic Grade Line (HGL) in a pipe system? (1 mark) A factory draws its water supply from a mountain lake located 75 m above the factory (a) without pump. The factory is at present been supplied via 300 m of 20 cm diameter cast iron pipe. For control purposes, there are five gate valves and one globe valve in the line, as well as three standard 90...
14-34 A water pump is used to pump water from one large reservoir to another large reservoir that is at a higher elevation. The free surfaces of both reservoirs are exposed to atmo- spheric pressure, as sketched in Fig. P14-34. The dimen sions and minor loss coefficients are provided in the figure. The pump's performance is approximated by the expres- sion Havailable H av?, where the shutoff head H 40 m of water column, coefficient a = 0.053 m/Lpm?, available...
Fluid Mechanics & Fluid Power
Determine the NPSH available. The pressure in the tank is - 20 kPa at 70 °C (atmospheric pressure is 100.5 kPa). The water level in the tank is 2.5 above the pump inlet. The pipe is 1%", schedule 40 with a total length of 12 m. The elbow is standard, and the globe valve is fully open. The flow rate is 95 L/min. FIGURE 13.27 llustration of pump performance for different impeller diameters with net...
3. A pump draws water at 15°C from a well through 10 m of 3 inch sch 40 steel pipe. The pump is 7 m above the water level in the well. The pump discharges the water -horizontally through 30 m of 3 inch sch 40 steel pipe to a sprinkler. There is one check valve (ball type), and three 90° standard elbow installed at various places in the system. The pressure into the sprinkler should be 500 kPa and...
2. (20 points) The pump shown in the figure pumps 1.5ft/s of water from the reservoir with H-50ft. The head loss associated with this flow is 10ft. Specific weight of water y equals 62.41b/ft';g 32.2ft/s2. The pipe diameter is constant and equals D' C2 iches) . Compute the power in horsepower necessary to run the pump. . Sketch the energy and the hydraulic grade line. free jet
1 A pump delivers water from the lower reservoir to the upper reservoir at a rate of 60 L/s. Both the suction and discharge pipes are DN 150 schedule 40steel pipe. The length of the suction pipe leading to the pump is 3.5 m, and 7 m of discharge pipe extend from the pump outlet to the upper tank. There are three standard 900 elbows and a fully open gate valve. The depth of the fluid level inside the lower...
