A singly charged positive ion has a mass of 2.47 ✕ 10−26 kg. After being accelerated...

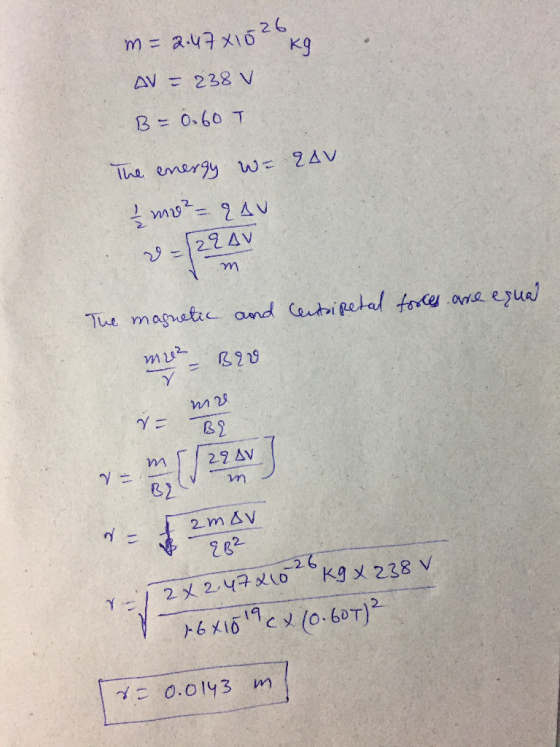

A singly charged positive ion has a mass of 2.47 ✕ 10−26 kg. After being accelerated through a potential difference of 238 V, the ion enters a magnetic field of 0.600 T, in a direction perpendicular to the field. Calculate the radius of the path of the ion in the field.
Homework Answers
Add Answer to:
A singly charged positive ion has a mass of 2.47 ✕
10−26 kg. After being accelerated...
A singly charged positive ion has a mass of 2.50*10^-26 kg. After being accelerated through a...
A singly charged positive ion has a mass of 2.50*10^-26 kg. After being accelerated through a potential difference of 250V, the ion enters a magnetic field of 0.500 T, in a direction perpendicular to the field. Calculate the radius of the path of the ion in the field.
A singly charged ion of 7Li (an isotope of Lithium) has a mass of 1.16 x 10-26 kg. It is accelerated through a potential difference of 220 V and then enters a magnetic field with magnitude 0.723 T perpendicular to the path of the ion. What is the radius o
A singly charged ion of 7Li (an isotope of Lithium) has a mass of 1.16 x 10-26 kg. It is accelerated through a potential difference of 220 V and then enters a magnetic field with magnitude 0.723 T perpendicular to the path of the ion. What is the radius of the ion's path in the magnetic field?
0/1 points | Previous Answers SerCP10 19.P.037 A singly charged positive ion has a mass of...
0/1 points | Previous Answers SerCP10 19.P.037 A singly charged positive ion has a mass of 2.40 x 10-26 kg. After being accelerated through a potential difference of 258 V, the ion enters a magnetic field of 0.550 T, in a direction perpendicular to the field. Calculate the radius of the path of the ion in the field. My Notes Ask Your Teac 1,24 Your response differs from the correct answer by more than 10%. Double check your calculations. cm...
Consider the mass spectrometer shown schematically in the figure below. The electric field between the plates...
Consider the mass spectrometer shown schematically in the figure below. The electric field between the plates of the velocity selector is 940 V/m, and the magnetic fields in both the velocity selector and the deflection chamber have magnitudes of 0.920 T. Calculate the radius r of the path for a singly charged ion with mass m = 2.30 ✕ 10−26 kg. ..... mm A singly charged positive ion has a mass of 2.60 ✕ 10−26 kg. After being accelerated through...
A proton and a singly charged ion of mass 52 atomic mass units (amu) are accelerated...
A proton and a singly charged ion of mass 52 atomic mass units (amu) are accelerated through the same potential difference and enter a region of uniform magnetic field moving perpendicular to the magnetic field. What is the ratio of their kinetic energies? Tries 0/10 If the radius of the proton's circular path in the magnetic field is 13.2 cm , what is the radius of the path of the singly charged ion of 52 amu? Tries 0/10 By what...
A singly charged ion of unknown mass moves in a circle of radius 12.5 cm in...
A singly charged ion of unknown mass moves in a circle of radius 12.5 cm in a magnetic field of 9.0 T. The ion was accelerated through a potential difference of 7.0 kV before it entered the magnetic field. What is the mass of the ion? ___kg
A triply-charged ion with a mass of 3.8×10-26 kg is accelerated by 10,000 volts before it...
A triply-charged ion with a mass of 3.8×10-26 kg is accelerated by 10,000 volts before it enters a 0.5-T magnetic field. (a) What is the radius of the circular curve it travels in? (b) What is its period of revolution?
Singly charged uranium-238 ions are accelerated through a potential difference of 3.10 kV and enter a...
Singly charged uranium-238 ions are accelerated through a potential difference of 3.10 kV and enter a uniform magnetic field of magnitude 1.38 T directed perpendicular to their velocities. (a) Determine the radius of their circular path. (Give your answer to three significant figures.) (b) Repeat this calculation for uranium-235 ions. (Give your answer to three significant figures.)
A doubly ionized atom (charge = +2e) whose mass is 8.30×10-26 kg is accelerated by a...
A doubly ionized atom (charge = +2e) whose mass is 8.30×10-26 kg is accelerated by a voltage of 2150.0 V and enters a region where a uniform magnetic field B = 0.100 T acts perpendicular to its motion. a) What is the radius of curvature of the path of the ion in the B-field? b) What is its period of revolution?
In a mass spectrometer, a singly charged ion having a particular velocity is selected by using...
In a mass spectrometer, a singly charged ion having a particular velocity is selected by using a magnetic field of 7.0×10−2 T perpendicular to an electric field of 1.0×103 V/m . A magnetic field of this same magnitude is then used to deflect the ion, which moves in a circular path with a radius of 1.3 cm . What is the mass of the ion? Express your answer using two significant figures.
0/1 points | Previous Answers SerCP10 19.P.037 A singly charged positive ion has a mass of 2.40 x 10-26 kg. After being accelerated through a potential difference of 258 V, the ion enters a magnetic field of 0.550 T, in a direction perpendicular to the field. Calculate the radius of the path of the ion in the field. My Notes Ask Your Teac 1,24 Your response differs from the correct answer by more than 10%. Double check your calculations. cm...
