Question

A small vehicle/car repair shop, consists of two offices, an electronic workshop and two repair
workshops. The shop employs many employees, and an employee works only for one shop. A job is
done by many employees, and an employee performs many jobs. This relationship creates a
challenge for the shop owner when he must analyze their working hours. The shop owner would like
to have working hours as information of the employee as well as information for jobs done.

Some of the jobs are done by engineers, and an engineer is assigned to many jobs. The engineers
are either full time engineers or part time engineers. The following data should be stored about each
engineer: Engineer number, Engineer name, Professional No, Tel number. For full time engineer’s
Annual salary is also stored, while for part time Hourly rate and Hours worked are stored.

To describe the above scenario, develop a domain model class diagram. Assign attributes where
applicable

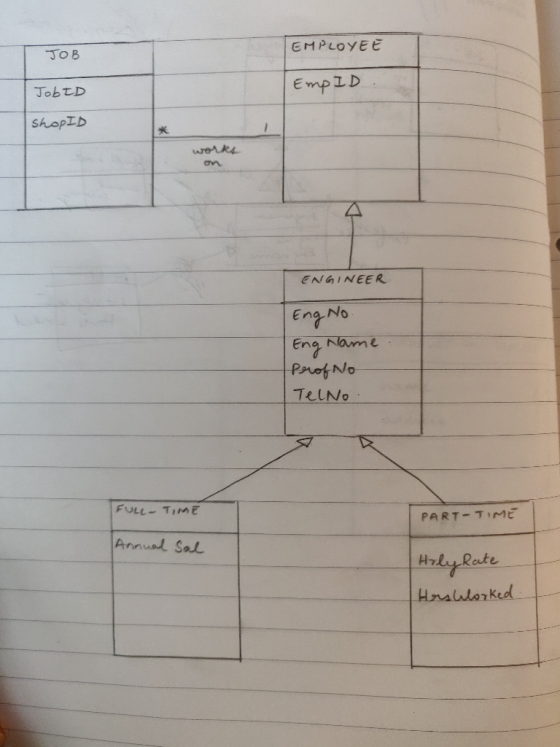

Answer 1

Hope that helps :)
