•An engineer is looking to determine the PI of a horizontal curve along a highway segment...
•An engineer is looking to determine the PI of a horizontal curve along a highway segment comprised of an equal-tangent sag curve and the horizontal curve with the same design speed. The horizontal curve has a superelevation of 8%, central angle of 30 degrees and a PT at Station 302 + 20. The road has two 11-ft lanes (one in each direction). As for the sag vertical curve, it is known that its initial grade is –1.8% and a positive final grade that is not known. The station of the PVC is 232 + 70 and the station of the low point of the sag vertical curve is 235 + 14.8.
Homework Answers
Add Answer to:

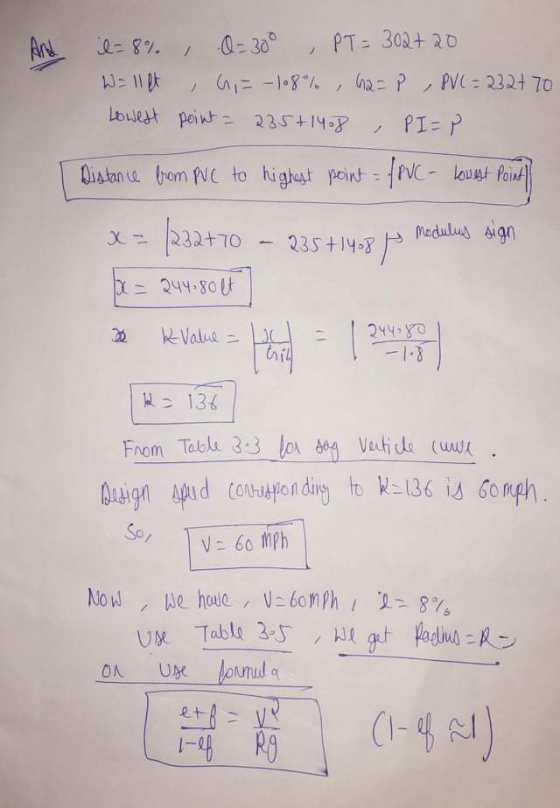

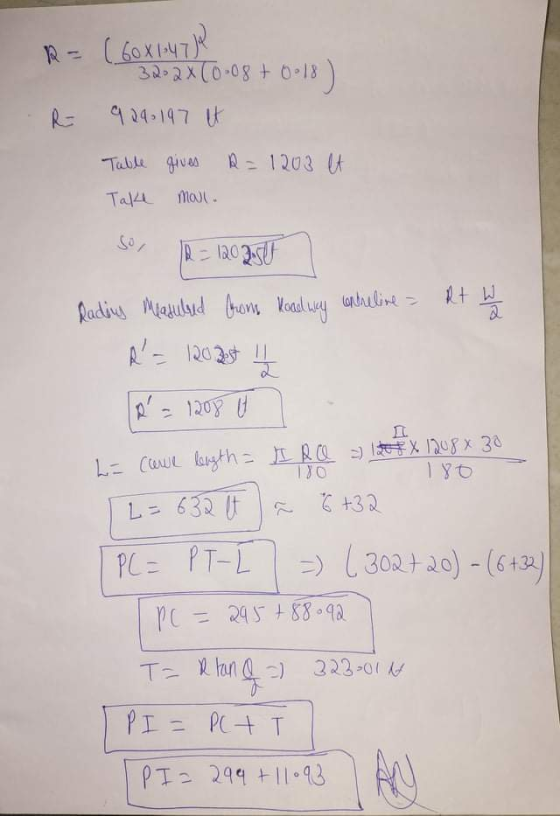

•An engineer is looking to determine the PI of a horizontal
curve along a highway segment...
(2 points) A horizontal curve on a two-lane highway (12-ft lanes) is designed for 55 mi/h...
(2 points) A horizontal curve on a two-lane highway (12-ft lanes) is designed for 55 mi/h with a 6% superelevation. The central angle of the curve is 50 degrees and the PI is at station 212+67. What is the station of the PT? Determine the length of superelevation runoff and tangent runout for the associated curve transition section (assume a normal, 2% crown). Assume perception-reaction time of 2.5 sec and the deceleration rate for braking (a) is 11.2 ft/sec2
Part A. The following information is for a proposed horizontal curve in a new subdivision: PI...
Part A. The following information is for a proposed horizontal curve in a new subdivision: PI Station: 12+40.00 R-572.96 feet Deflection angle A-12.30 What is the Station of PT? PI PC PT Part B. An existing highway has a historic site located at the PT of an existing curve with a PI located at Station 80+00, an extemal angle of 65°, and a radius of 1,200 ft. The curve must be relocated, moving the PI to Station 78+00. The external...
2. A horizontal curve on a 4 lane highway has a super elevation of 6% and...
2. A horizontal curve on a 4 lane highway has a super elevation of 6% and a central angle of 40 degrees. The PT of the curve is at station 322+50 and PI is at 320+08. The road has 10 feet lanes, 2 lanes in each direction, no median, and 8 feet shoulders on both sides. What is the highest safe speed (round to 5mi/hr increments) and what is the station for PC?
Determine the SSD for this curve. Calculate the radius of the curve, the length, and stations for PC and PT 3.39 On a r...
Determine the SSD for this curve. Calculate the radius of the
curve, the length, and stations for PC and PT
3.39 On a roadway with two 12-ft lanes, a horizontal curve is designed for 35 mi/h with a 4% superelevation. It is known that Δ-20, The PI of the curve is at station 30 + 00. What is the station of the PT of the curve?
3.39 On a roadway with two 12-ft lanes, a horizontal curve is designed for...
Problem 4. A horizontal curve is being designed through mountainous terrain for a four-lane road with...
Problem 4. A horizontal curve is being designed through mountainous terrain for a four-lane road with lanes that are 10 ft wide. The central angle is known to be 40 degrees, the tangent distance is 510 ft, and the stationing of the tangent intersection (PI) is 2700+00. (a) Find the curve radius using the geometry given. (b) Find the stationing of the PC and PT. (c) What is be the minimum radius for this curve? Use a design speed of...
1) A horizontal curve is being designed around a pond with a tangent length of 1200...
1) A horizontal curve is being designed around a pond with a tangent length of 1200 ft and central angle of 0.5211 radians. If the PI is at station 145+00, determine the station of PT. ⦁ 168+45.43 ⦁ 156+45.43 ⦁ 173+94.00 ⦁ 156+72.72 2) A car is traveling downhill on a suburban road with a grade of 3% at a speed of 35 mi/h. Determine the stopping sight distance based on a reaction time of 2.5 second, and a deceleration...
highway geometric Q1) A. What are the Principal elements of the highway cross section? Draw the...
highway geometric
Q1) A. What are the Principal elements of the highway cross section? Draw the typical cross sections for a two-lane highway. (5 Points) B. Briefly discuss the various indirect design factors to be considered for geometric design of highway. (10 Points) Q2) A. What is Road Alignment? Briefly describe the requirements of an ideal alignment. (5 Points) B. An equal-tangent sag vertical curve has the initial grade is -3.2% and the final grade is +1.8%, PVI at 30+30...
A horizontal curve is designed for a two-lane road in mountainous terrain. The following data is...
A horizontal curve is designed for a two-lane road in mountainous terrain. The following data is known: Deflection angle: 40 degrees Tangent length: 436.76 feet Station of PI: 2700 10.65 fs = 0.12 e 0.08 Determine the following (a) Design speed= 60 mph (b) Station of the PC 2695+73.89 (c) Station of the PT = 2704+11.64 (d) draw the superelevation attainment detail drawing, show all important stations and lengths. wwwwnO Just Solve part (d)
A horizontal curve is designed for...
a) a 200 m vertical crest curve is designed to connect a +4.5% tangent with a...
a) a 200 m vertical crest curve is designed to connect a +4.5% tangent with a -2% tangent. What should the design speed be to provide ample stopping sight distance? SSD t Pra) [10 marks) b) A 300 m sag parabolic vertical curve has a PVC at station 2+600.000 and elevation 320.000 m. the initial grade is -4.0% and the final grade is +1.0%. Determine the stationing and elevation of PVI, PVT and the lowest point on the curve. Also...
A horizontal curve for a new highway has the following information: • • • Central angle...
A horizontal curve for a new highway has the following information: • • • Central angle (or A) = 60° Radius until the highway centerline (or R) = 600 ft PI station =(12+00) Calculate the station of the PT.
(2 points) A horizontal curve on a two-lane highway (12-ft lanes) is designed for 55 mi/h with a 6% superelevation. The central angle of the curve is 50 degrees and the PI is at station 212+67. What is the station of the PT? Determine the length of superelevation runoff and tangent runout for the associated curve transition section (assume a normal, 2% crown). Assume perception-reaction time of 2.5 sec and the deceleration rate for braking (a) is 11.2 ft/sec2
Part A. The following information is for a proposed horizontal curve in a new subdivision: PI Station: 12+40.00 R-572.96 feet Deflection angle A-12.30 What is the Station of PT? PI PC PT Part B. An existing highway has a historic site located at the PT of an existing curve with a PI located at Station 80+00, an extemal angle of 65°, and a radius of 1,200 ft. The curve must be relocated, moving the PI to Station 78+00. The external...
2. A horizontal curve on a 4 lane highway has a super elevation of 6% and a central angle of 40 degrees. The PT of the curve is at station 322+50 and PI is at 320+08. The road has 10 feet lanes, 2 lanes in each direction, no median, and 8 feet shoulders on both sides. What is the highest safe speed (round to 5mi/hr increments) and what is the station for PC?
Determine the SSD for this curve. Calculate the radius of the
curve, the length, and stations for PC and PT
3.39 On a roadway with two 12-ft lanes, a horizontal curve is designed for 35 mi/h with a 4% superelevation. It is known that Δ-20, The PI of the curve is at station 30 + 00. What is the station of the PT of the curve?
3.39 On a roadway with two 12-ft lanes, a horizontal curve is designed for...
Problem 4. A horizontal curve is being designed through mountainous terrain for a four-lane road with lanes that are 10 ft wide. The central angle is known to be 40 degrees, the tangent distance is 510 ft, and the stationing of the tangent intersection (PI) is 2700+00. (a) Find the curve radius using the geometry given. (b) Find the stationing of the PC and PT. (c) What is be the minimum radius for this curve? Use a design speed of...
highway geometric
Q1) A. What are the Principal elements of the highway cross section? Draw the typical cross sections for a two-lane highway. (5 Points) B. Briefly discuss the various indirect design factors to be considered for geometric design of highway. (10 Points) Q2) A. What is Road Alignment? Briefly describe the requirements of an ideal alignment. (5 Points) B. An equal-tangent sag vertical curve has the initial grade is -3.2% and the final grade is +1.8%, PVI at 30+30...
A horizontal curve is designed for a two-lane road in mountainous terrain. The following data is known: Deflection angle: 40 degrees Tangent length: 436.76 feet Station of PI: 2700 10.65 fs = 0.12 e 0.08 Determine the following (a) Design speed= 60 mph (b) Station of the PC 2695+73.89 (c) Station of the PT = 2704+11.64 (d) draw the superelevation attainment detail drawing, show all important stations and lengths. wwwwnO Just Solve part (d)
A horizontal curve is designed for...
a) a 200 m vertical crest curve is designed to connect a +4.5% tangent with a -2% tangent. What should the design speed be to provide ample stopping sight distance? SSD t Pra) [10 marks) b) A 300 m sag parabolic vertical curve has a PVC at station 2+600.000 and elevation 320.000 m. the initial grade is -4.0% and the final grade is +1.0%. Determine the stationing and elevation of PVI, PVT and the lowest point on the curve. Also...
A horizontal curve for a new highway has the following information: • • • Central angle (or A) = 60° Radius until the highway centerline (or R) = 600 ft PI station =(12+00) Calculate the station of the PT.
