A tank is filled with water to a height H, 22 m. A hole is punched...

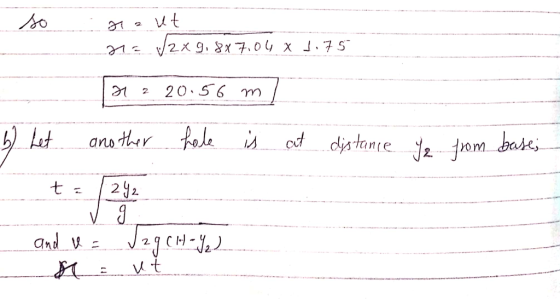

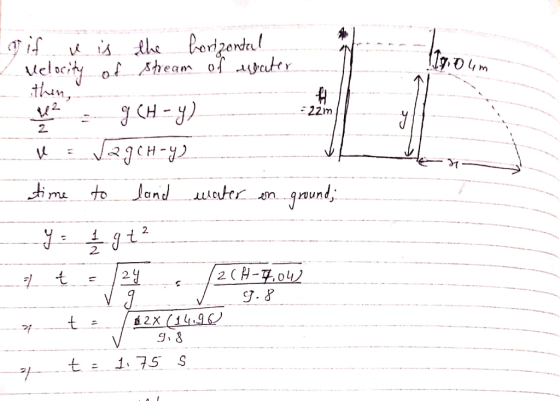

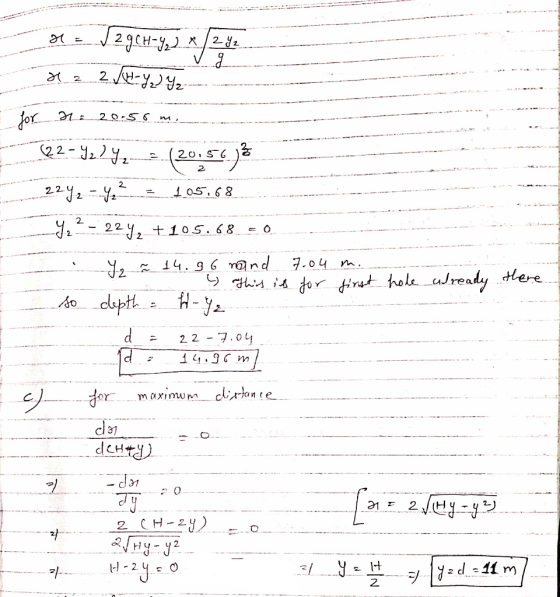

A tank is filled with water to a height H, 22 m. A hole is punched in one of the walls at a depth h, 7.04 m, below the water surface (see the figure). What is the distance x from the base of the tank to the point at which the resulting stream strikes the floor? Could a hole be punched at another depth to produce a second stream that would have the same range? If so, at what depth? At what depth should a hole be punched to make the emerging stream strike the ground at the maximum distance from the base of the tank?
Homework Answers
Add Answer to:
A tank is filled with water to a height H, 22 m. A hole is
punched...
Water stands at a depth H = 19.5m in a large open tank whose side walls...
Water stands at a depth H = 19.5m in a large open tank whose side walls are vertical. A hole is made in one of the walls at a depth of h = 4.50m, below the top water surface. Part A: At what distance A from the foot at the wall does the emerging stream strike the floor? Part B: If you make a hole at a certain position, R becomes the maximum value. Find maximum value of R.
The figure shows a stream of water flowing through a hole at depth h = 9.66 cm in a tank holding water to height H = 31....
The figure shows a stream of water flowing through a hole at
depth h = 9.66 cm in a tank holding water to height
H = 31.1 cm. (a) At what distance
x does the stream strike the floor? (b)
At what depth should a second hole be made to give the same value
of x? (c) At what depth should a hole be
made to maximize x?
14. A jet of water squirts out horizontally from a hole near the bottom of the very large tank in the figure. If the height, h, of the water level in the tank is 0.3 m, find the angle that the s...
14. A jet of water squirts out horizontally from a hole near the bottom of the very large tank in the figure. If the height, h, of the water level in the tank is 0.3 m, find the angle that the stream makes with the vertical as it strikes the ground. (The horizontal distance frorm the bottom of the cylindrical stand to the splash point is unknown.)
14. A jet of water squirts out horizontally from a hole near the...
The figure shows a stream of water flowing through a hole at depth h = 19.5...
The figure shows a stream of water flowing through a hole at depth h = 19.5 cm in a tank holding water to height H = 57.8 cm. (a) At what distance x does the stream strike the floor? (b) At what depth should a second hole be made to give the same value of x? (c) At what depth should a hole be made to maximize x?
A large tank of water is filled up to a height H = 65 cm and...
A large tank of water is filled up to a height H = 65 cm and is
tapped a distance h = 48 cm below the water surface by a small hole
as shown in the figure. Find the distance x reached by the water
flowing out of the hole.
A jet of water squirts out horizontally from a hole near the bottom of the tank...
A jet of water squirts out horizontally from a hole near the bottom
of the tank shown in the figure. If the hole has a diameter of 4.00
mm, what is the height h of the water level in the
tank?
A tank of water sits upright on a surface that is elevated above
the ground. The height of the elevated surface above the ground is
labeled 1.00 m. The height of the water from the bottom of the tank...
A bullet is fired into a water tank, leaving a hole 4.7 m above the ground...
A bullet is fired into a water tank, leaving a hole 4.7 m above the ground which causes a leak. The top of the tank is open to the atmosphere, and the water level in the tank above the newly-formed hole is 0.51 m. Where does the stream of water emerging from the hole hit the ground? Provide your answer in meters.
Chapter 14 Problem 071 The figure shows a stream of water flowing through a hole at...
Chapter 14 Problem 071 The figure shows a stream of water flowing through a hole at depth - 7.74 cm in a tank holding water to height second hoe be made to give the same value of (c) At what depth should a hole be made to maximize -35.7 cm. (a) At what distance x does the stream strike the floor? (b) At what depth should a Units (a) Number (b) Number (c) Number Units Units Question Attempts of used...
help woth 5 a,b,c 5. The side of a cylindrical can full of water springs a...
help woth 5 a,b,c
5. The side of a cylindrical can full of water springs a leak, and the water begins to stream out. The depth H, in inches, of water remaining in the can is a function of the distance D in inches (measured from the base of the can) at which the stream of water strikes the ground. Here is a table of values of D and H. Distance D in inches Depth H in inches 1.00 1...
3. (3 points) A tank of diameter D is filled with water up to a height...
3. (3 points) A tank of diameter D is filled with water up to a height h above the bottom of the tank (Figure 3). At the bottom of the tank is a hole of diameter d. Assume that the water flows out of the hole with a laminar flow and that the difference in atmospheric pressure between the top and the bottom of the tank is negligible Figure 3: A lank draining a) What speed will the water have...
The figure shows a stream of water flowing through a hole at
depth h = 9.66 cm in a tank holding water to height
H = 31.1 cm. (a) At what distance
x does the stream strike the floor? (b)
At what depth should a second hole be made to give the same value
of x? (c) At what depth should a hole be
made to maximize x?
14. A jet of water squirts out horizontally from a hole near the bottom of the very large tank in the figure. If the height, h, of the water level in the tank is 0.3 m, find the angle that the stream makes with the vertical as it strikes the ground. (The horizontal distance frorm the bottom of the cylindrical stand to the splash point is unknown.)
14. A jet of water squirts out horizontally from a hole near the...
A large tank of water is filled up to a height H = 65 cm and is
tapped a distance h = 48 cm below the water surface by a small hole
as shown in the figure. Find the distance x reached by the water
flowing out of the hole.
A jet of water squirts out horizontally from a hole near the bottom
of the tank shown in the figure. If the hole has a diameter of 4.00
mm, what is the height h of the water level in the
tank?
A tank of water sits upright on a surface that is elevated above
the ground. The height of the elevated surface above the ground is
labeled 1.00 m. The height of the water from the bottom of the tank...
Chapter 14 Problem 071 The figure shows a stream of water flowing through a hole at depth - 7.74 cm in a tank holding water to height second hoe be made to give the same value of (c) At what depth should a hole be made to maximize -35.7 cm. (a) At what distance x does the stream strike the floor? (b) At what depth should a Units (a) Number (b) Number (c) Number Units Units Question Attempts of used...
help woth 5 a,b,c
5. The side of a cylindrical can full of water springs a leak, and the water begins to stream out. The depth H, in inches, of water remaining in the can is a function of the distance D in inches (measured from the base of the can) at which the stream of water strikes the ground. Here is a table of values of D and H. Distance D in inches Depth H in inches 1.00 1...
3. (3 points) A tank of diameter D is filled with water up to a height h above the bottom of the tank (Figure 3). At the bottom of the tank is a hole of diameter d. Assume that the water flows out of the hole with a laminar flow and that the difference in atmospheric pressure between the top and the bottom of the tank is negligible Figure 3: A lank draining a) What speed will the water have...
