Two rigid rods are oriented parallel to each other and to the ground. The rods carry...

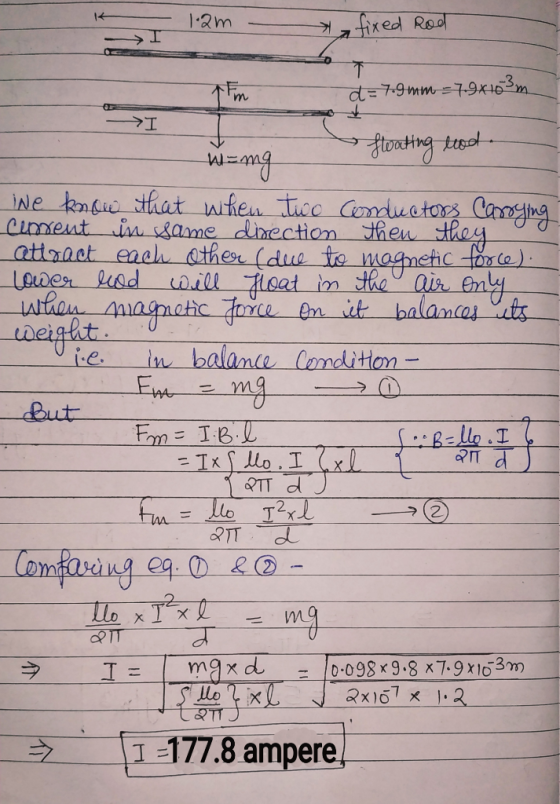

Two rigid rods are oriented parallel to each other and to the ground. The rods carry the same current in the same direction. The length of each rod is 1.2 m, while the mass of each is 0.098 kg. One rod is held in place above the ground, and the other floats beneath it at a distance of 7.9 mm. Determine the current in the rods.
Homework Answers
