Consider the Fermi–Dirac function, f(E) = 1∕[e(E−EF)∕kT + 1] . Define x = (E − EF)∕kT...
Consider the Fermi–Dirac function, f(E) = 1∕[e(E−EF)∕kT + 1] .
Define
x = (E − EF)∕kT and hence show that f ′(x) = df (x)∕dx = −ex∕(ex +
1)2. (a) Plot f (x) versus x and
y = ∣ f ′(x)∕f ′(0)∣ vs. x. (b) What are f and y at x = ±2? What
does the interval Δx = 4 about x = 0
represent? (c) Show that the width Δx of the y vs. x curve between
the y = 0.1 values is approximately
7.2. (d) What are your conclusions?

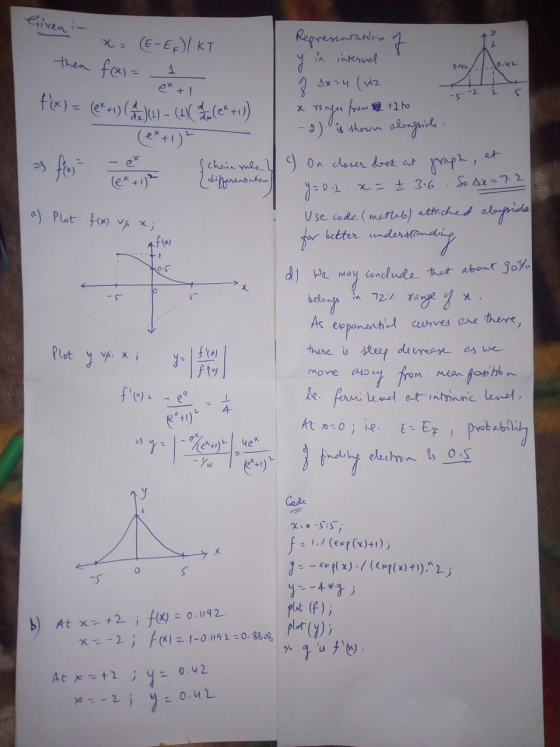

Homework Answers
Any doubts, please ask as thumbs down won't
solve the doubt. Thanks!Add Answer to:
