Given a 200 Amp common current and an impedance of 2+j4, calculate the power loss.

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

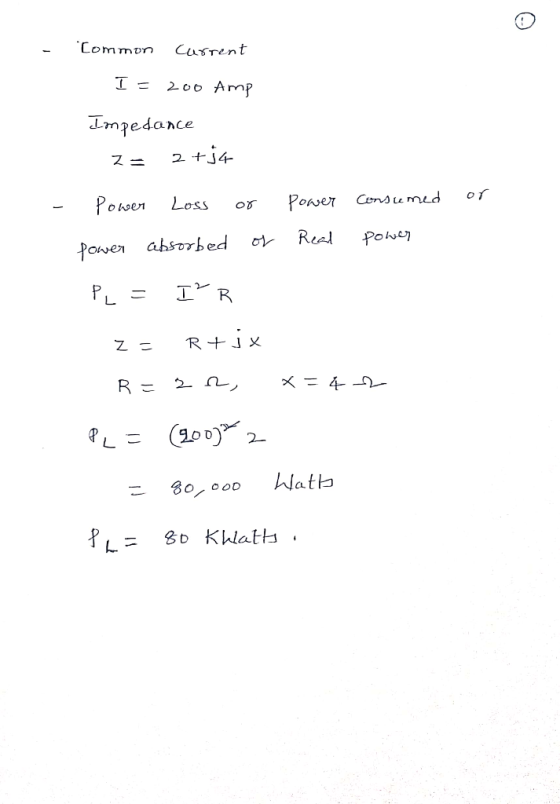

By using formula for power loss or power absorbed or power consumed or real power we get the solution.

Answer 2
