Consider the "divides" relation on the set {2, 3, 4, 5, 6, 15} (which is a...
Consider the "divides" relation on the set {2, 3, 4, 5, 6, 15}
(which is a partial order).

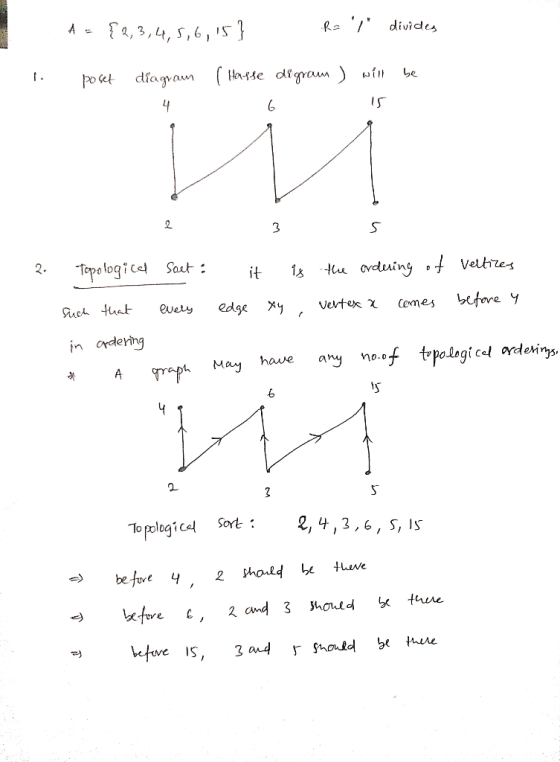

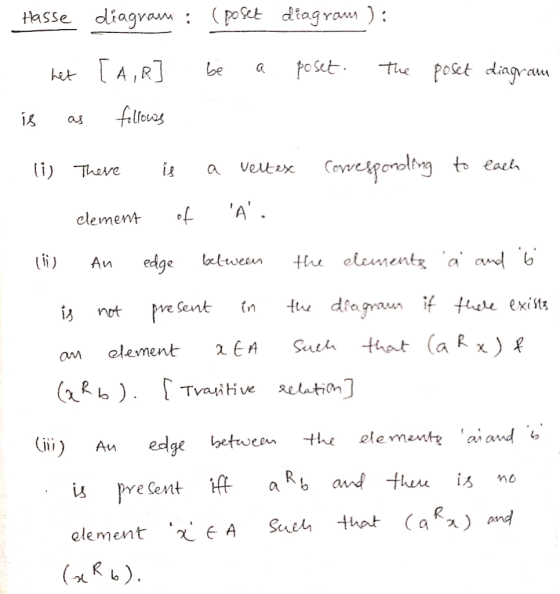

1. Draw the Hasse Diagram for this partial order.
2. Write out the elements in order of a topological sort of this partial order
Homework Answers
