A series RLC circuit is driven by a voltage source which provides a time varying emf...

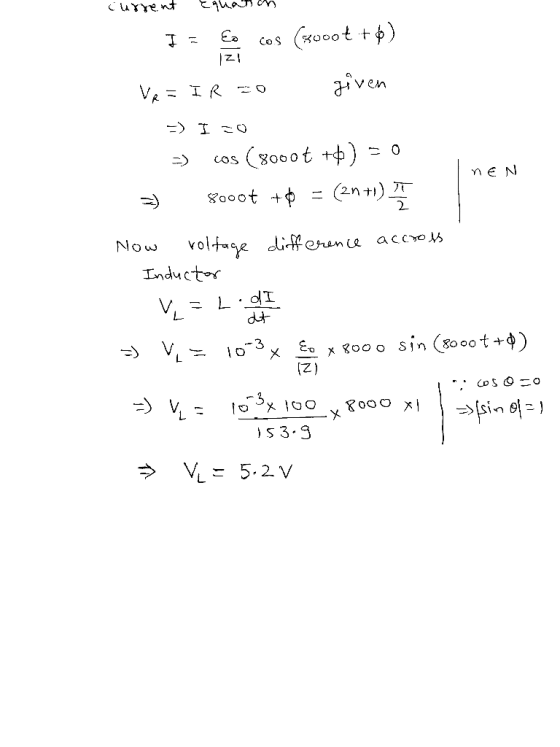

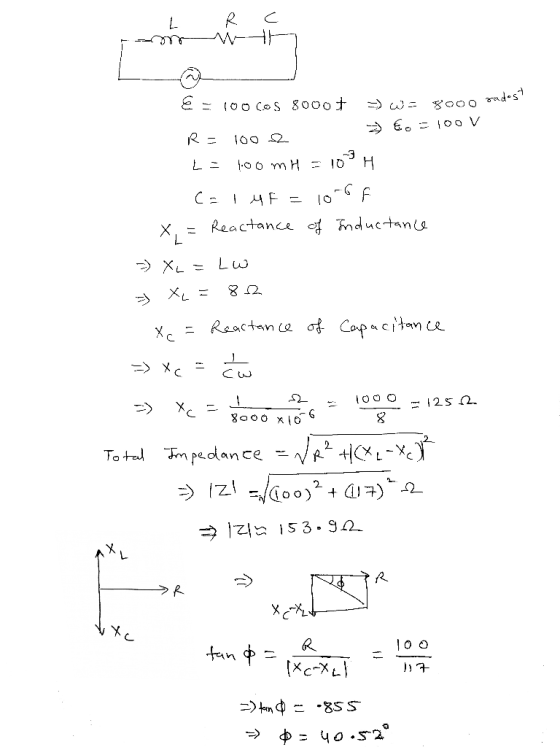

A series RLC circuit is driven by a voltage source which provides a time varying emf of epsilon space equals space 100 cos left parenthesis 8000 t right parenthesis space straight V and consists of an resistor, capacitor and inductor with values of R space equals space 100 space capital omega L space equals space 1.00 space mH C space equals space 1.00 space μF. When the potential across the resistor is 0 V, what is the potential across the inductor?
Homework Answers
Add Answer to:
A series RLC circuit is driven by a voltage source which
provides a time varying emf...
The circuit shown below contains an AC generator which provides a source of sinusoidally varying emf...
The circuit shown below contains an AC generator which provides a source of sinusoidally varying emf epsilon (t) = epsilon _0 sin omega t, a resistor with resistance R, and a "black box," which contains either an inductor or a capacitor, but not both. The amplitude of the driving emf, epsilon _0, is 100 Squareroot 2 V, and the angular frequency omega is 10 rad/s. We measure the current in the circuit and find that it is given as a...
A series RLC circuit is driven by an alternating source at a frequency of 296 Hz...
A series RLC circuit is driven by an alternating source at a frequency of 296 Hz and an emf amplitude of 78.2 V. The resistance is 27.1 Ω, the capacitance is 10.5 µF, and the inductance is 25.5 mH. What is the rms potential difference across (a) the resistor, (b) the capacitor, and (c) the inductor? (d) What is the average rate at which energy is dissipated?
An alternating source drives a series RLC circuit with an emf amplitude of 6.0 V. The...
An alternating source drives a series RLC circuit with an emf amplitude of 6.0 V. The following three elements are connected in series: a resistor of 1812, a 24 mH inductor, and a 0.50 pF capacitor. What is the amplitude of the potential difference across the inductor, in V, at resonance?
A series RLC circuit is being driven by a sinusiodally varying emf given by epsilon= 150...
A series RLC circuit is being driven by a sinusiodally varying emf given by epsilon= 150 sin (100 pi t) with all SI units, with R = 120 Ohm, L = 100 mH, and C = 15 mu F. If the current amplitude, I_0 is exactly half the current amplitude at resonance, I_RES, find the value of the driving frequency, omega_d in terms of R, L, and C.
A series LRC circuit is driven by an alternating source with rms voltage 700 V and...
A series LRC circuit is driven by an alternating source with rms voltage 700 V and angular frequency 500 rad/s. The circuit elements are a 400 Ω resistor, a 4.0 μF capacitor and a 0.40 H inductor. If the resistor and inductor are side by side, what would be the rms voltage across the two elements?
A series RLC circuit is connected to a 3.30 kHz oscillator with a peak voltage of 3.40 V. It cons...
A series RLC circuit is connected to a 3.30 kHz oscillator with a peak voltage of 3.40 V. It consists of a 1.00 mH inductor, a 20.0 nF capacitor, and a 41.0 Ω resistor. If ε = ε0, what is the instantaneous current i?
A series RLC circuit is connected to an oscillator with an rms voltage of 22.0 V,...
A series RLC circuit is connected to an oscillator with an rms voltage of 22.0 V, and consists of a 23.0 mH inductor, a 1.20 nF capacitor, and a 270. Ω resistor. If ω = ω0ω0, what is the power supplied to the circuit?
A series RLC-circuit consists of a 280 Ω resistor, a 25 mH inductor, and an 18 μC capacitor
A series RLC-circuit consists of a 280 Ω resistor, a 25 mH inductor, and an 18 μC capacitor. What is the rms current if the emf is supplied by 120-V rms voltage, 60 Hz frequency?
A series RLC circuit is connected to a 4.70 kHz oscillator with a peak voltage of...
A series RLC circuit is connected to a 4.70 kHz oscillator with a peak voltage of 3.90 V. It consists of a 4.40 mH inductor, a 360. nF capacitor, and a 37.0 Ω resistor. If ε = ε0, what is the instantaneous current i?
A series RLC circuit is connected to a 2.30 kHz oscillator with a peak voltage of...
A series RLC circuit is connected to a 2.30 kHz oscillator with a peak voltage of 2.20 V. It consists of a 4.00 mH inductor, a 110. NF capacitor, and a 20.0 2 resistor. If ε = £o, what is the instantaneous current ? Answer: -3.85E-3 A
The circuit shown below contains an AC generator which provides a source of sinusoidally varying emf epsilon (t) = epsilon _0 sin omega t, a resistor with resistance R, and a "black box," which contains either an inductor or a capacitor, but not both. The amplitude of the driving emf, epsilon _0, is 100 Squareroot 2 V, and the angular frequency omega is 10 rad/s. We measure the current in the circuit and find that it is given as a...
An alternating source drives a series RLC circuit with an emf amplitude of 6.0 V. The following three elements are connected in series: a resistor of 1812, a 24 mH inductor, and a 0.50 pF capacitor. What is the amplitude of the potential difference across the inductor, in V, at resonance?
A series RLC circuit is being driven by a sinusiodally varying emf given by epsilon= 150 sin (100 pi t) with all SI units, with R = 120 Ohm, L = 100 mH, and C = 15 mu F. If the current amplitude, I_0 is exactly half the current amplitude at resonance, I_RES, find the value of the driving frequency, omega_d in terms of R, L, and C.
A series RLC circuit is connected to a 2.30 kHz oscillator with a peak voltage of 2.20 V. It consists of a 4.00 mH inductor, a 110. NF capacitor, and a 20.0 2 resistor. If ε = £o, what is the instantaneous current ? Answer: -3.85E-3 A
