8. What is the electron configuration and energy diagram for Arsenic (As)? 9 Draw the Lewis...

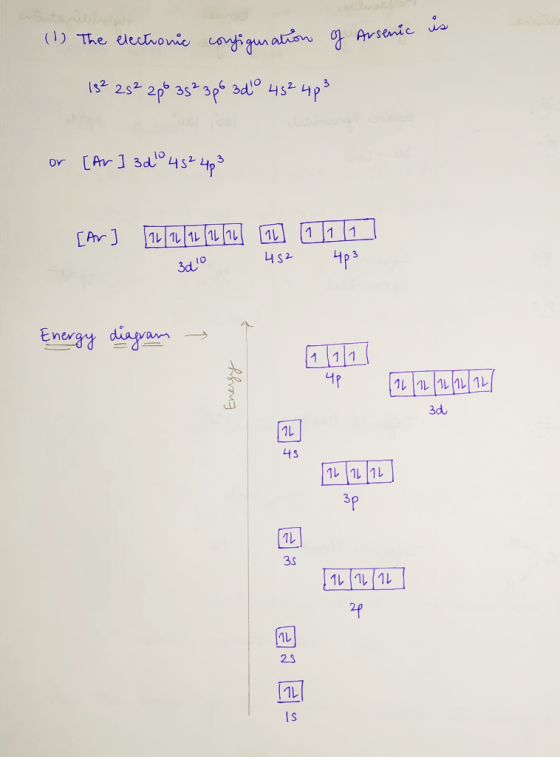

8. What is the electron configuration and energy diagram for Arsenic (As)?

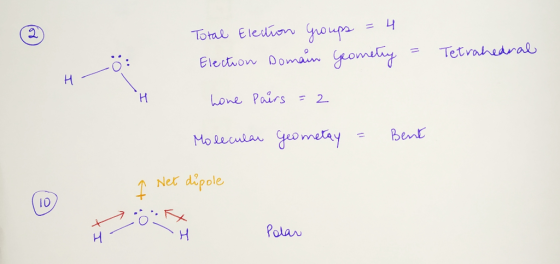

9 Draw the Lewis structure of water molecule and determine electron domain geometry. molecular geometry.
10. Based on the molecular geometry in question 9, explain whether water molecule is polar or non- polar. Explain your answer.
I need help with these questions. Please
thanks for your time
Homework Answers
Add Answer to:
8. What is the electron configuration and energy diagram for
Arsenic (As)?
9 Draw the Lewis...
7. Draw the Lewis structure for CIF- What is the electron domain geometry? What are the...
7. Draw the Lewis structure for CIF- What is the electron domain geometry? What are the hybrid orbitals on Cl used for bonding? What is its molecular geometry? Is CIF, polar or non-polar? 8. The molecular orbital energy levels for O, and Ng are given below. Explain why the bond order of N; molecule is greater than that of the N' molecular ion and but the bond order of O; molecule is less than that of the 0,° molecular ion...
Draw the best Lewis dot structure for TeBr4. What is the molecular geometry and electron domain...
Draw the best Lewis dot structure for TeBr4. What is the molecular geometry and electron domain geometry of the structure? Is the molecule polar or non-polar? What are the formal charges on all atoms? Hybridization ion on central atom?
Draw the best Lewis dot structure for KrCl2. What is the molecular geometry and electron domain...
Draw the best Lewis dot structure for KrCl2. What is the molecular geometry and electron domain geometry of the structure? Is the molecule polar or non-polar? What are the formal charges on all atoms? Hybridization ion on central atom?
Draw the best Lewis dot structure for NO2-. What is the molecular geometry and electron domain...
Draw the best Lewis dot structure for NO2-. What is the molecular geometry and electron domain geometry of the structure? Is the molecule polar or non-polar? What are the formal charges on all atoms? Hybridization ion on central atom?
Draw the best Lewis dot structure for BI3. What is the molecular geometry and electron domain...
Draw the best Lewis dot structure for BI3. What is the molecular geometry and electron domain geometry of the structure? Is the molecule polar or non-polar? What are the formal charges on all atoms? Hybridization ion on central atom?
Draw the best Lewis dot structure for CF4. What is the molecular geometry and electron domain geometry of the structure?...
Draw the best Lewis dot structure for CF4. What is the molecular geometry and electron domain geometry of the structure? Is the molecule polar or non-polar? What are the formal charges on all atoms? Hybridization ion on central atom?
Help me fill out Molecular Shapes Worksheet please Questions: - Draw Lewis Structure (and calculate valence...
Help me fill out Molecular Shapes Worksheet please
Questions:
- Draw Lewis Structure (and calculate valence e-)
- Electron Domain Geometry name
- Actual Molecular Geometry name and sketch
- Central Atom Hybridization
- Polar? (Y/N)
Molecules or Ions:
- NH3
- NO3 -
- PCl5
- CO2
- CH3OCH3
- SF6
- ClCH=CHCl
- CHFClBr
MOLECULAR SHAPES Name Molecule stal Malesalaா) ce Electroma metry Molecular e tra Lewis Structure calculate valence Electron Domain Geometry (Name) Actual (Molecular Geom Name...
a. Draw the Lewis dot structure of sulfite ion, starting with the number of valence electrons...
a. Draw the Lewis dot structure of sulfite ion, starting with the number of valence electrons b. Calculate the formal charge on each of the atoms. Which is the best structure? c. Are there any resonance structures for the best Lewis structure? If so, draw them? d. What is the bond order of bonds in SO3 ^2-? e. Is the molecule polar or non-polar? If so why? f. What is the electron domain and molecular geometry? Name and draw both...
** (Each Structure is worth 8 pts) ** Draw the following Lewis structures: Give the electron...
** (Each Structure is worth 8 pts) ** Draw the following Lewis structures: Give the electron and molecular geometry (name and degree, like Trigonal Planar- 120o, bent) of the Bold Faced element each example. Predict if the molecule will be polar or non-polar. Electronegativity: Br= 2.8, H=2.1, O=3.5, N=3.0) BrOBr Electron geometry___________ ____________o Molecular geometry _________ Polar / Non Polar (circle one) HNO Electron geometry___________ ____________o Molecular geometry_________ Polar / Non Polar (circle one)
5. Draw the Lewis structure, specify the electron cloud geometry, molecular geometry and whether or not...
5. Draw the Lewis structure, specify the electron cloud geometry, molecular geometry and whether or not the molecule is polar or nonpolar. (4 pts.) a. ammonia - NH3
7. Draw the Lewis structure for CIF- What is the electron domain geometry? What are the hybrid orbitals on Cl used for bonding? What is its molecular geometry? Is CIF, polar or non-polar? 8. The molecular orbital energy levels for O, and Ng are given below. Explain why the bond order of N; molecule is greater than that of the N' molecular ion and but the bond order of O; molecule is less than that of the 0,° molecular ion...
Help me fill out Molecular Shapes Worksheet please
Questions:
- Draw Lewis Structure (and calculate valence e-)
- Electron Domain Geometry name
- Actual Molecular Geometry name and sketch
- Central Atom Hybridization
- Polar? (Y/N)
Molecules or Ions:
- NH3
- NO3 -
- PCl5
- CO2
- CH3OCH3
- SF6
- ClCH=CHCl
- CHFClBr
MOLECULAR SHAPES Name Molecule stal Malesalaா) ce Electroma metry Molecular e tra Lewis Structure calculate valence Electron Domain Geometry (Name) Actual (Molecular Geom Name...
5. Draw the Lewis structure, specify the electron cloud geometry, molecular geometry and whether or not the molecule is polar or nonpolar. (4 pts.) a. ammonia - NH3
