Find D at P(4, 6, -8) caused due to a. A point charge of 10 mC...

Find D at P(4, 6, -8) caused due to

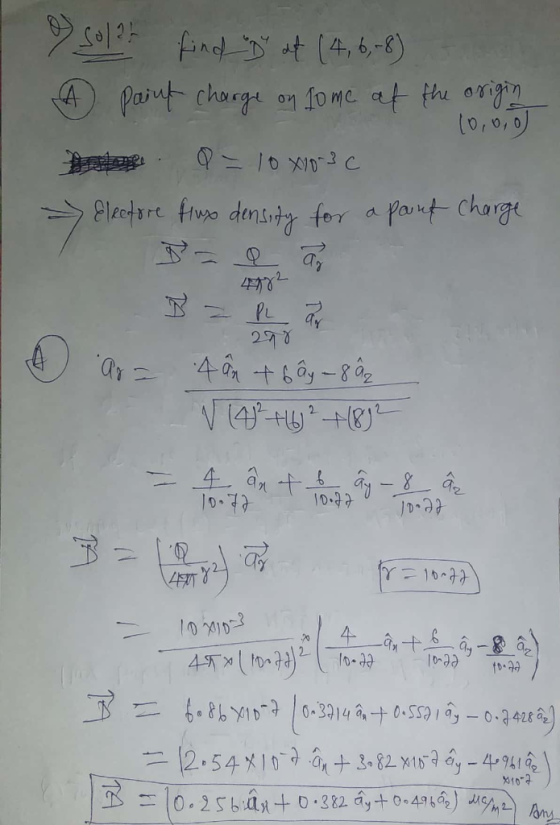

a. A point charge of 10 mC at the origin

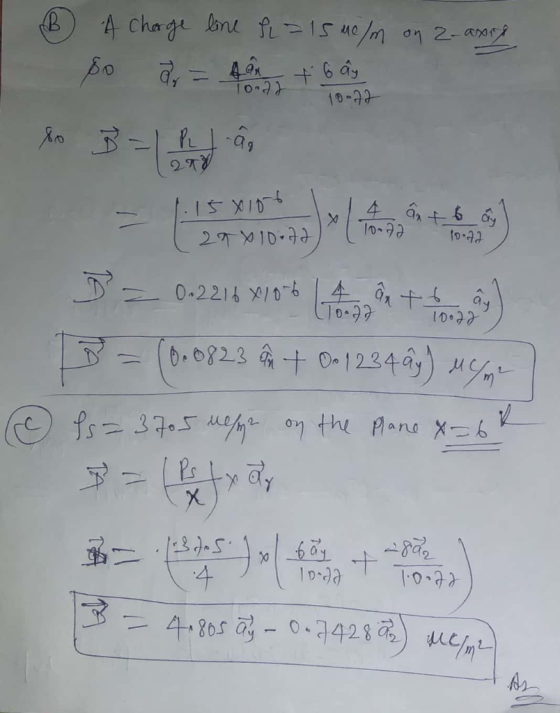

b. A uniform line charge ρL = 15 uC/m on the z axis
c. A uniform ρS = 37.5 uC/m2 on the plane x = 6

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1


0 0
Add a comment
