Two 5 volt batteries can be combined or connected in such a way as to render...
Two 5 volt batteries can be combined or connected in such a way as to render both a +5 volt and -5 volt source within the circuit? True or False?
The time rate of using energy is ________?
In conventional current for the carrier or particle is _____ (positively/negatively) charged?
Homework Answers
1)
**True

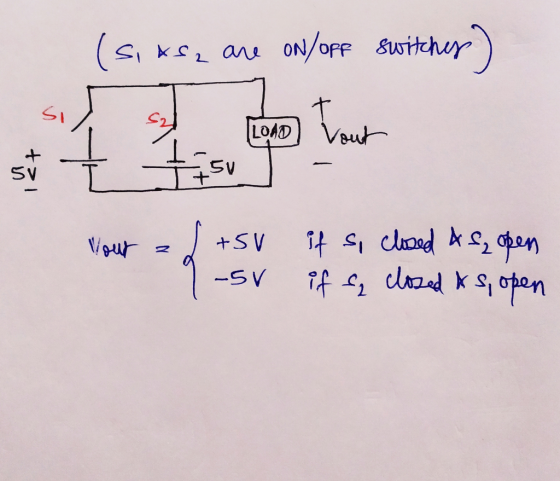

As explained in above circuit , I have shown both +5V and -5V arrangements are possible using parallel arrangement of two 5V batteries .
2) Power
Because
Power = Energy / Time
3) Positively charged !!
