Two very long, parallel wires separated by a distance of 0.8 cm carry opposite currents of...

Question

Question

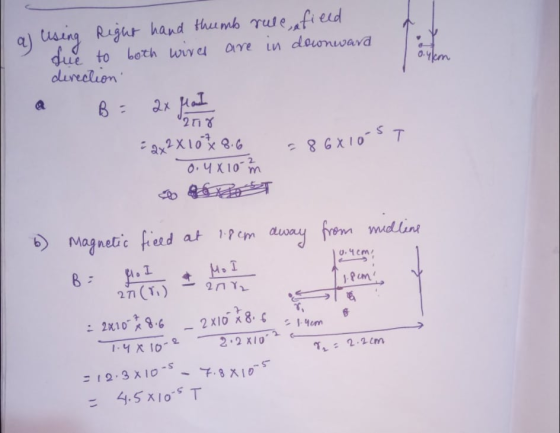

Two very long, parallel wires separated by a distance of 0.8 cm carry opposite currents of 8.6 A.

(a) Find the magnetic field at the midpoint between the wires.

(b) Find the magnetic field in the plane of the wires, at a distance of 1.8 cm from the midline.

science physics

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Two very long, straight, parallel wires separated by distance d carry currents of magnitude I in...

Two very long, straight, parallel wires separated by distance d carry currents of magnitude I in opposite directions. Find the magnetic field at a point equidistant from the lines, with a distance 2d from each line. Draw a diagram showing the direction of the magnetic field. One very large conducting plate coincides with the x-y plane.
Two long straight parallel wires separated by a distance of 20 cm carry currents of 30...

Two long straight parallel wires separated by a distance of 20 cm carry currents of 30 A and 40 A in opposite directions. What are the magnitude of the resulting magnetic field at a point that is 10 cm from the wires
Two long, straight, parallel wires separated by a distance d carry currents in opposite directions as...

Two long, straight, parallel wires separated by a distance d carry currents in opposite directions as shown in the figure. The bottom wire carries a current of 6.0 A. Point C is at the midpoint between the wires and point O is a distance 0.50d below the 6-A wire as suggested in the figure. The total magnetic field at point O is zero tesla. a. Determine the value of the current, I, in the top wire. Determine the magnitude of...

2. Two long straight parallel wires separated by a distance of 20 cm carry currents of...

2. Two long straight parallel wires separated by a distance of 20 cm carry currents of 30 A and 40 A in opposite directions. What is the magnitude of the resulting magnetic field at a point that is 15 cm from the wire carrying the 30 A current and 25 cm from the other wire?
3) Two parallel infinitely-long wires separated by 10 cm distance carry the currents of 1 A...

3) Two parallel infinitely-long wires separated by 10 cm distance carry the currents of 1 A flowing in the same direction. What is the magnetic field produced by these currents in the middle between the two wires? (25 pts.)
2. Two long, parallel, straight wires, separated by 12 cm, carry currents in opposite directions. If...

2. Two long, parallel, straight wires, separated by 12 cm, carry currents in opposite directions. If the currents are I. = 3 amps and 1. = 5 amps, find the magnitude and direction of the magnetic field at a point 3 cm to the left of the wire carrying 3 amps. H 12 cm . For all problems, assume [g] = 9.81 m/s?.

Two long parallel wires carry currents of 20 A and 5.0 A in opposite directions. The wires are separated by 0.20 m.

Two long parallel wires carry currents of 20 A and 5.0 A in opposite directions. The wires are separated by 0.20 m. What is the magnitude of the magnetic field midway between the two wires in units of 10-5T?
Two long parallel wires carry currents of 20 A and 5.0 A in opposite directions. The wires are separated by 0.20 m.

Two long parallel wires carry currents of 20 A and 5.0 A in opposite directions. The wires are separated by 0.20 m. What is the magnitude of the magnetic field midway between the two wires in units of 10-5T?
Two straight parallel wires carry currents in opposite directionsas shown in the figure. One of...

Two straight parallel wires carry currents in opposite directions as shown in the figure. One of the wires carries a current of I2 = 11.5 A. Point A is the midpoint between the wires. The total distance between the wires is d = 10.2 cm. Point C is 5.75 cm to the right of the wire carrying current I2. Current I1 is adjusted so that the magnetic field at C is zero.A. Calculate the value of the current I1.B. Calculate...

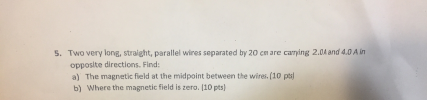

5. Two very long, straight, parallel wires separated by 20 cm are carrying 2.0A and 4.0...
