a) Draw the unit cells of the f.c.c. (A1), b.c.c. (A2), c.p.h. (A3) and diamond cubic (A4) structures. (8 points) Show the interstitial sites on these structures (both octahedral and tetrahedral sites). (8 points) Write down the coordinates of the interstitial sites and determine the net number of interstitial sites on the basis of these coordinates, for these structures (10 points) d) Calculate the interstial site dimension as a function of the lattice parameter for these structures, (14 points) e) By drawing necessary sketches, determine the number of nearest-neighbors (Coordination Number) for these structures showing neighboring atoms for each case. (8 points) f) Calculate the atomic packing factor (Packing Density) of these structures.
Homework Answers

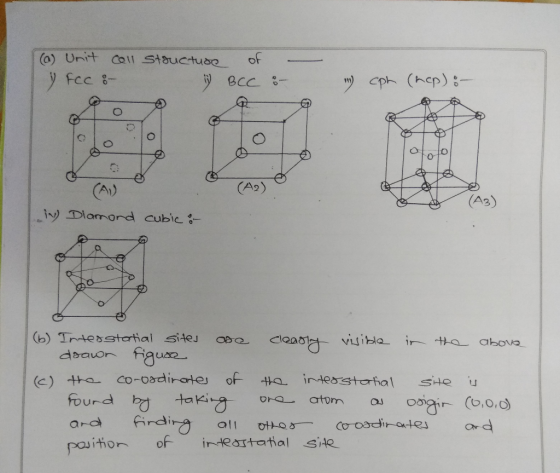

as from the image provided we
will be able to identify the unit cell structures and able to
understand the interstatial sites in the unit cell.
Add Answer to:
a) Draw the unit cells of the f.c.c. (A1), b.c.c. (A2), c.p.h.
(A3) and diamond cubic...
