A solenoid of length 2.00 cm and radius 0.550 cm has 41 turns. If the wire...

A solenoid of length 2.00 cm and radius 0.550 cm has 41 turns. If the wire of the solenoid has 1.35 amps of current, what is the magnitude of the magnetic field inside the solenoid?

magnitude of the magnetic field: T

Ignoring the weak magnetic field outside the solenoid, find the magnetic energy density inside the solenoid.

magnetic energy density: J/m3

What is the total magnetic energy inside the solenoid? total magnetic energy: J

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

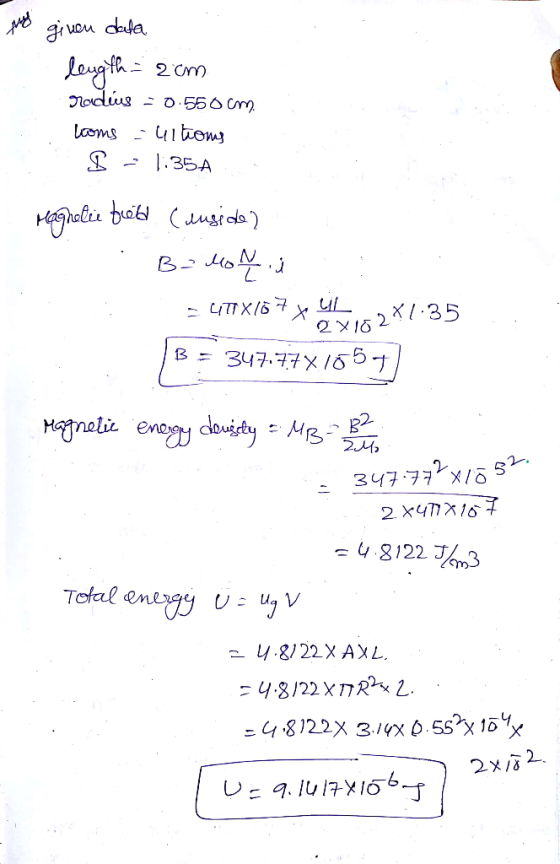

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A solenoid of length 2.00 cm and radius 0.550 cm has 41 turns. If the wire...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A solenoid of length 3.00 cm and radius 0.950 cm has 37 turns. If the wire...

    A solenoid of length 3.00 cm and radius 0.950 cm has 37 turns. If the wire of the solenoid has 1.35 amps of current, what is the magnitude of the magnetic field inside the solenoid? magnitude of the magnetic field: 2.09 ×10 −3 T Ignoring the weak magnetic field outside the solenoid, find the magnetic energy density inside the solenoid. magnetic energy density: 1.738 J/m3 What is the total magnetic energy inside the solenoid? total magnetic energy: ?? Need help...

  • A solenoid of length 0.796 m and radius 2.00 cm has 244 turns of wire. What...

    A solenoid of length 0.796 m and radius 2.00 cm has 244 turns of wire. What is the magnitude of the magnetic field well inside the solenoid when there is a current of 9.30 A in the wire? mT

  • Problem 22.40 (Multistep) A 1000-turn solenoid has a radius of 1.7 cm and a length of...

    Problem 22.40 (Multistep) A 1000-turn solenoid has a radius of 1.7 cm and a length of 24 cm. The current in the solenoid is 6 A. Part 1 (a) What is the inductance of this solenoid? H the tolerance is +/-2% By accessing this Question Assistance, you will learn while you earn points based on the Point Potential Policy set by your instructor. Attempts: 0 of 10 used SAVE FOR LATER SUBMIT ANSWER Part 2 (b) Inside the solenoid, what...

  • A solenoid that is 1 m long has a radius of 2.00 cm and a winding...

    A solenoid that is 1 m long has a radius of 2.00 cm and a winding of 1500 turns; it carries a current of 1 Amp. Calculate the magnitude of the magnetic field inside the solenoid (we do not consider the side effect of the coil in both ends). If now the length of the coil becomes 2 m, with a winding of 3000 turns and radius 4cm, carries the same amount of the current, what will be the ratio...

  • A long solenoid has a 60 cm length, with 3000 circular turns. The diameter of each...

    A long solenoid has a 60 cm length, with 3000 circular turns. The diameter of each circular turn is 2cm. When the current travels through the solenoid, a .35 Tesla field is created inside. A. How much current is traveling through this solenoid? B. The diameter of this solenoid is decreased to 1cm. Using the current in Part A, what is the magnetic field magnitude now? C. If this solenoid is created by a fixed length of wire, so that...

  • A solenoid of length 2.40 m and radius 1.30 cm carries a current of 0.130 A....

    A solenoid of length 2.40 m and radius 1.30 cm carries a current of 0.130 A. Determine the magnitude of the magnetic field inside if the solenoid consists of 2100 turns of wire.

  • A)A solenoid is made of 3000 turns of copper wire. The length of the coil is...

    A)A solenoid is made of 3000 turns of copper wire. The length of the coil is 35.0cm. It is connected to a power supply which provides a current of 5.00A. What is the magnitude of the B-field created inside the solenoid. B) The solenoid coil is twisted to make a toroid of radius 10.0cm. Determine the magnetic field magnitude inside the coils of the toroid.

  • A solenoid that is 79.0 cm long has a cross-sectional area of 13.0 cm2. There are...

    A solenoid that is 79.0 cm long has a cross-sectional area of 13.0 cm2. There are 930 turns of wire carrying a current of 6.60 A. (a) Calculate the energy density of the magnetic field inside the solenoid /m3 (b) Find the total energy stored in the magnetic field there (neglect end effects). t-1 points HRW10 30.P.069. What must be the magnitude of a uniform electric field if it is to have the same energy density as that possessed by...

  • 1. An infinite solenoid has n turns per unit length, a radius R, and carries a...

    1. An infinite solenoid has n turns per unit length, a radius R, and carries a current I. The magnitude of the magnetic field inside the solenoid is given by B = Mon, pints along the solenoid, and vanishes outside. (a) Find the magnitude of the vector potential, A, at a radius r inside the solenoid. (b) Find the magnitude of the vector potential, A, at a radius r outside the solenoid. Check that your answers agree on the boundary,...

  • A solenoid with 500 turns of wire per cm carries a current of 0.5A. It has...

    A solenoid with 500 turns of wire per cm carries a current of 0.5A. It has a length of 20.0cm and a diameter of 1.0cm. (Please show equations used) a. What is the magnitude of the magnetic field inside the solenoid? b. What is the magnetic flux in the center of the solenoid through a plane lying perpendicular to the long axis of the solenoid? c. What is the magnetic flux through a plane that contains the long axis of...
