1)If a 25 mH inductor drops 50 V while operating at 400 Hz, what is XL?...

Question

Question

1)If a 25 mH inductor drops 50 V while operating at 400 Hz, what is XL? 628 Ω 6.28 kΩ 62.8 Ω 62.8 kΩ

engineering Electrical-Engineering

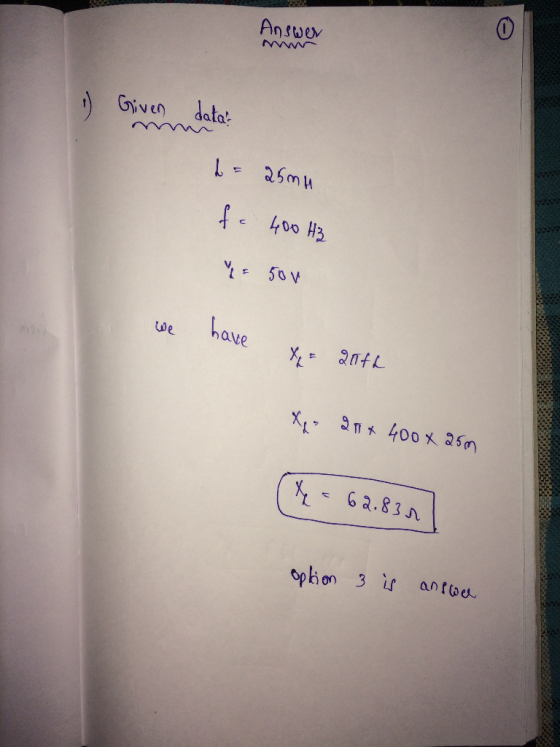

Answer 1

Answer #1

Answer 2
