Electric charges of - 10 nC, + 10 nC, and + 20 nC are located in...

Electric charges of - 10 nC, + 10 nC, and + 20 nC are located in the x-y plane at positions of (0, 0.5), (0, -0.5), and (0.5, 0), respectively, where the positions are expressed in m. What is the value of the electric potential at the position of the 20 nC charge, and what is its electrical potential energy?

a. 360 V and 14 micro joules

b. 0 V and 0 J

c. -250V and -5 micro joules

d. 250 V and 5 micro joules

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

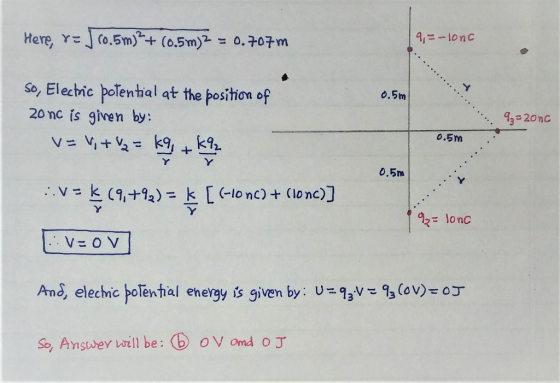

Answer #1


Alright Dude, If that worked for you... don't forget to give THUMBS UP.(that will work for me!)
Please Vote...
If I missed something feel free to leave a comment - At least before giving down vote.

# MOST IMPORTANT - don't forget to SANITIZE YOUR HANDS FREQUENTLY... STAY HEALTHY + STAY SAFE.

and_Thanks for using Chegg- Smarter way to study.

0 0
