Determine the stability of a quad on a 20° slope in pull condition. The mass of...

Determine the stability of a quad on a 20° slope in pull condition. The mass of the quad is 1,000 kg. The distance between the front and the rear axis is 400 cm, and the overall force of gravity for this quad is located 150.0 cm from the rear axis and 100 cm from the ground (that is 100 cm perpendicular distance from the slope). The drawbar is located 60 cm from the ground.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

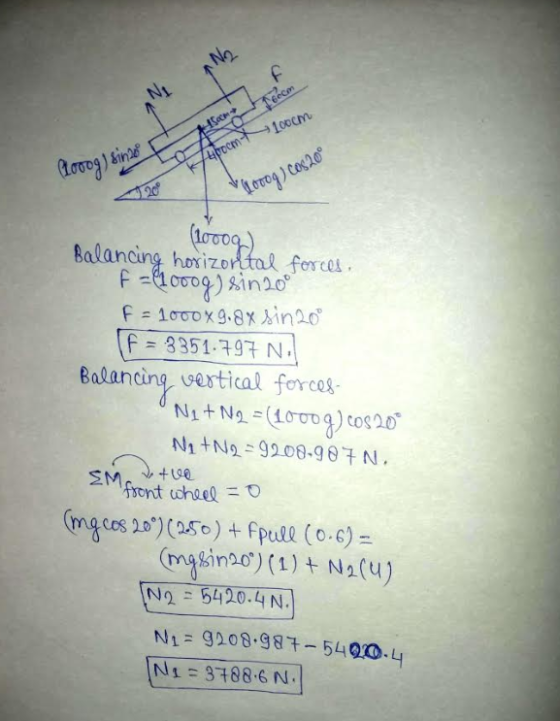

Answer #1

0 0
