Give a simple example of a directed graph with negative weight edges for which Dijkstra’s algorithm...

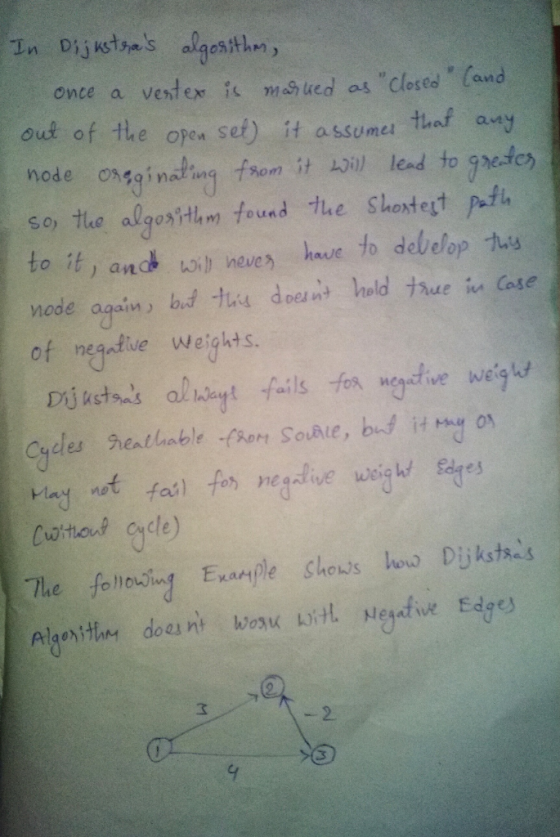

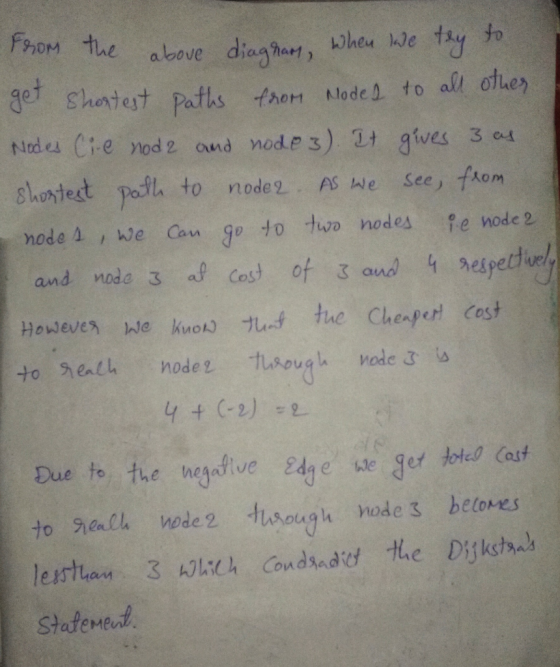

Give a simple example of a directed graph with negative weight edges for which Dijkstra’s algorithm produces incorrect answers. Why doesn’t the proof of Theorem 24.6 go through when negative-weight edges are allowed? NO NEGATIVE WEIGHT CYCLES!!
Homework Answers
Add Answer to:
Give a simple example of a directed graph with negative weight
edges for which Dijkstra’s algorithm...
24.3-2 Introduction to Advanced Algorithms, Third Edition Give a simple example of a directed graph with...
24.3-2 Introduction to Advanced Algorithms, Third Edition Give a simple example of a directed graph with negative-weight edges for which Dijkstra’s algorithm produces incorrect answers. Why doesn’t the proof of Theorem 24.6 go through when negative-weight edges are allowed?
3. Give an efficient algorithm that takes as input a directed graph G-(V,E) with edges labeled wi...
Please show your work
3. Give an efficient algorithm that takes as input a directed graph G-(V,E) with edges labeled with either 0 or 1, and vertices s and t that ouputs TRUE if and only if there is a path (not necessarily simple) that goes from s to t such that the binary sequence of edges in the path avoids the substring "11" and outputs FALSE otherwise. (For example, the string 10100010 avoids 11 but the string 00101101110 does...
Run the Dijkstra’s algorithm on the directed graph of the following figure 24.6, using vertex t...
Run the Dijkstra’s algorithm on the directed graph of the
following figure 24.6, using vertex t as
the source. In the style of Figure 24.6, show the d and
? values and the vertices in set S after each iteration of
the while loop.
1 8 10 I 10 14 4 6 4 6 2 3 2 3 4 6 5 5 2 (a) (c) 1 10 13 4 6 (d) (e) Figure 24.6 The execution of Dijkstra's algorithm. The...
6. Dijkstra's Algorithm assumes that all edge weights in a given weighted directed graph G =...
6. Dijkstra's Algorithm assumes that all edge weights in a given weighted directed graph G = (VAE) are nonnegative. However, if we apply Dijkstra's Algorithm to the graph G where the edge weights may be negative, Dijkstra's Algorithm may produce incorrect answers. Show such an example where Dijkstra's Algorithm may produce incorrect answers. Then, explain why such incorrect answers happen. (15 pts]
5. (10 pts) Give a concrete example of a directed and weighted graph G and two...
5. (10 pts) Give a concrete example of a directed and weighted graph G and two vertices u and v, where the Dijkstra's algorithm does not find the shortest path from u to v in G but the Bellman-Ford algorithm does. Obviously such a graph must have at least one negative- weight edge.
Question 1.) Given a directed negative weights Graph what is the most efficient algorithm to detect...
Question 1.) Given a directed negative weights Graph what is the most efficient algorithm to detect a cycle. What is the most efficient method to detect a cycle? Question 2.)Let A= student id last digit % 4 and add 1. For example mine student id is 7. So 7%4=3 and add 1 -->A=4 Run DFS starting at node a, and breaking ties alphabetically(in this case numerically as nodes have numbers where 1 goes before 2). Please label just back edges....
I have done the a and b, but i'm so confuse with other questions, could someone help me to fix these questions, thanks so much. 4 Directed graphs Directed graphs are sometimes used operating syst...
I have done the a and b, but i'm so confuse with other
questions, could someone help me to fix these questions, thanks so
much.
4 Directed graphs Directed graphs are sometimes used operating systems when trying to avoid deadlock, which is a condition when several processes are waiting for a resource to become available, but this wil never happen because Page 2 p2 T2 Figure 1: Minimal example of a resource allocation graph with deadlock other processes are holding...
Please follow all the instructions and do all the parts (a-d)! Create a Java program which implem...
Please follow all the instructions and do all the parts
(a-d)!
Create a Java program which implements Dijkstra’s shortest path
algorithm according to the psueudocode below. Base the design on
the weighted graph implementation used in Problem3.java (provided
at the bottom). Your program should include the following
features:
a. A new method receives a starting vertex index and a target
vertex index (e.g. 0 and 4). It computes the shortest distances to
all vertexes using Dijkstra’s algorithm. The pseudocode is...
Creating a simple graph in C++; need solution ASAP. EDIT: Pls comment letting me know what...
Creating a simple graph in C++; need solution ASAP. EDIT: Pls comment letting me know what other information you need rather than just "..." Thank you. Here is the assignment: In this final practice problem, you’ll: read a set of data representing a directed, unweighted graph build an in-memory graph structure using the data display the graph using depth-first traversal display the graph using breadth-first traversal Input data - The data consists of records like this: 16 3 15 4...
**Only [Harder] Question** Problem 2. Consider a firm that has a cost function of c(y) =...
**Only [Harder] Question** Problem 2. Consider a firm that has a cost function of c(y) = 5y 2 + 50, 000. In other words, this is a firm with a fixed cost of $50,000 (which might be something like the cost of rent on the firm’s building, which they have to pay whether they produce any output or not) and a variable cost of $5Y 2 , (which we’ll think of as the cost of the labor and machinery necessary...
Please show your work
3. Give an efficient algorithm that takes as input a directed graph G-(V,E) with edges labeled with either 0 or 1, and vertices s and t that ouputs TRUE if and only if there is a path (not necessarily simple) that goes from s to t such that the binary sequence of edges in the path avoids the substring "11" and outputs FALSE otherwise. (For example, the string 10100010 avoids 11 but the string 00101101110 does...
Run the Dijkstra’s algorithm on the directed graph of the
following figure 24.6, using vertex t as
the source. In the style of Figure 24.6, show the d and
? values and the vertices in set S after each iteration of
the while loop.
1 8 10 I 10 14 4 6 4 6 2 3 2 3 4 6 5 5 2 (a) (c) 1 10 13 4 6 (d) (e) Figure 24.6 The execution of Dijkstra's algorithm. The...
6. Dijkstra's Algorithm assumes that all edge weights in a given weighted directed graph G = (VAE) are nonnegative. However, if we apply Dijkstra's Algorithm to the graph G where the edge weights may be negative, Dijkstra's Algorithm may produce incorrect answers. Show such an example where Dijkstra's Algorithm may produce incorrect answers. Then, explain why such incorrect answers happen. (15 pts]
5. (10 pts) Give a concrete example of a directed and weighted graph G and two vertices u and v, where the Dijkstra's algorithm does not find the shortest path from u to v in G but the Bellman-Ford algorithm does. Obviously such a graph must have at least one negative- weight edge.
Question 1.) Given a directed negative weights Graph what is the most efficient algorithm to detect a cycle. What is the most efficient method to detect a cycle? Question 2.)Let A= student id last digit % 4 and add 1. For example mine student id is 7. So 7%4=3 and add 1 -->A=4 Run DFS starting at node a, and breaking ties alphabetically(in this case numerically as nodes have numbers where 1 goes before 2). Please label just back edges....
I have done the a and b, but i'm so confuse with other
questions, could someone help me to fix these questions, thanks so
much.
4 Directed graphs Directed graphs are sometimes used operating systems when trying to avoid deadlock, which is a condition when several processes are waiting for a resource to become available, but this wil never happen because Page 2 p2 T2 Figure 1: Minimal example of a resource allocation graph with deadlock other processes are holding...
Please follow all the instructions and do all the parts
(a-d)!
Create a Java program which implements Dijkstra’s shortest path
algorithm according to the psueudocode below. Base the design on
the weighted graph implementation used in Problem3.java (provided
at the bottom). Your program should include the following
features:
a. A new method receives a starting vertex index and a target
vertex index (e.g. 0 and 4). It computes the shortest distances to
all vertexes using Dijkstra’s algorithm. The pseudocode is...
