A tetragonal lattice has the following lattice constants: ? = ? = 2.4 Å? = 3.05ÅWhat...

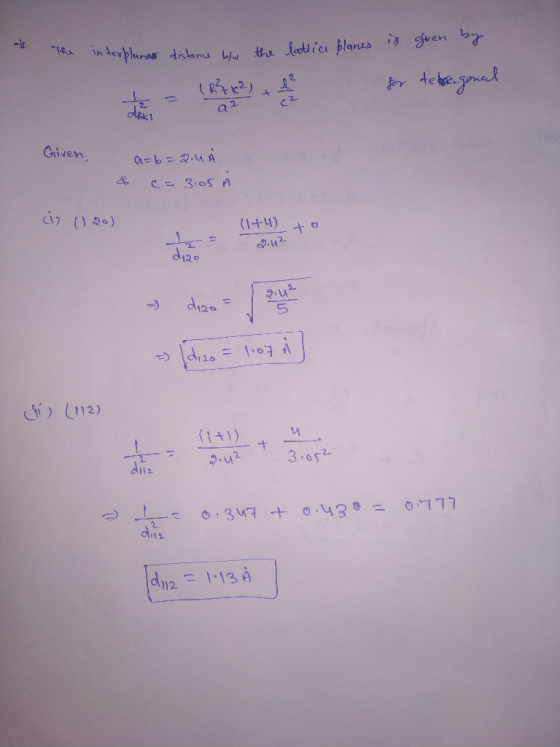

A tetragonal lattice has the following lattice constants:
? = ? = 2.4 Å? = 3.05ÅWhat are the interplanar distances for the
(120) and (112) planes? Hint: First, try to find the value of the
common factor ? that has beenused to derive these Miller
indices.
Homework Answers
