A double slit with a slit separation of 2.00 * 10-5 m is illuminated at normal...

A double slit with a slit separation of 2.00 * 10-5 m is illuminated at normal incidence with light of two wavelengths, 535 nm and 400 nm. Locate the first five interference maxima on a screen 3.00 m from the slits. Do these maxima overlap for orders other than m = 0?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

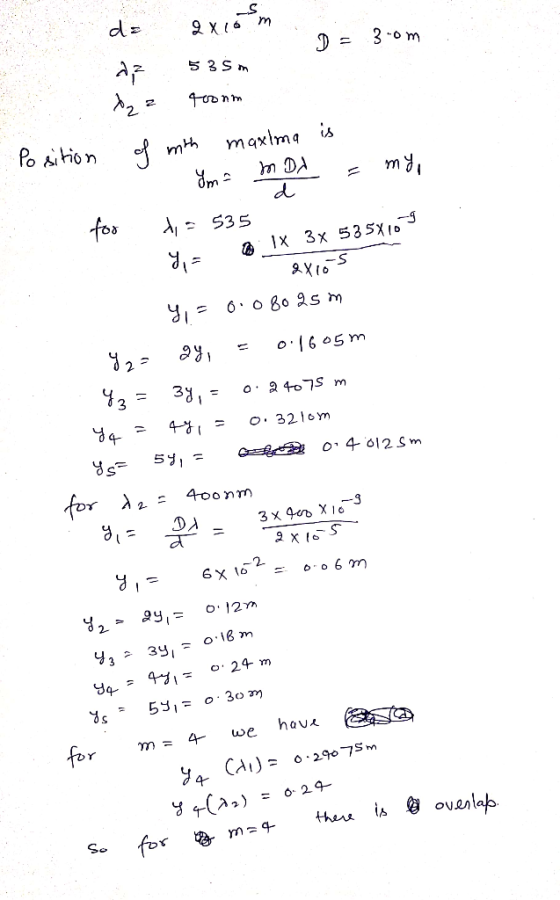

Answer #1

0 0
