A magnetic field of 37.2 T has been achieved at the MIT Francis Bitter National Magnetic...

A magnetic field of 37.2 T has been achieved at the MIT Francis Bitter National Magnetic Laboratory. Find the current needed to achieve such a field

Part A

2.2 cm from a long, straight wire

part B

at the center of a circular coil of radius 44 cm that has 100 turns

part C

near the center of a solenoid with radius 2.6 cm , length 34 cm , and 40,000 turn

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

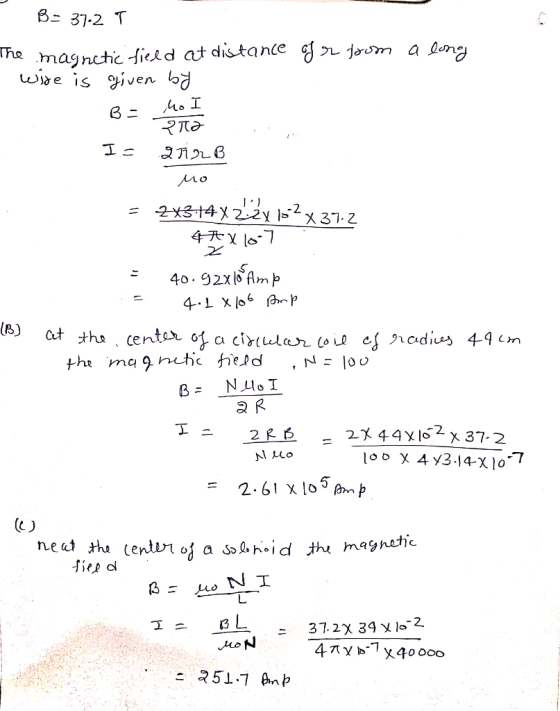

Answer #1

0 0
Add a comment
