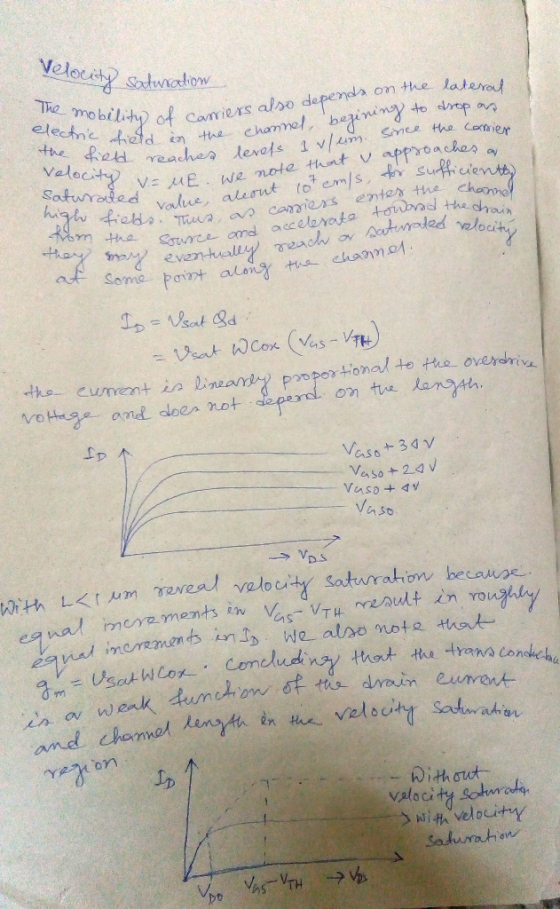

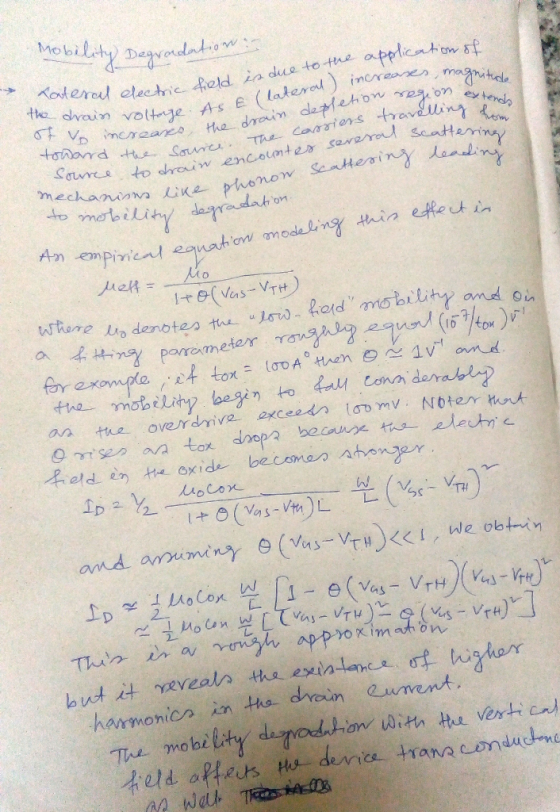

What are mobility degradation and velocity saturation respectively?

What are mobility degradation and velocity saturation respectively?

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
What are mobility degradation and velocity saturation respectively?
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Q1 Which of the following is true about the surface mobility of MOSFETs ? Select one:...

    Q1 Which of the following is true about the surface mobility of MOSFETs ? Select one: a. Surface mobility goes up as electric field strength increases b. Surface mobility stays the same when silicon is put under mechanical stress c. Surface mobility is the same regardless of the surface orientation of the silicon crystal d. None of these e. Surface mobility is higher for holes than it is for electrons Q2 What is the drain current in microamps for an...

  • The mobility and carrier density of Al are 12 cm2/Vs and 1.98×1023 cm−3, respectively. The mobility...

    The mobility and carrier density of Al are 12 cm2/Vs and 1.98×1023 cm−3, respectively. The mobility and carrier density of Cu are 43.2 cm2/Vs and 8.5×1022 cm−3, respectively. a) Calculate the resisitivity of Al and Cu b) Which one would you use as interconnects in advanced CMOS nodes?

  • true or false 55. Velocity saturation leads the MOSFET to reach operation in saturation at a...

    true or false 55. Velocity saturation leads the MOSFET to reach operation in saturation at a smaller voltage Vps 56. The saturation current in short channel MOSFET's increases due to velocity saturation 57. The MOSFET transconductance is exponentially dependent on the drain current 58. In velocity saturation regime short channel MOSFET's transconductance are independent of the input voltage 59. Sub-threshold conduction in short channel MOSFET's relates to tunneling through the ultrathin oxide 60. Sub-threshold current is linearly dependent on the...

  • what is downward mobility

    what is downward mobility

  • Amigo Mobility, which manufactures battery-powered mobility scooters, has $665,000 to invest. The company is considering...

    Amigo Mobility, which manufactures battery-powered mobility scooters, has $665,000 to invest. The company is considering three different battery projects that will yield the following rates of return: Deep cycle = 15% Wet/flooded = 37% Lithium ion = 20% The initial investment required for each project is $165,000, $100,000, and $400,000, respectively. If Amigo’s invests in all three projects, what will be its overall rate of return?

  • Vital Signs: Oxygen Saturation (Pulse Oximetry) a. What does “oxygen saturation” mean. b. What is acceptable...

    Vital Signs: Oxygen Saturation (Pulse Oximetry) a. What does “oxygen saturation” mean. b. What is acceptable range for oxygen saturation. c. List 5 factors that affect accurate interpretation of Pulse Oxygen Saturation (Sp02).

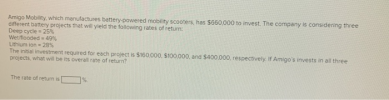

  • Amigo Mobility, which manufactures battery-powered mobility scooters, has $660,000 to invest. The company is considering three...
