Suppose you are designing a tidal barrage that is rated at 4.5 kW with a mass...

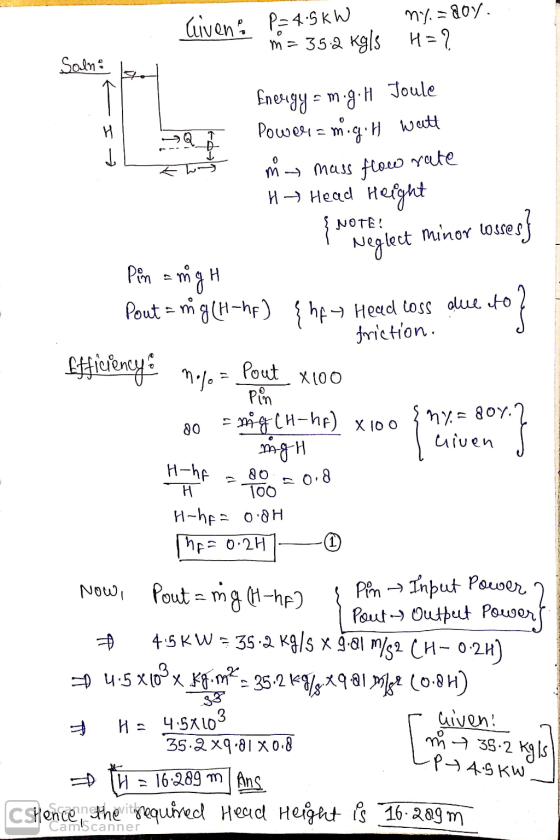

Suppose you are designing a tidal barrage that is rated at 4.5 kW with a mass flow rate of 35.2kg/s. What would the head height need to be for this barrage? Assume 80 % efficiency.

engineering   Civil-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Suppose you are designing a tidal barrage that is rated at 4.5 kW with a mass...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Suppose a hydroelectric power plant is rated at (3.0x10^0) kW with a (5.200x10^1) % efficiency. If...

    Suppose a hydroelectric power plant is rated at (3.0x10^0) kW with a (5.200x10^1) % efficiency. If the mass flow rate is (1.22x10^1)kg/s, what is the total head height needed for the barrage? Report your answer in ft to 2 sig figs, rounded to the nearest whole number?

  • Suppose your waffle iron is rated at 1.90 kW when connected to a 3.60 x 102...

    Suppose your waffle iron is rated at 1.90 kW when connected to a 3.60 x 102 V source (a) What current does the waffle iron carry? (b) What is its resistance? Need Help? 8. -12 points SerCP11 17.P.044 Batteries are rated in terms of ampere-hours (A . h).For example, a battery that can deliver a current of 3.0 A for 5.0 h is rated at 15 A h (a) What is the total energy, in kilowatt-hours, stored in a 9-V...

  • You are designing a hydroelectric plant. The turbine has an efficiency of 88% and the generator...

    You are designing a hydroelectric plant. The turbine has an efficiency of 88% and the generator has an efficiency of 92%. You design the water flow rate to be 110 m3/s. The water elevation drop is 120 m. Disregarding frictional loss in the piping, what do you expect the electric power output to be in MW?

  • A 4-kW pump operating at steady state draws in liquid water at 100 kPa, 15?C with...

    A 4-kW pump operating at steady state draws in liquid water at 100 kPa, 15?C with a mass flow rate of 4.5 kg/s and delivers water at 1 MPa pressure. Ignore the kinetic and potential energy changes from inlet to exit. Determine (a) the isentropic efficiency of the pump and (b) whether the power input rating is adequate

  • A 3 litre, four-stroke, four-cylinder CI engine running at 3000 rpm produces 48 kW of brake...

    A 3 litre, four-stroke, four-cylinder CI engine running at 3000 rpm produces 48 kW of brake power. Brake thermal efficiency is 30% and the calorific value of fuel is 42 MJ/kg. Assume density of air at ambient condition is 1.1.81 kg/m3, air-fuel ratio 21:1 and mechanical efficiency 0.8. Determine: (a) Rate of fuel flow into the engine (kg/s) (b) Rate of air flow into the engine (kg/s)   (c) Mass rate of exhaust flow (kg/s) (d) Volumetric efficiency (e) Indicated thermal...

  • A motor which is used to rotate a pump consumes 20 kW energy. Its efficiency is...

    A motor which is used to rotate a pump consumes 20 kW energy. Its efficiency is 85%. a. What is the power delivered to the pump by the motor? b. The pump whose pipe diameter is 10 cm delivers the water at a mass flow rate 3 kg/s. What is the velocity of water? Assume density of water is 1000 kg/m3.

  • show work and clearly indicate answer(s) .- A pump that delivers 4.5 kw to the water...

    show work and clearly indicate answer(s) .- A pump that delivers 4.5 kw to the water ( 0 =0.898 x 10-6 m²/s : p=997.1 kg/m) is used to fill a cylindrical tank as shown, calculate the flow rate and the depth of the water in the cylindrical tank 5 minutes after the pump is started. Assume the sum of the loss coefficients of the fittings =12.8 2 m d 100 mm mooth pipe pelength - 50m 12 m B 2...

  • Problem 9 Suppose you are designing a section of the German Autobahn. What bank angle do...

    Problem 9 Suppose you are designing a section of the German Autobahn. What bank angle do we need to choose in order to provide horizontal position of a passenger car on an R-200 m circular track passing at 200 km/h? (Consider the roll-effect derived from lateral acceleration. Assume that the chassis is connected to the wheels with springs. You essentially need to design the road to undo the rolling the passengers are experiencing). Assume commercially available springs. Problem 9 Suppose...

  • a pump that delivers 4.5 kw to the water (v=0.898x10^-6 m^2/s ; p=99.1kg/m^3) is used to...

    a pump that delivers 4.5 kw to the water (v=0.898x10^-6 m^2/s ; p=99.1kg/m^3) is used to fill a cylindrical tank as shown, calculate the flow rate and the depth of the water in the cylindrical tank 5 minutes after the pump is started. Assume the sum of the loss coefficients of the fittings=12.8 B 2 m d=100 mm smooth pipe Pipe length = 50 m 12 m 19 A

  • 2. Suppose you have a string with linear mass density 4.5 g/m, with two fixed ends...

    2. Suppose you have a string with linear mass density 4.5 g/m, with two fixed ends 10 Suppose you have a string with linear mass density 4.5 g apart. What is the velocity of a wave on the string if the tension of the string is supplied by a hanging mass of 275 g? 3. For the previous question, what are the three lowest frequencies that you could observe a standing wave?
