Consider the sinusoidal voltage v(t)=20cos(100πt+60∘)V. Part G: What is the first time after t=0 that v=−20V?...

Consider the sinusoidal voltage
v(t)=20cos(100πt+60∘)V.

Part G:

What is the first time after t=0 that v=−20V? Express your answer to three significant figures and include the appropriate units.

Part I:

What is the minimum value of milliseconds that the function must be shifted to the left if the expression for v(t) is 20sin(100πt)V? Express your answer in milliseconds to three significant figures.

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

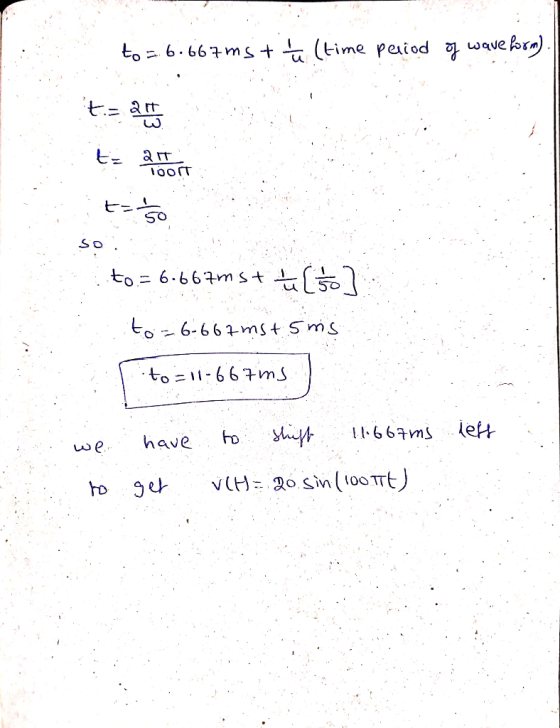

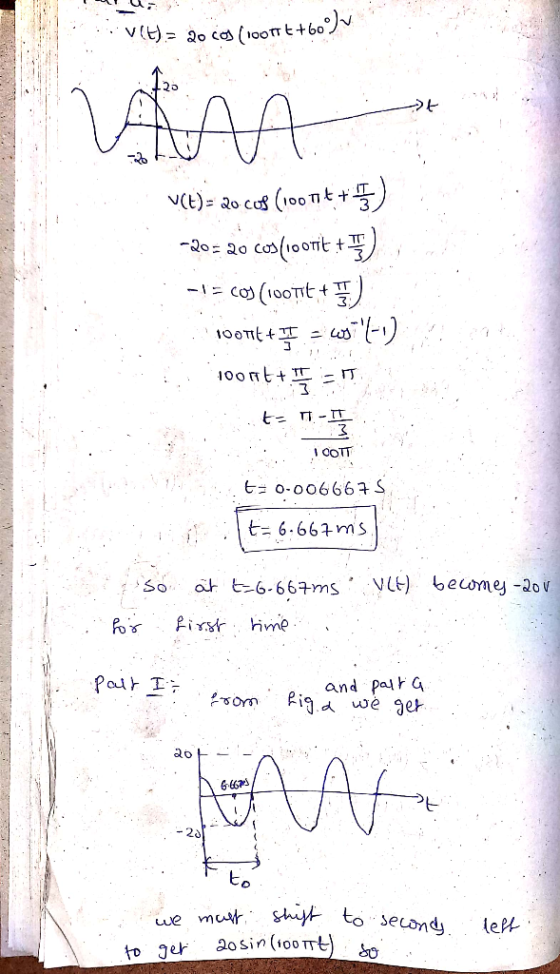

Answer #1

0 0
Add a comment
