An Atwood Machine is used to accelerate a 1 kg block upward, using a 10000 kg...

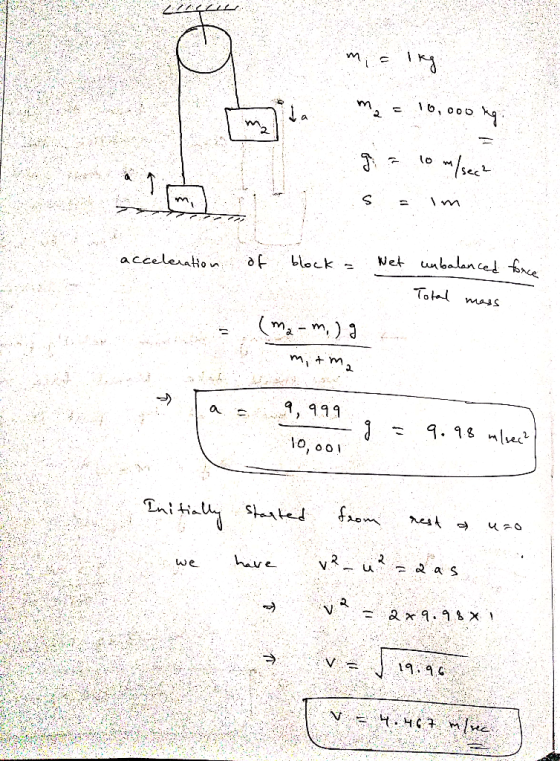

An Atwood Machine is used to accelerate a 1 kg block upward, using a 10000 kg block, as shown in the left- hand caption of Figure 1. The pulley and string is ideal.
- What is the acceleration of the block?

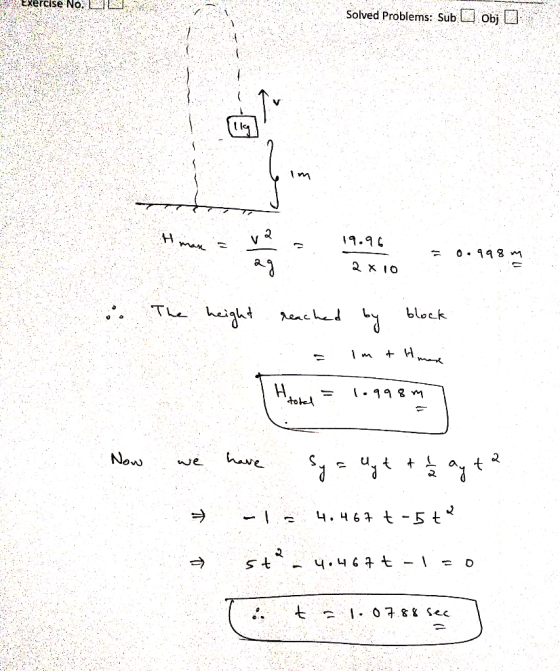

After the 1kg block travels upward 1 meter, it disconnects from the Atwood Machine and flies upward. As depicted in the right-hand caption of Figure 1.
- How high does the block travel?
- How long is the block in the air?
Homework Answers
Add Answer to:
An Atwood Machine is used to accelerate a 1 kg block upward,
using a 10000 kg...
Problem 9.38 10 of 19 > Review Constants Periodic Table In an Atwood machine, block 1 with mass mi and a loss ma...
Problem 9.38 10 of 19 > Review Constants Periodic Table In an Atwood machine, block 1 with mass mi and a loss massive block 2 with mass are connected by a string that passes over a solid cylindrical pulley of mass M and radius R. Usemi 0.20 k m 0.16 kg. M = 0.50 kg, and R-0.10 m. (Figure 1) Determine the rotational inertia of the pulley Express your answer with the appropriate units. 1. Value Units Figure Submit Rest...
In the Atwood machine shown below, m1 = 2.00 kg and m2 = 6.00 kg. The...
In the Atwood machine shown below, m1 = 2.00 kg and m2 = 6.00 kg. The masses of the pulley and string are negligible by comparison. The pulley turns without friction and the string does not stretch. The lighter object is released with a sharp push that sets it into motion at vi = 2.20 m/s downward. (a) How far will m1 descend below its initial level? 1 m In the Atwood machine shown below, m1 = 2.00 kg and...
In the Atwood machine shown in (Figure 1) , the pulley radius is 0.10 m ,...
In the Atwood machine shown in (Figure 1) , the pulley radius is
0.10 m , and the rotational inertia of the pulley is 0.17 kg?m2 .
Ignore the cord's inertia.
A)Calculate the acceleration of the
blocks.
B)Calculate the tension in the cord on the left
C)Calculate the tension in the
cord on the right.
An Atwood machine is constructed using a hoop with spokes of negligible mass. The 2.3 kg...
An Atwood machine is constructed using a hoop with spokes of negligible mass. The 2.3 kg mass of the pulley is concentrated on its rim, which is a distance 23.5 cm from the axle. The mass on the right is 1 kg and on the left is 1.65 kg. The acceleration of gravity is 9.8 m/s^2. What is the magnitude of the linear acceleration a of the hanging masses?
In the Atwood machine shown in Figure 5.14a, m1 = 2.00 kg and m2 = 8.00 kg
In the Atwood machine shown in Figure 5.14a, m1 = 2.00 kg and m2 = 8.00 kg. The masses of the pulley and string are negligible by comparison. The pulley turns withoutfriction and the string does not stretch. The lighter object is released with a sharp push that sets it into motion at vi = 2.00 m/s downward.Figure 5.14a(a) How far will m1 descend below its initial level?_______m(b) Find the velocity of m1 after 1.80 s._______m/s
An Atwood machine consists of two masses ?1 and ?2 (with ?1 > ?2) attached to...
An Atwood machine consists of two masses ?1 and ?2 (with ?1 > ?2) attached to the ends of a light string that passes over a light, frictionless pulley. When the masses are released, the mass ?1 is easily shown to accelerate down with an acceleration ? = ? ((?1 − ?2) / ( ?1 + ?2)). Suppose that ?1 and ?2 are measured as ?1 = 100 ± 1 ???? and ?2 = 50 ± 1 ????. Derive a...
In the atwood machine shown below l, m1= 2.00 kg and m2= 7.70 kg. the masses...
In
the atwood machine shown below l, m1= 2.00 kg and m2= 7.70 kg. the
masses of the pulley and string are negligible by comparison. The
pulley turns without friction and the string does not stretch. The
lighter object is released with a sharp push that sets it into
motion at v -initial= 2.60 m/s downward.
Figure and question are in diagram ( picture below)
In the AtwOOdl motion at n = 2.60 m/s downward. mi 2 (a) How far...
1.A block of mass m = 5.00 kg is pulled along a horizontal frictionless floor by...
1.A block of mass m = 5.00 kg is pulled along a horizontal frictionless floor by a cord that exerts a force of magnitude F = 12.0 N at an angle θ = 25o . (a) Draw the free body diagram of the block. (b) Find the normal force. 2.Two crates are at rest on frictionless horizontal surface. Both crates are connected by a light rope. A woman wearing golf shoes (so she can get traction on the ice) pulls...
An Atwood Machine is composed of a frictionless pulley with two cubes connected by a string'...
An Atwood Machine is composed of a frictionless pulley with two cubes connected by a string' Cube A, on the left, has a mass of 4.0kg and cube B, on the right has a mass of 6.0kg. The pulley has a rotational inertia of 1/2 MR2. How does that affect the acceleration of the masses. Would tension A be the same as tension B? Why or why not?
An Atwood machine consists of two masses, mA= 63 kg and mB = 71 kg ,...
An Atwood machine consists of two masses, mA= 63 kg and mB = 71 kg , connected by a massless inelastic cord that passes over a pulley free to rotate (Figure 1). The pulley is a solid cylinder of radius R = 0.40 mm and mass 5.0 kg. [Hint: The tensions FTA and FTB are not equal.] Acceleration of each mass is 0.57 m/s2 What % error would be made if the moment of inertia of the pulley is ignored?...
Problem 9.38 10 of 19 > Review Constants Periodic Table In an Atwood machine, block 1 with mass mi and a loss massive block 2 with mass are connected by a string that passes over a solid cylindrical pulley of mass M and radius R. Usemi 0.20 k m 0.16 kg. M = 0.50 kg, and R-0.10 m. (Figure 1) Determine the rotational inertia of the pulley Express your answer with the appropriate units. 1. Value Units Figure Submit Rest...
In the Atwood machine shown in (Figure 1) , the pulley radius is
0.10 m , and the rotational inertia of the pulley is 0.17 kg?m2 .
Ignore the cord's inertia.
A)Calculate the acceleration of the
blocks.
B)Calculate the tension in the cord on the left
C)Calculate the tension in the
cord on the right.
An Atwood machine is constructed using a hoop with spokes of negligible mass. The 2.3 kg mass of the pulley is concentrated on its rim, which is a distance 23.5 cm from the axle. The mass on the right is 1 kg and on the left is 1.65 kg. The acceleration of gravity is 9.8 m/s^2. What is the magnitude of the linear acceleration a of the hanging masses?
In
the atwood machine shown below l, m1= 2.00 kg and m2= 7.70 kg. the
masses of the pulley and string are negligible by comparison. The
pulley turns without friction and the string does not stretch. The
lighter object is released with a sharp push that sets it into
motion at v -initial= 2.60 m/s downward.
Figure and question are in diagram ( picture below)
In the AtwOOdl motion at n = 2.60 m/s downward. mi 2 (a) How far...
