A circular coil of radius 0.140 m contains a single turn and is located in a...

A circular coil of radius 0.140 m contains a single turn and is located in a constant magnetic field of magnitude 0.250 T. The magnetic field has the same direction as the normal to the plane of the coil. The radius increases to 0.290 m in a time of 0.0850 s. (a) Determine the magnitude of the emf induced in the coil. (b) The coil has a resistance of 0.670 Ω. Find the magnitude of the induced current.

please explain in detail.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

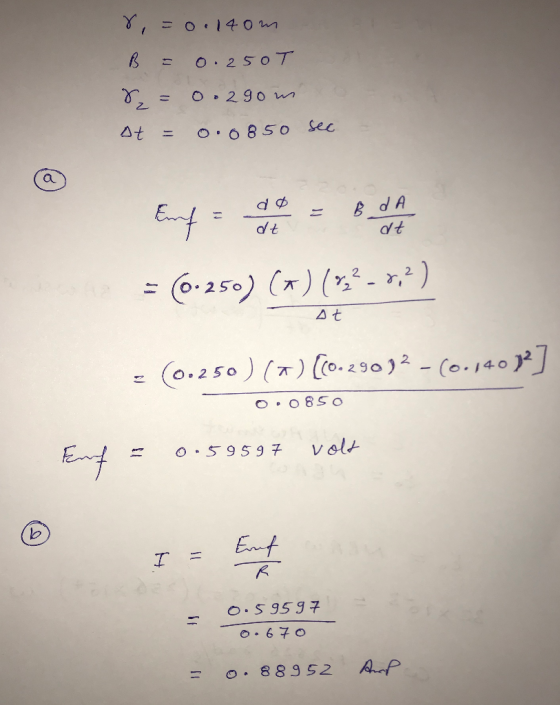

Answer #1

0 0
Add a comment
