Two charges are +4? and – 5? located along the x-axis at locations ? = 0.0...
Two charges are +4? and – 5? located along the x-axis at locations ? = 0.0 ? and ? = 1.0 ? respectively.
Region I… to the left of +4?
Region II … between the charges
Region III … to the right of the −5? charge
a) The electric field is equal to zero at some point along the x-axis (aside from ? → ±∞). In which region(s) does this occur? Explain your reasoning.
b) The electric potential is equal to zero at some point along the x-axis (aside from ? → ±∞). In which region(s) does this occur? Explain your reasoning.
Homework Answers

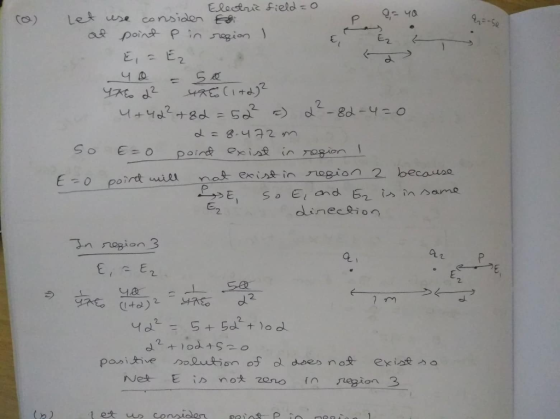

electric field is zero in Region 1 that is to the left of +4Q

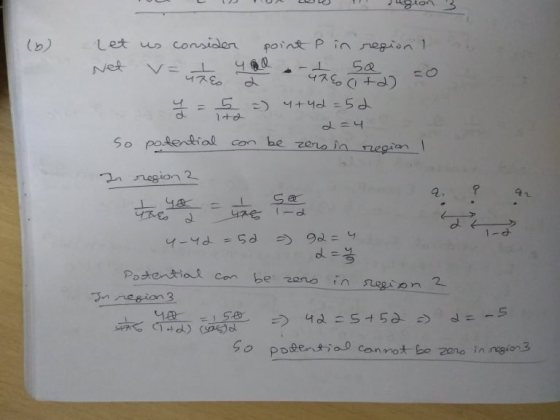

Potential is zero in region 1 and 2 that is between the charges
Add Answer to:
Two charges are +4? and – 5? located along the x-axis at
locations ? = 0.0...

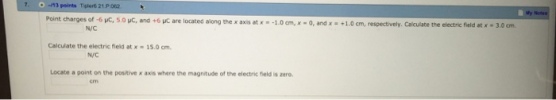

Point charges of -6 mue C, and +6 mue C are located along the x axis...
