A charge q1 of +3.0 x10^-6C is held at (-12, 0) (cm) . Another charge q2...
A charge q1 of +3.0 x10^-6C is held at (-12, 0) (cm) . Another charge q2 of the same magnitude is held at (12,0). The third charge q3 is held at (0,8) = -6x10^-6C

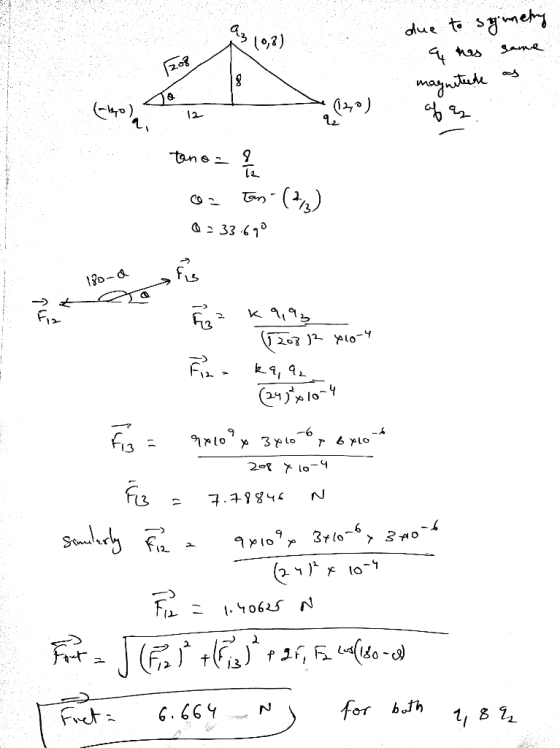

a) What is the magnitude of the net force on charge q1 and q2

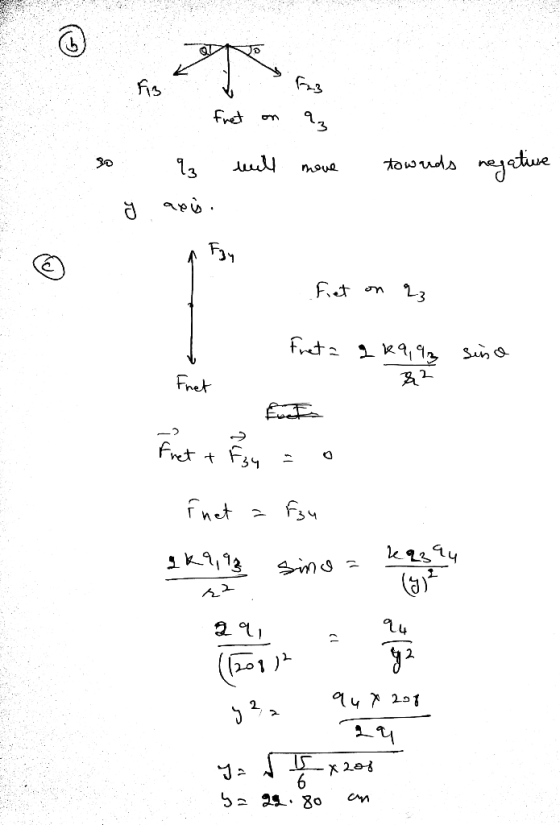

b) If q3 were to be released what direction and angle will it move in

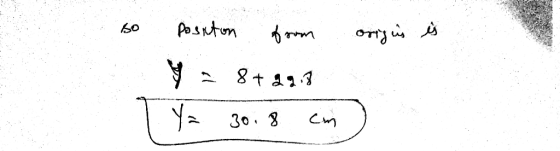

c) At what point on the plane would a charge q4 of +15x 10^-6 be placed so that net force is 0 from q3
Homework Answers
Add Answer to:
A charge q1 of +3.0 x10^-6C is held at (-12, 0) (cm) . Another
charge q2...
A charge of q1 of +4uC is held at (-7cm, 0cm). A second charge q2 of...
A charge of q1 of +4uC is held at (-7cm, 0cm). A second charge q2 of +4uC is held at (7cm, 0cm). A third charge q3 of -6uC is held at (0cm, 10cm). What is the magnitude of the net force on charge q1? What is the magnitude of the net force on charge q3? At what point on the x-y plane would a charge q4 of 15uC be placed so that q3 will feel zero net force?
Charge q1= 2.0nC is located at (-1.0 cm, 0), charge q2= -2.0nC is located at (1...
Charge q1= 2.0nC is located at (-1.0 cm, 0), charge q2= -2.0nC is located at (1 cm, 0) and charge q3=6nC is located at (0, 3cm). What is the net electric force (magnitude and direction) on q3? Sketch a diagram with all forces on Q3. What is the net electric force (magnitude and direction) on Q1? Sketch a diagram with all forces on Q1.
Charge q1 = 2.0 nC is located at (-1.0 cm, 0), charge q2 = -2.0 nC...
Charge q1 = 2.0 nC is located at (-1.0 cm, 0), charge q2 = -2.0 nC is located at (1.0 cm, 0) and charge q3 = 6.0nC is located at (0, 3.0 cm). What is the net electric force (magnitude and direction) on q1? Sketch a diagram with all forces on q1 and clearly show all work.
The position of two charged particles are held fixed in an xy−plane. The charges are q1...
The position of two charged particles are held fixed in an xy−plane. The charges are q1 = +3.0 mC, at x1 = 3.5 cm and y1 = 0.50 cm, and q2 = −4.0 mC, x2 = 2.0 cm, y2 = 1.5 cm. a) Find the magnitude and direction of the electrostatic force on particle 2 due to particle 1. b) At what x and y coordinates should a third particle of charge q3 = 4.0 mC be placed such that...
A charge Q2 = -9.00 x 10^-6 is 20cm to the right of charge Q1 =...
A charge Q2 = -9.00 x 10^-6 is 20cm to the right of charge Q1 =
12.00 x 10^-6C. Where can a third charge be placed, along the line
connecting Q1 and Q2, such that it experiences a net force (other
than +/- infinity)? Give distances relative to Q1 and use a plus
sign if the third charge is to the right of Q1 (and - if it is to
the left)
Problem5 A charge, Q2 -9.00x106 C, is 20.00...
Consider two charges, q1 = Q at (0, 0) and q2 = Q at (a, 2a)....
Consider two charges, q1 = Q at (0, 0) and q2 = Q at (a, 2a). (a) What is the force on a third charge, q3 = Q at (0, 2a)? (b) Where should a fourth charge, q4 = Q, be placed so that the force on q3 is zero?
Question 2 Three charges are arranged in a line as shown below, where 0,- -2.77x10-6C, Q2...
Question 2 Three charges are arranged in a line as shown below, where 0,- -2.77x10-6C, Q2 - 7.92 x10-6C.03 - 7.61x106c 14 - 13 x 10-2 m, r2 = 53.8 x10-2 m. r1 2 Q1 Q2 What is the magnitude of the net electrostatic force acting on Q3, in units of newtons? Give the answer as a positive number. A Moving to another question will save this response.
Example: Charge q1-3.0 HC is at (4.0 cm, 4.0 cm), charge q2 +1.0 uC is at...
Example: Charge q1-3.0 HC is at (4.0 cm, 4.0 cm), charge q2 +1.0 uC is at (0.0 cm, 0.0 cm), and charge q3 +6,0 HC is at (-5.0 cm, 0.0 cm). Find net force on the third charge. (Solution: F3-9.2 N, e,-131.90)
A point charge q1-3.8 C is located at the origin of a co-ordinate system. Another point charge q2 = 7.5 pC is located along the x-axis at a distance x2 8.1 cm from q1 (91 1- 1) What is F12,x, the val...
A point charge q1-3.8 C is located at the origin of a co-ordinate system. Another point charge q2 = 7.5 pC is located along the x-axis at a distance x2 8.1 cm from q1 (91 1- 1) What is F12,x, the value of the x-component of the force that q1 exerts on q2? -39.09 Submit 2) q1 Charge qz is now displaced a distance y2 3.9 cm in the positive y-direction. What is the new value for the x-component of...
The charges and coordinates of two charged particles held fixed in the xy plane are: q1=3.40...
The charges and coordinates of two charged particles held fixed in the xy plane are: q1=3.40 ?C, x1=0.300 cm, y1=7.400 cm, and q2=3.20 ?C, x2=4.444 cm, y2=8.549 cm, Find the magnitude and direction of the electrostatic force on q2. What are the x and y coordinates of a third charge q3=3.90 ?C, if the net electrostatic force on q2 is zero?
A charge Q2 = -9.00 x 10^-6 is 20cm to the right of charge Q1 =
12.00 x 10^-6C. Where can a third charge be placed, along the line
connecting Q1 and Q2, such that it experiences a net force (other
than +/- infinity)? Give distances relative to Q1 and use a plus
sign if the third charge is to the right of Q1 (and - if it is to
the left)
Problem5 A charge, Q2 -9.00x106 C, is 20.00...
Question 2 Three charges are arranged in a line as shown below, where 0,- -2.77x10-6C, Q2 - 7.92 x10-6C.03 - 7.61x106c 14 - 13 x 10-2 m, r2 = 53.8 x10-2 m. r1 2 Q1 Q2 What is the magnitude of the net electrostatic force acting on Q3, in units of newtons? Give the answer as a positive number. A Moving to another question will save this response.
Example: Charge q1-3.0 HC is at (4.0 cm, 4.0 cm), charge q2 +1.0 uC is at (0.0 cm, 0.0 cm), and charge q3 +6,0 HC is at (-5.0 cm, 0.0 cm). Find net force on the third charge. (Solution: F3-9.2 N, e,-131.90)
A point charge q1-3.8 C is located at the origin of a co-ordinate system. Another point charge q2 = 7.5 pC is located along the x-axis at a distance x2 8.1 cm from q1 (91 1- 1) What is F12,x, the value of the x-component of the force that q1 exerts on q2? -39.09 Submit 2) q1 Charge qz is now displaced a distance y2 3.9 cm in the positive y-direction. What is the new value for the x-component of...
