A current carrying circular loop of wire lies flat on a table top. When viewed from...
A current carrying circular loop of wire lies flat on a table top. When viewed from above, the current moves around the loop in a counterclockwise sense. What is the direction of the magnetic field caused by this current, inside the loop? Please explain!
Homework Answers

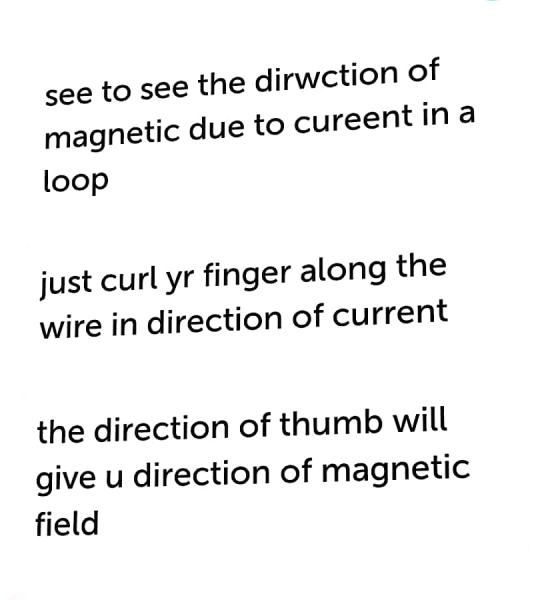

See the thumbAdd Answer to:
A current carrying circular loop of wire lies flat on a table
top. When viewed from...
A current carrying loop of wire lies flat on a table top. When viewed from above,...
A current carrying loop of wire lies flat on a table top. When viewed from above, the current moves around the loop in a counterclockwise sense. What is the direction of the magnetic field caused by this current, outside the loop? The magnetic field: A) circles the loop in a clockwise direction. B) circles the loop in a counterclockwise direction. C) points straight up. D) points straight down. Can someone explain why the correct answer is straight down by hand...
A flat circular loop of wire of radius R carrying a current I is placed in...
A flat circular loop of wire of radius R carrying a current I is placed in a uniform magnetic field B that is directed in the plane of the current loop. What is the magnetic moment M of the loop? What is the magnitude of the torque acting on the loop? In which direction the loop will rotate under the influence of this torque?
A circular loop of wire with area A lies in the xy-plane. As viewed along the...
A circular loop of wire with area A lies in the xy-plane. As viewed along the z-axis looking in the −z-direction toward the origin, a current I is circulating clockwise around the loop. The torque produced by an external magnetic field B⃗ is given by τ⃗ =D(3i^−3j^), where D is a positive constant, and for this orientation of the loop the magnetic potential energy U=−μ⃗ ⋅B⃗ is negative. The magnitude of the magnetic field is B0=15D/IA. Determine the component Bx of B⃗...
A circular loop of wire with area A lies in the y-plane. As viewed along the...
A circular loop of wire with area A lies in the y-plane. As viewed along the z axis looking in the -z direction toward the origin, a current I is circulating clockwise around the loop. The torque produced by an external magnetic field B is given by tau = D(4i - 4j), where D is a positive constant, and for this orientation of the loop the magnetic potential energy U = -mu middot B is negative. The magnitude of the...
A circular loop of wire with area A lies in the xy-plane. As viewed along the...
A circular loop of wire with area A lies in the xy-plane. As viewed along the z-axis looking in the −z-direction toward the origin, a current I is circulating clockwise around the loop. The torque produced by an external magnetic field B⃗ is given by τ⃗ =D(5i^−2j^), where D is a positive constant, and for this orientation of the loop the magnetic potential energy U=−μ⃗ ⋅B⃗ is negative. The magnitude of the magnetic field is B0=14D/IA. A) Determine the vector...
A circular loop of wire, with radius 22 cm and carrying a current of 0.30 A,...
A circular loop of wire, with radius 22 cm and carrying a current of 0.30 A, lies perpendicular to a magnetic field of 2.3*10^-3 T. (a) What is the torque on the current loop? (b) What is the energy of the loop in the magnetic field?
A long current-carrying wire, oriented North-South, lies on a table (it is connected to batteries which...
A long current-carrying wire, oriented North-South, lies on a table (it is connected to batteries which are not shown). A compass lies on top of the wire, with the compass needle about 3 mm above the wire. With the current running, the compass deflects 10 degrees to the West. At this location, the horizontal component of the Earth's magnetic field is about 2e-5 tesla. What is the magnitude of the magnetic field at location A, on the table top, a...
A flat rectangular wire loop is positioned next to a long straight current-carrying wire
Problem 6: A flat rectangular wire loop is positioned next to a long straight current-carrying wire. Both the loop and the wire are in the plane of the page, and the direction of the current is clearly indicated in the figure.Part (a) Which image best indicates the direction of the magnetic field due to the current in the long straight wire at a point inside the loop? Part (b) How does the magnitude of the magnetic field change as the perpendicular...
The drawing depicts a copper loop lying flat on a table (not shown) and connected to...
The drawing depicts a copper loop lying flat on a table (not shown) and connected to a battery via a closed switch. The current I in the loop generates the magnetic field lines shown in the drawing. The switch is then opened and the current goes to zero. There are also two smaller conducting loops A and B lying flat on the table, but not connected to batteries. Determine the direction of the induced current in (a) loop A and...
Parts A-E refer to the following figure of a circular loop of conducting wire
1) Parts A-E refer to the following figure of a circular loop of conducting wire. In the figure, Region I has a uniform magnetic field in the direction shown and Region II has no magnetic field. a) If the loop moves to the right and starts to move into Region II, what is the direction of the induced current in the wire? Circle the correct response. a) Clockwise. b) Counterclockwise. c) There is no induced current. b) If the loop moves straight down and remains...
A flat circular loop of wire of radius R carrying a current I is placed in a uniform magnetic field B that is directed in the plane of the current loop. What is the magnetic moment M of the loop? What is the magnitude of the torque acting on the loop? In which direction the loop will rotate under the influence of this torque?
A circular loop of wire with area A lies in the y-plane. As viewed along the z axis looking in the -z direction toward the origin, a current I is circulating clockwise around the loop. The torque produced by an external magnetic field B is given by tau = D(4i - 4j), where D is a positive constant, and for this orientation of the loop the magnetic potential energy U = -mu middot B is negative. The magnitude of the...
A long current-carrying wire, oriented North-South, lies on a table (it is connected to batteries which are not shown). A compass lies on top of the wire, with the compass needle about 3 mm above the wire. With the current running, the compass deflects 10 degrees to the West. At this location, the horizontal component of the Earth's magnetic field is about 2e-5 tesla. What is the magnitude of the magnetic field at location A, on the table top, a...
The drawing depicts a copper loop lying flat on a table (not shown) and connected to a battery via a closed switch. The current I in the loop generates the magnetic field lines shown in the drawing. The switch is then opened and the current goes to zero. There are also two smaller conducting loops A and B lying flat on the table, but not connected to batteries. Determine the direction of the induced current in (a) loop A and...
