Consider a box and sphere with the same mass. When released, the box slides down a...

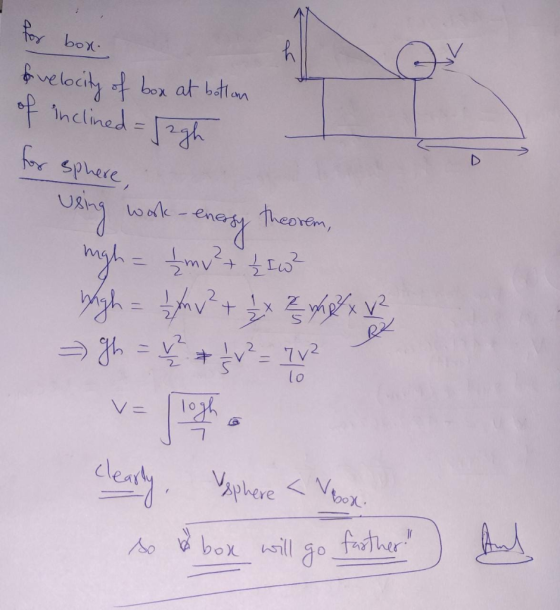

Consider a box and sphere with the same mass. When released, the box slides down a frictionless ramp and off the table. The sphere rolls down the ramp without slipping and off the table. The table is 1.00 m tall. Which goes farther: the box or the sphere? Explain.
Homework Answers
Dear student,
Find this solution, and RATE IT ,If you find it is helpful .your rating is very important to me.If any incorrectness ,kindly let me know I will rectify them soon.
Thanks for asking ..
