A pendulum is set in motion. Consider what will happen to the frequency or period in...

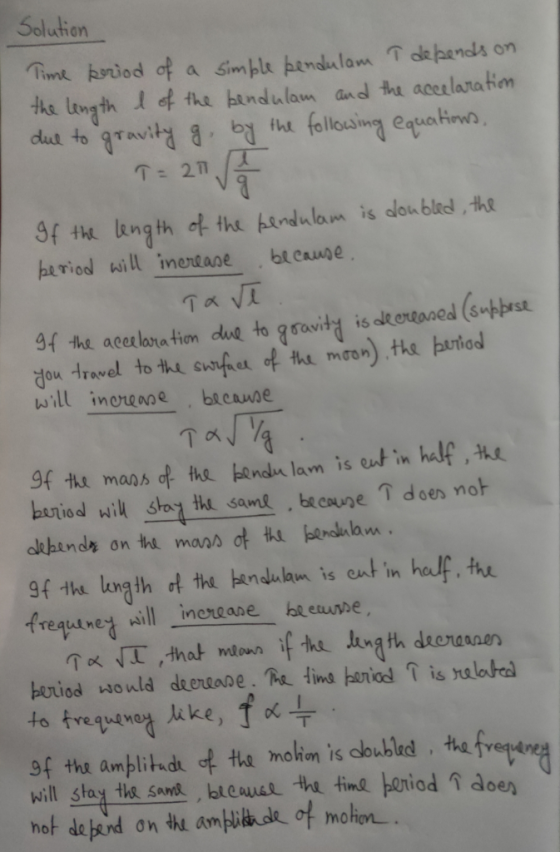

A pendulum is set in motion. Consider what will happen to the
frequency or period in each of the following situations.
Increase, Stay the same, or Decrease
If the length of the pendulum is doubled, the period will
_______.
If the acceleration due to gravity is decreased (suppose you travel
to the surface of the moon), the period will _______.
If the mass of the pendulum is cut in half, the period will
_______.
If the length of the pendulum is cut in half, the frequency will
_______.
If the amplitude of the motion is doubled, the frequency will
______.
Homework Answers
