Problem #4: A rigid, insulated tank containing 0.42 kg of air initially at 32 °C and...

Problem #4: A rigid, insulated tank containing 0.42 kg of air initially at 32 °C and 2 bar is fitted with a fine-wire electric resistor. A 12-volt battery provides a 5-amp current to the resistor for 50 min. a) Show evidence to confirm that the ideal gas model can be used. b) Determine the final temperature, in °C. (20 points) c) Determine the final pressure, in bar.

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

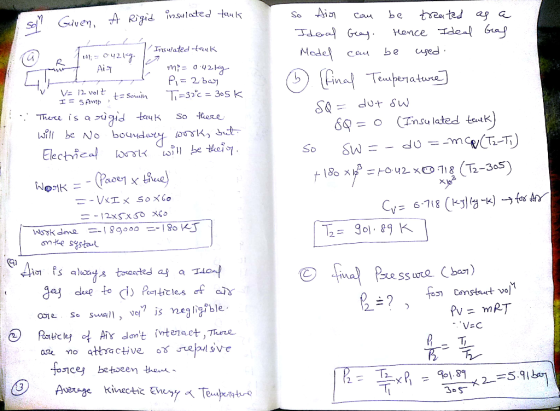

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Problem #4: A rigid, insulated tank containing 0.42 kg of air initially at 32 °C and...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Problem 6.028 SI Air contained in a rigid, insulated tank fitted with a paddle wheel, initially...

    Problem 6.028 SI Air contained in a rigid, insulated tank fitted with a paddle wheel, initially at 300 K, 2 bar, and a volume of 2 m, is stirred until its temperature is 600 K. Assuming the ideal gas model for the air, and ignoring kinetic and potential energy, determine (a) the final pressure, in bar (b) the work, in kJ (c) the amount of entropy produced, kJ/K Solve using: (1) data from Table A-22. (2) constant cy read from...

  • Problem 3 A rigid, insulated tank filled with 0.6 kg of air is initially at 2...

    Problem 3 A rigid, insulated tank filled with 0.6 kg of air is initially at 2 bar, 20°C. The air is stirred by a paddle wheel until its pressure is 2.5 bar. The volume specific heat (Cv) is constant with 0.72 kJ/KgK. Let To = 20°C, po = 1 bar ATTENTION: You are NOT allowed to use Table A-22 to find properties in this problem. Use the volume specific heat to find properties as needed. (a) Determine the final temperature...

  • Problem 3. (10 points) A closed and insulated rigid tank (perfectly insulated) is initially divided into...

    Problem 3. (10 points) A closed and insulated rigid tank (perfectly insulated) is initially divided into halves by a separator. On one side of the separator is 1 m of air at 300 K, 2 bar. On the other side is 1 m of air at 500 K, 1 bar. The separator is removed, and the air from the two sides mixes and reaches equilibrium state Please treat the air as ideal gas with cp-1.001 kJ/kg K and c0.714 kJ/kg...

  • A rigid copper tank, initially containing 1 m^3 of air at 295K, 5 bar, is connected...

    A rigid copper tank, initially containing 1 m^3 of air at 295K, 5 bar, is connected by a valve to a large supply line carrying air at 295K, 15 bar. The valve is opened only as long as required to fill the tank with air to a pressure of 15 bar. Finally, the air in the tank is at 310 K. The copper tank, which has a mass of 20 kg, is at the same temperature as the air in...

  • A rigid tank whose volume is 3 m3, initially containing air at 1 bar, 295 K,...

    A rigid tank whose volume is 3 m3, initially containing air at 1 bar, 295 K, is connected by a valve to a large vessel holding air at 6 bar, 295 K. The valve is opened only as long as required to fill the tank with air to a pressure of 6 bar and a temperature of 320 K. Assuming the ideal gas model for the air determine the heat transfer between the tank contents and the surroundings, in kl....

  • Question 20 A rigid, well Insulated tank of volume 0.9 m3 is initially evacuated. At timet,...

    Question 20 A rigid, well Insulated tank of volume 0.9 m3 is initially evacuated. At timet, air from the surroundings at a pressure of 1 bar and temperature of 27 begins to flow into the tank, An electric resistor transfers energy to the air in the tank at a rate of 676 Watts. Determine the time required for the temperature of air inside the tank to reach 457 C at the same Initial pressure of 1 bar. Note: Please upload...

  • A closed, rigid tank fitted with a paddle wheel contains 1.6 kg of air, initially at...

    A closed, rigid tank fitted with a paddle wheel contains 1.6 kg of air, initially at 200oC, 1 bar. During an interval of 10 minutes, the paddle wheel transfers energy to the air at a rate of 1 kW. During this time interval, the air also receives energy by heat transfer at a rate of 0.5 kW. These are the only energy transfers. Assume the ideal gas model for the air, and no overall changes in kinetic or potential energy....

  • well insulated tank fitted with an electrical resistor of negligible mass holds 2 kg of nirtogen...

    well insulated tank fitted with an electrical resistor of negligible mass holds 2 kg of nirtogen (N2) initially at 300 K, 1 bar. over a period of 10 minutes, electricity is provided to the resistor at a constant voltage of 120 volts and with a constant current of 1 ampere. assuming ideal gas behavior, determine the nirtogen's final temperature, in K, and the final pressure, in bar.

  • Help please! A volume of 7.16 m 3 of air in a rigid, insulated container fitted...

    Help please! A volume of 7.16 m 3 of air in a rigid, insulated container fitted with a paddle wheel is initially at 347 K, 3.6 bar. The air receives 539 kJ by work from the paddle wheel. Assuming the ideal gas model with c v = 0.66 kJ/kg • K, determine for the air: a) The amount of entropy produced, in J/K, and The final temperature in Kelvin

  • An insulated rigid tank is divided into two equal parts by a partition. Initially, one part...

    An insulated rigid tank is divided into two equal parts by a partition. Initially, one part contains 15 kg of water vapor with steam quality 20% at 20 bar and the other part is evacuated. The partition is removed, and the water vapor expands into the entire tank.a) Determine the final temperature and pressure using higher accuracy calculation. b) Recalculate (a) by assuming the gas behave as ideal gas
