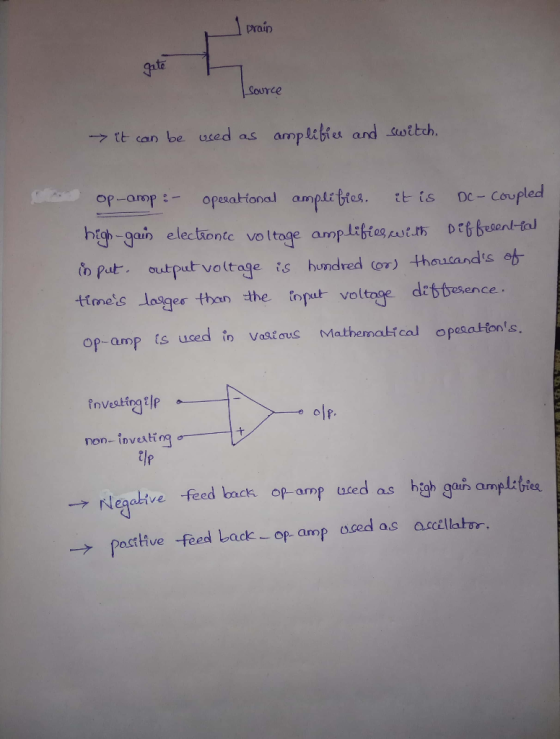

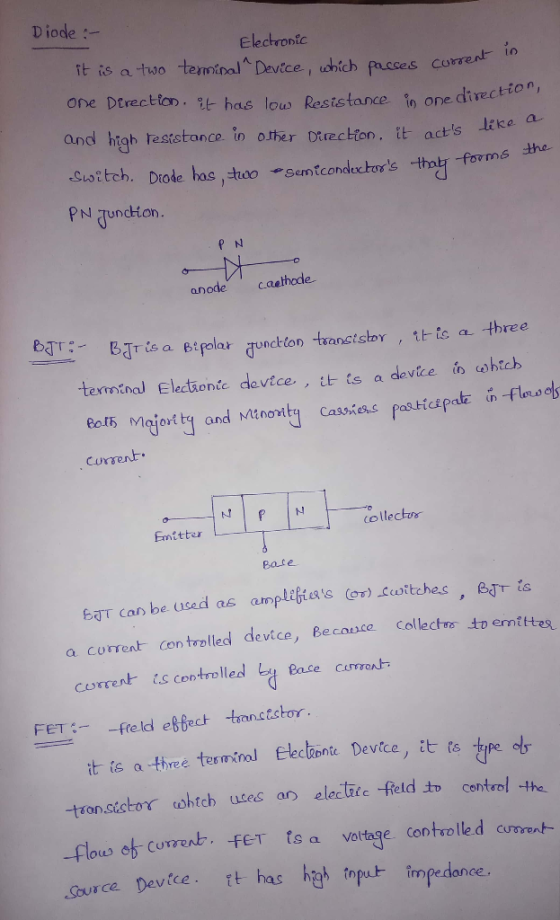

explain briefly about diode, BJT, FET, and Op-Amp

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Aufilo polasi For the op amp shown below, the output saturation voltages of the op amp...

Aufilo polasi For the op amp shown below, the output saturation voltages of the op amp shown below is t 10 volts. In addition, assume that conducting 6. ( 16 points) the a conducting diode has a voltage drop of 0.7 volts. Furthermore, R- R-10 KQ (a) Ir v1.SV, find and v (b) If v, =-2.5 V, find Vo and va
Which of the following is(are) false about positive feedback in an Op-Amp circuit? Group of answer...

Which of the following is(are) false about positive feedback in an Op-Amp circuit? Group of answer choices A positive feedback path applies part of the output to the positive input on an Op-Amp. A positive feedback path applies part of the output to the negative input on an Op-Amp. A positive feedback path applies part of the output to the differential input on an Op-Amp. Positive feedback isn't used with Op-Amp circuits
Does an Op-Amp amplify current or voltage? 1. Can you use an Op-Amp as a buffer?...

Does an Op-Amp amplify current or voltage? 1. Can you use an Op-Amp as a buffer? If so, How? Why should you care about the device bandwidth rating? What is the most common Op Amp chip? 2. 3. 4. What is an 'active' component? Is an Op Amp an active or a passive component? What is the advantage of an active vs. passive filter? 5. 6.

We used 741 op-amps to design inverting and non-inverting op-amp configurations. What is/are the difference(s) between...

We used 741 op-amps to design inverting and non-inverting op-amp configurations. What is/are the difference(s) between inverting and non-inverting op-amp configurations? What are other types of op amp configurations? Please briefly describe each type and at least one advantage and/or application.
Al List two non-ideal characteristics of BJT and briefly explain their relationship in the shape of...

Al List two non-ideal characteristics of BJT and briefly explain their relationship in the shape of the curve of common-emitter current gain (BF) versus Ic (10 points) B) Explain the punchthrough voltage of a BJT and list & possible way to increase the punchthrough voltage of a BJT. (5 points)
List an application of an inverting op-amp circuit, the advantages of the inverting op-amp configuration, and...

List an application of an inverting op-amp circuit, the advantages of the inverting op-amp configuration, and why you would use an inverting op-amp as opposed to other configurations.

5. Op amps can enhance the performance of diode circuits (assume that the op-amps are ideal.)....

5. Op amps can enhance the performance of diode circuits (assume that the op-amps are ideal.). a) (Ipts) An input signal with Vpp =10V and frequency =500Hz is injected into the following circuit given. Determine the output voltage. reset En b) (2pts) When the capacitor is replaced with al0k resistor, draw the output signal (Don't forget to indicate your various scale.). c) (2pts) A diode junction acts as a photodetector: Light creates electron-hole pairs, and therefore a current through the...
List an application of an op-amp comparator configuration, the advantages and disadvantages of the op-amp comparator...

List an application of an op-amp comparator configuration, the advantages and disadvantages of the op-amp comparator configuration, and why you would use an op-amp comparator rather than another device.
select the best answer: (TCO 2) Coupling capacitors are used in ______. BJT circuits FET circuits...

select the best answer: (TCO 2) Coupling capacitors are used in ______. BJT circuits FET circuits audio amps All of the above

Typed please. List an application of an inverting op-amp circuit, the advantages of the inverting op-amp...

Typed please. List an application of an inverting op-amp circuit, the advantages of the inverting op-amp configuration, and why you would use an inverting op-amp as opposed to other configurations.
