Given LTI system with following input response (can use properties of the Fourier transform like, sinc(x)...
Given LTI system with following input response (can use properties of the Fourier transform like, sinc(x) = sin(πx)/πx ):

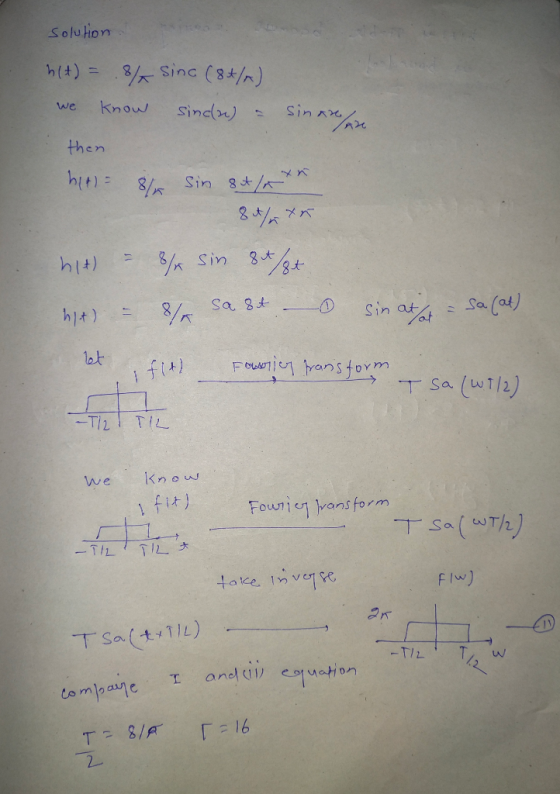

h(t) = 8/π sinc(8t/π)
where input x(t) of the LTI system is the following continuous-time signal
x(t) = cos(t) cos(8t)

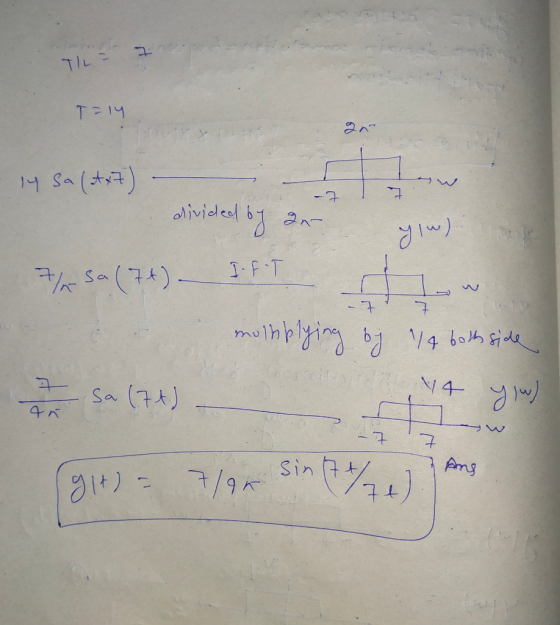

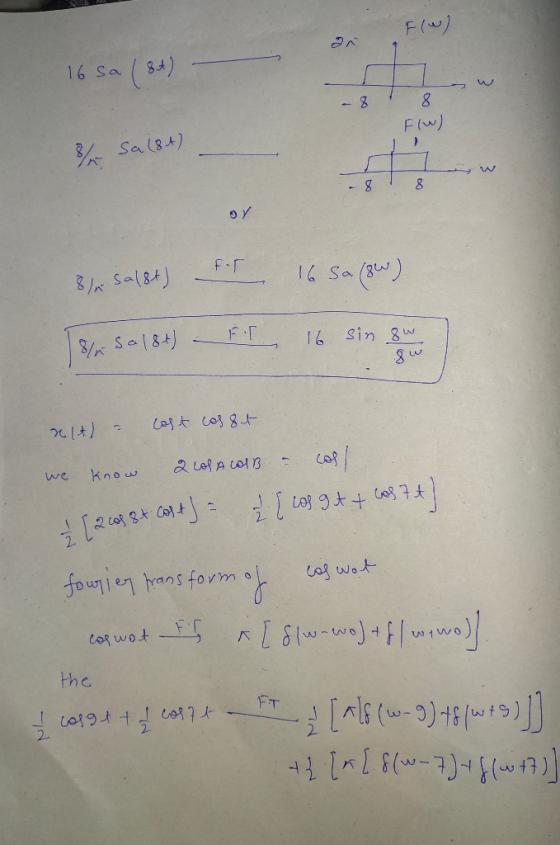

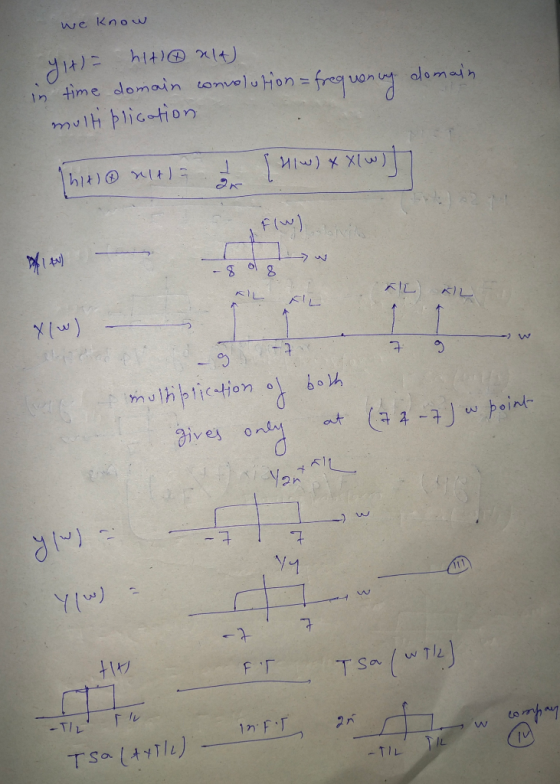

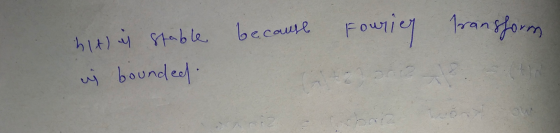

find the Fourier transform of h(t). Is this LTI system BIBO stable? Find output y(t)
Homework Answers
