How can i calculate a SPHERE's three components of gravitational attraction at a single point due...
How can i calculate a SPHERE's three components of gravitational attraction at a single point due to a uniform sphere?
Imagine a CYLINDER. How can I calculate x and z components of
gravitational attraction due to cylinder lying parallel to y
axis?
I need the explanation with formula, and Matlab code (if it's
possible.)
Homework Answers

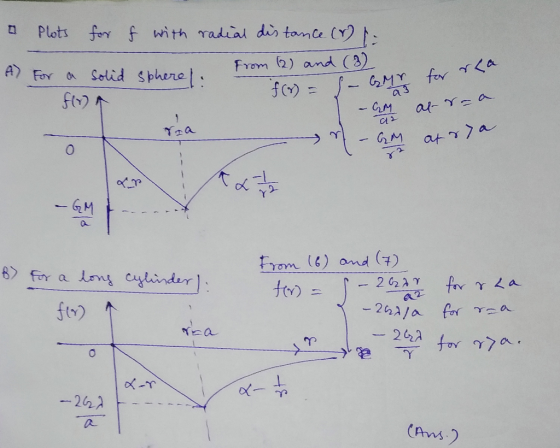

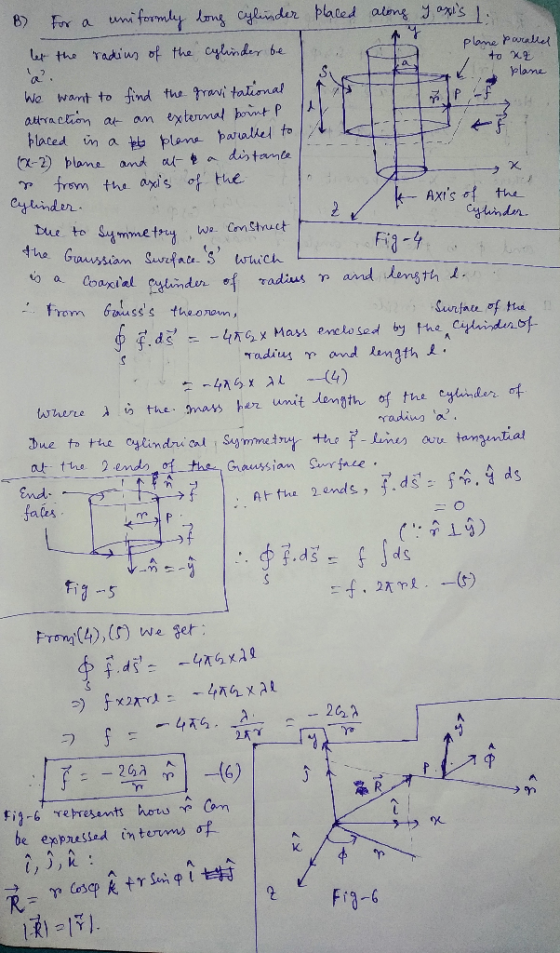

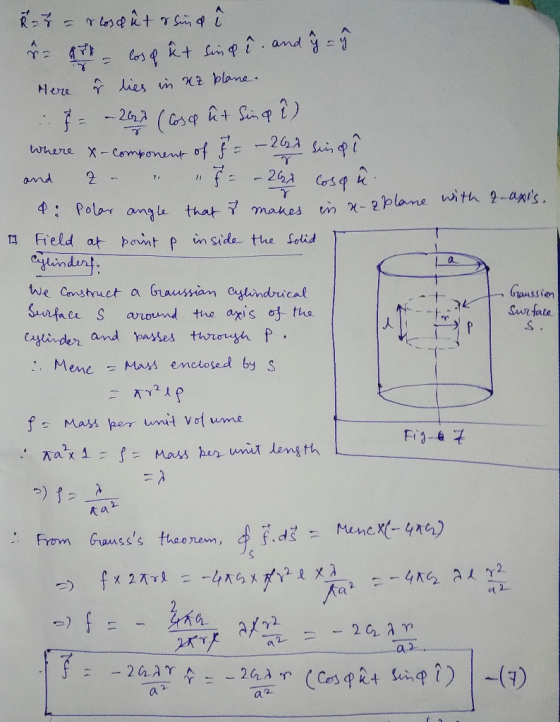

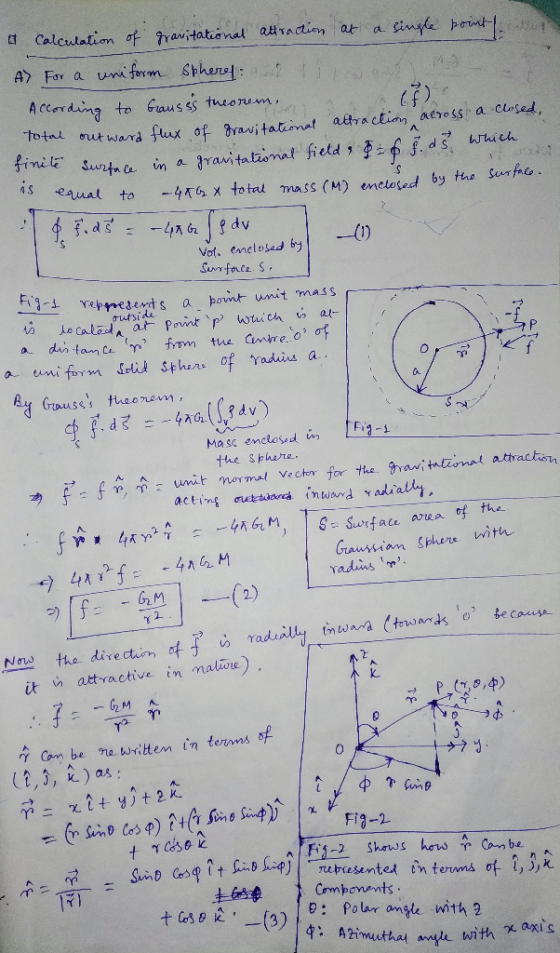

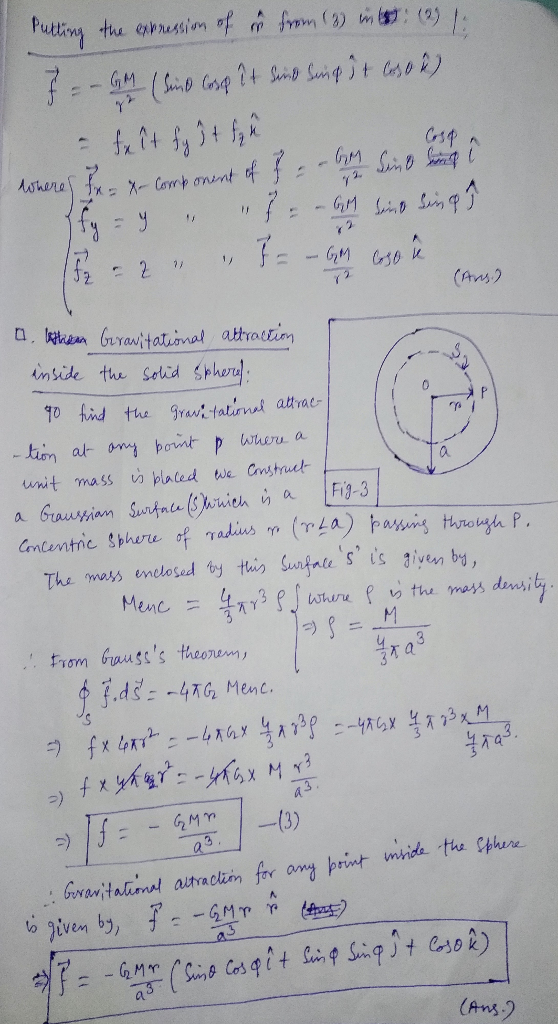

Please see the solutions
attached below and I am not familiar with MATLAB:Add Answer to:
How can i calculate a SPHERE's three components of gravitational
attraction at a single point due...
